Rectangular metal enclosure with front display, cooling vents and wiring terminals, shown on white background

VEVOR

VEVOR Hybrid Solar Inverter 3000W 24V 100A MPPT

SKU CH-NVPM-QF4C1

Combines a 3000 W pure sine wave inverter with a 100 A MPPT controller for 24 V off-grid systems

  • TypeOther Appliances
  • Width15.35
  • 3000W pure sine wave output powers sensitive electronics
  • 100A MPPT controller converts solar energy at 90% efficiency
  • 10ms UPS response keeps critical loads running during outages
  • Supports lead-acid, lithium and LiFePO4 24V battery banks
  • Compact 14.4 x 12.2 x 4.2 in design fits tight spaces

Off-Grid 3000W Pure Sine Wave Inverter

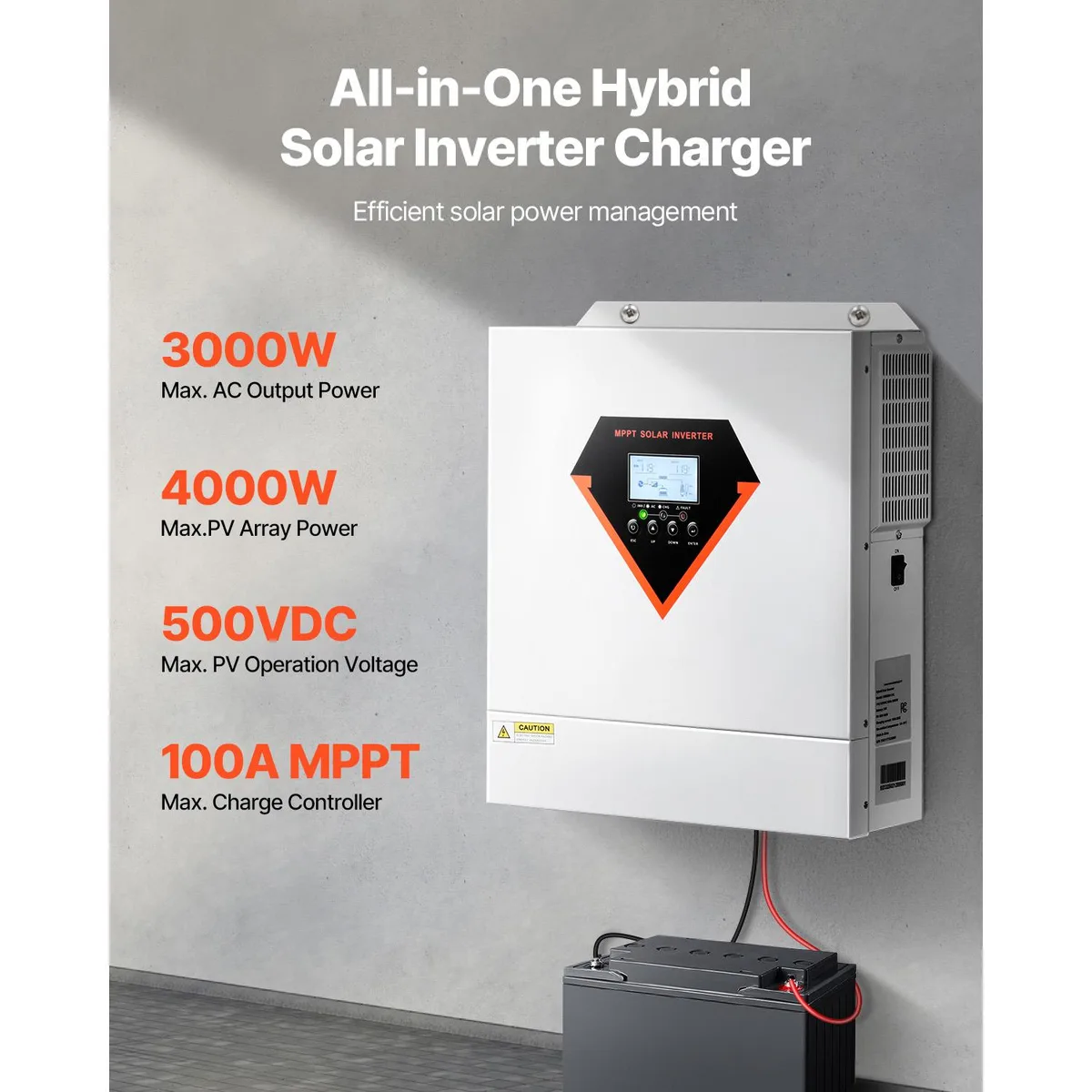

This hybrid unit combines a 3000W pure sine wave inverter with a built-in 100A MPPT solar charge controller in a single enclosure. It converts 24V DC battery power to 110/120V AC output for off-grid photovoltaic systems. The integrated design reduces wiring complexity for remote cabins, RVs, or backup power installations.

Replaces Separate Inverter and Controller

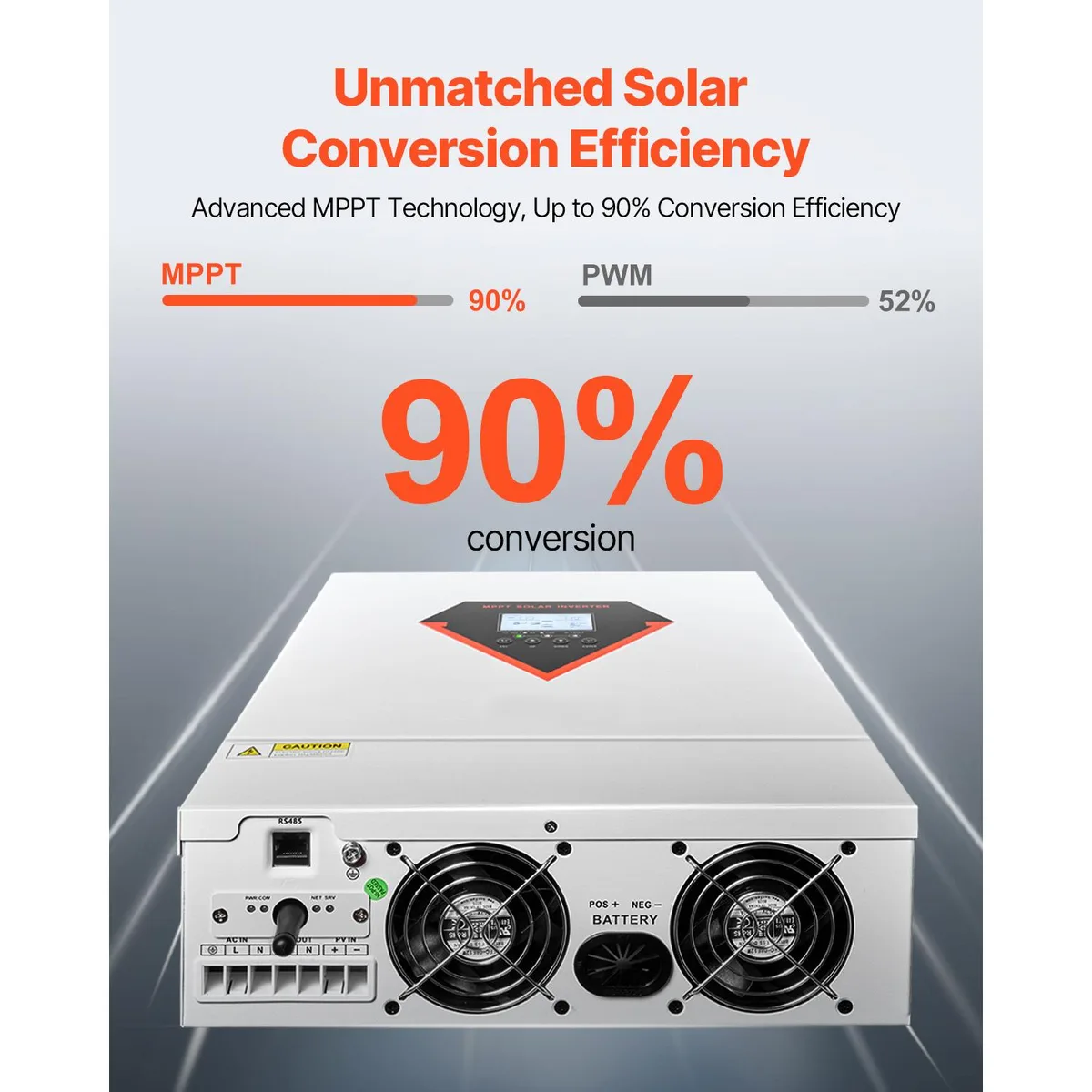

The all-in-one architecture replaces a standalone inverter plus an external charge controller, saving space and simplifying installation. The jump is worthwhile when building a new 24V off-grid system or consolidating existing components. It supports up to 4000W of PV input with a 60-500V DC MPPT voltage range and achieves 90% solar conversion efficiency.

Verify 24V Battery Bank and PV Voltage

Confirm your battery bank is a 24V configuration using lead-acid, lithium, or LiFePO4 chemistry before ordering. Ensure your solar array open-circuit voltage stays within the 60-500V DC MPPT window. Check that the 14.4 x 12.2 x 4.2 inch footprint and 15.1 lb weight suit your mounting location and that 40W no-load draw is acceptable for your usage pattern.

Highlights

  • 3000W pure sine wave output powers sensitive electronics
  • 100A MPPT controller converts solar energy at 90% efficiency
  • 10ms UPS response keeps critical loads running during outages
  • Supports lead-acid, lithium and LiFePO4 24V battery banks
  • Compact 14.4 x 12.2 x 4.2 in design fits tight spaces

Specifications

TypeOther Appliances
Width15.35

Questions about this item

What are the exact mounting dimensions for the 368 × 325 × 105 mm inverter chassis?

The unit measures 368 mm wide, 325 mm deep and 105 mm high. Allow clearance for the WiFi antenna and cable glands on the sides and bottom.

Which wiring step is most often missed when commissioning the 100 A MPPT controller?

Installers frequently forget to fit a DC disconnect between the PV array and the 60–500 VDC MPPT input before energising the 4000 W solar circuit.

How often should the 40 W no-load consumption be verified on a 24 V battery bank?

Check the idle draw quarterly; a rise above 40 W indicates ageing capacitors or fan bearing wear that will require service.
