Blue benchtop plate shear with long handle and painted steel frame

VEVOR

VEVOR HS-5 5" Manual Plate Shear Blue

SKU CH-D4XJ-FM5DT

A benchtop manual shear cuts steel plate up to 0.24" thick and round bar up to 0.43" using T10 blades hardened beyond 52 HRC

  • TypeOther Appliances
  • Width6.69
  • Cuts steel plates up to 4.33" long and 0.24" thick
  • Hardened T10 blades over 52 HRC handle low-carbon and galvanised steel
  • Blade gap under 0.0027" gives burr-free edges on every cut
  • 74" handle provides strong leverage for manual shearing
  • Q235 frame with painted blue finish weighs 22.5 lbs for benchtop stability

Manual Plate Shear for Metal Fabrication

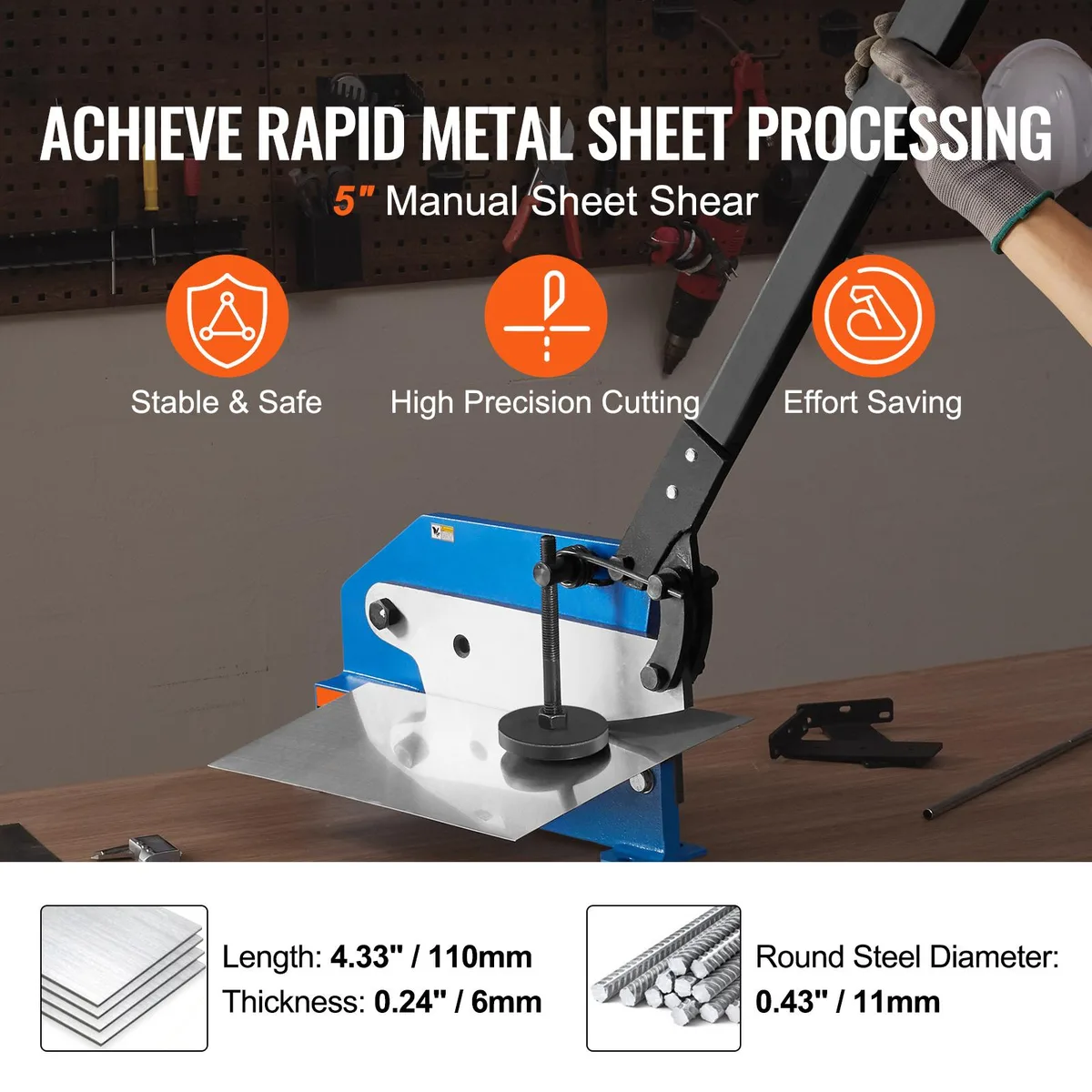

The VEVOR HS-5 is a benchtop cutting tool built for builders and DIY enthusiasts who need to process steel plates, flat bar and round rod in a workshop or job-site setting. It handles low-carbon steel, aluminium and coated sheet up to 4.33 inches long and 0.24 inches thick.

Benchtop Mounting and Workspace Impact

The unit bolts to a table through two M12 by 40 fasteners and occupies a footprint of 9.4 by 3.9 inches with a 24.8-inch height. A 15.74-inch handle provides leverage while the fixed base keeps the shear stable during each cut, freeing floor space compared with larger floor-standing presses.

Sustained Cutting Behaviour

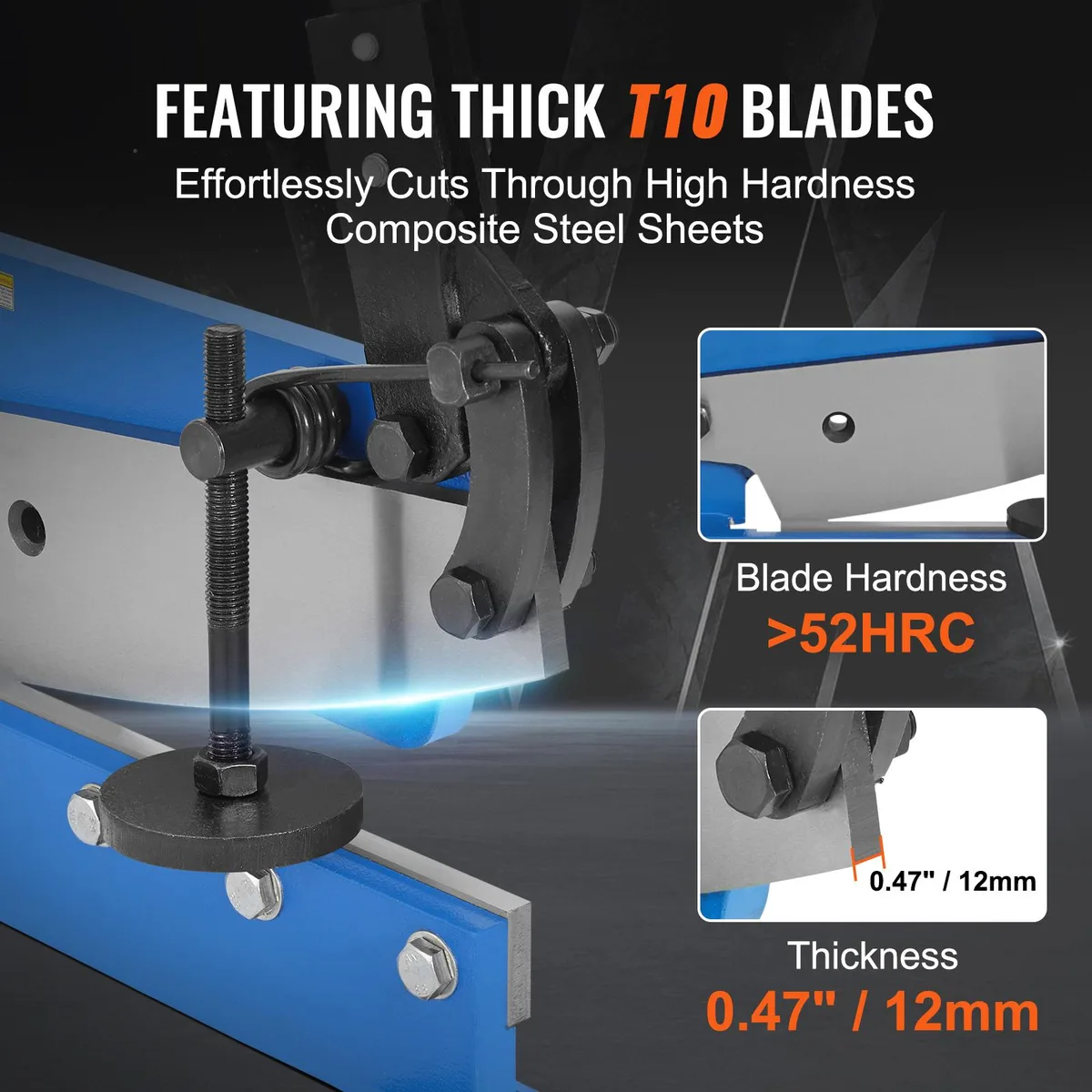

T10 steel blades hardened beyond 52 HRC maintain a 0.0027-inch gap that passes a paper-cut test and yields burr-free edges on 6-millimetre Q235 strip rated at 235 MPa tensile strength. The 0.47-inch blade thickness resists deflection during repetitive shearing of 11-millimetre round steel, so cut quality stays consistent over long sessions.

Highlights

  • Cuts steel plates up to 4.33" long and 0.24" thick
  • Hardened T10 blades over 52 HRC handle low-carbon and galvanised steel
  • Blade gap under 0.0027" gives burr-free edges on every cut
  • 74" handle provides strong leverage for manual shearing
  • Q235 frame with painted blue finish weighs 22.5 lbs for benchtop stability

Specifications

TypeOther Appliances
Width6.69

Questions about this item

How thick a steel plate can the HS-5 shear before the blade gap becomes the limiting factor?

The maximum shearing plate thickness is 0.24 inches or 6 mm, and the blade gap is set to less than 0.0027 inches for burr-free edges.

What noise level and heat output should I expect when running the HS-5 continuously all day?

The HS-5 is a manual benchtop shear with no motor, so it produces no electrical noise or heat; only the sound of the handle lever and blade contact occurs.

What mounting hardware and surface must I already have to bolt the HS-5 down securely?

You need a sturdy benchtop and two M12×40 bolts with 12 mm flat washers, which are included, to fix the shear in place.
