Adjustable iron gate frame kit with latch lock and screws, fits 40 to 72 inch openings

VEVOR

VEVOR Gate Building Kit AA70000304 Iron 40-72in Adjustable Frame with Latch Lock

SKU CH-KQHH-SQM7W

Adjustable iron gate frame kit spans 40 to 72 inches wide and includes latch lock, hinges and all mounting screws

  • TypeOther Appliances
  • Width7.28
  • Adjustable width fits openings from 40 to 72 inches

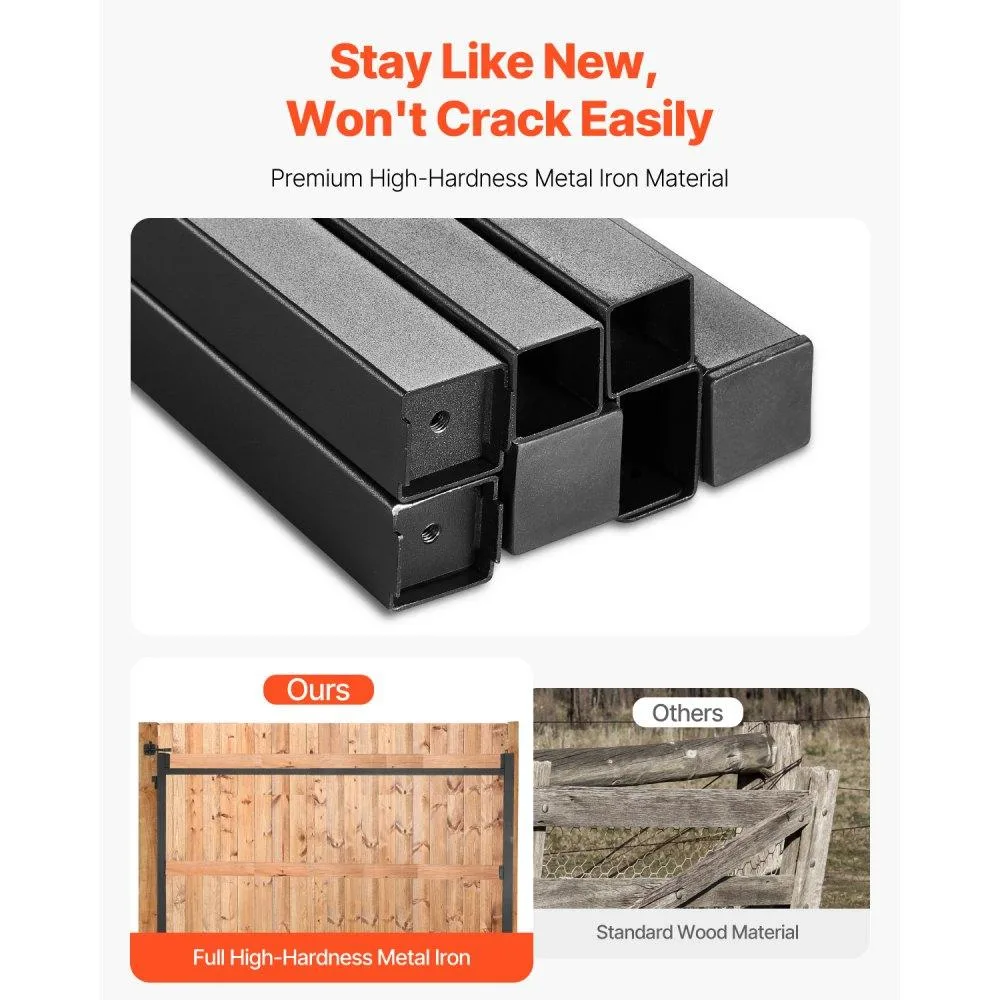

  • Iron frame construction provides strength for wooden fence gates
  • Anti-sag design keeps the gate aligned over time
  • Latch lock with pull rope secures the entrance
  • Complete hardware kit includes hinges, screws and Allen wrench

Adjustable Iron Gate Frame Kit 40-72 in

The VEVOR gate building kit is an adjustable iron frame designed for wooden fence openings between 40 and 72 inches wide. It suits property owners who need a custom-fit gate up to five feet high without welding. The kit includes the full frame, a latch lock with pull rope, two hinges, and all required fasteners. Buyers who need a gate wider than 72 inches or a non-iron finish cannot use this kit.

Simple Bolt-Together Assembly With Supplied Hardware

Installation uses the included Allen wrench and three screw sizes: M5×65 round-head, M6×50 and M6×40 countersunk, plus shorter M5 screws for the latch and hinges. The frame adjusts telescopically to the opening width, then locks in place with the provided bolts. Misalignment during tightening is the common issue; checking square at each step prevents a gate that binds or sags later.

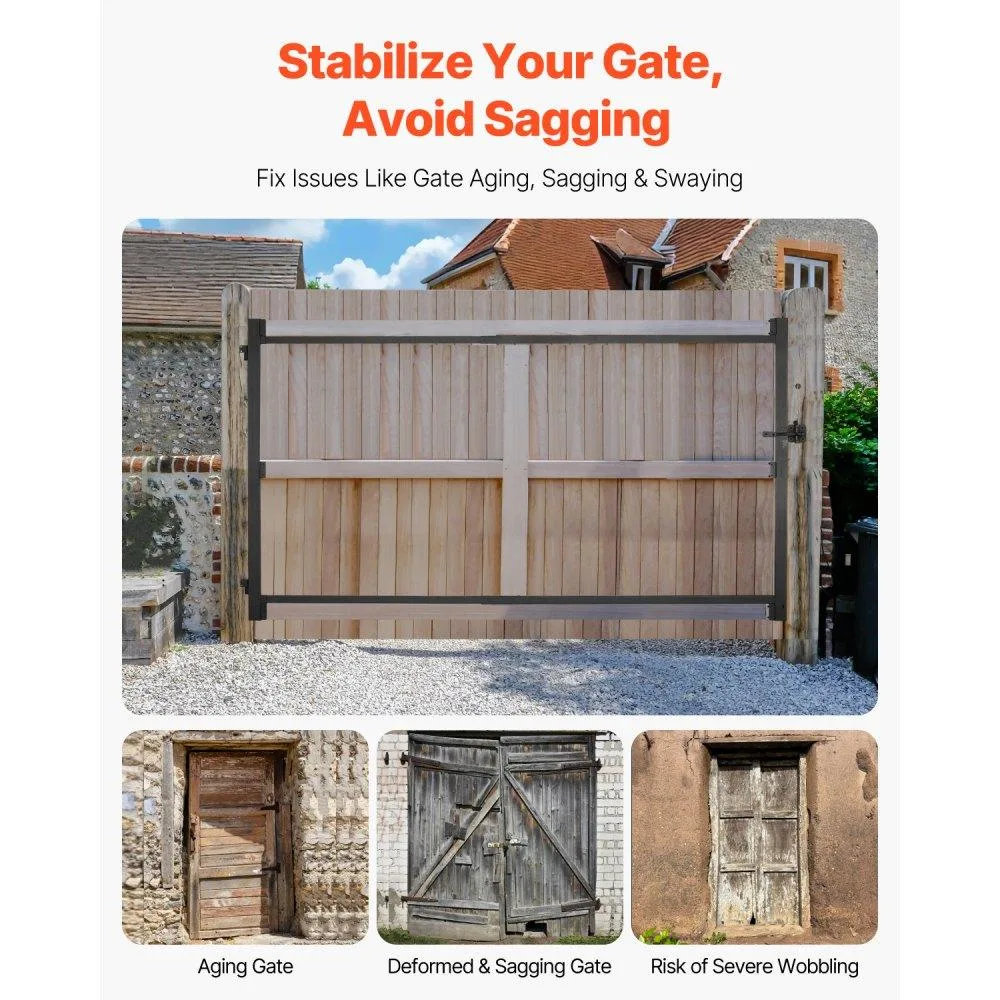

Rigid Iron Construction Resists Long-Term Sag

The 2.24 in thick iron frame weighs 23.14 lbs and spans up to 72.01 in, giving inherent stiffness that counters the downward pull of daily use. The anti-sag geometry transfers load into the hinge posts rather than the mid-span. Under sustained load the latch mechanism and pull rope see repeated tension; lubricating the lock seat seasonally keeps operation smooth.

Highlights

  • Adjustable width fits openings from 40 to 72 inches
  • Iron frame construction provides strength for wooden fence gates
  • Anti-sag design keeps the gate aligned over time
  • Latch lock with pull rope secures the entrance
  • Complete hardware kit includes hinges, screws and Allen wrench

Specifications

TypeOther Appliances
Width7.28

Questions about this item

How do I confirm the AA70000304 gate frame is square and anti-sag after assembly?

Measure diagonals across the 40-72.01 in adjustable width; equal diagonals mean it is square. The iron frame with included hinges and latch lock should hold the 47.01 in height without sag when the 23.14 lb kit is fully fastened.

What hardware comes in the box and what must I supply for a wooden fence?

The box includes the gate frame, latch lock with seat, plug and pull rope, two hinges, 16 M5x65 screws, four M6x50 screws, four M6x40 screws, two M5x10 screws, four M5x30 screws, 24 M5x20 screws and one S4x60 Allen wrench. You must supply wood screws or lag bolts to mount hinges and latch to the fence posts.

Which opening width should I choose between 40 and 72 inches for my fence?

Measure the clear distance between your fence posts. The AA70000304 adjusts continuously from 40 in to 72.01 in, so select the kit if your opening falls anywhere in that range; the 2.24 in frame depth and 47.01 in height stay constant.
