VEVOR
VEVOR Frost Proof Yard Hydrant 4.2FT 24" Bury Depth 3/4" NPT 3/4" NH
A freeze-proof yard hydrant with 24" bury depth, 3/4" NPT inlet, 3/4" NH hose outlet and a bypass valve that drains residual water to prevent freezing
- Frost-proof operation down to 24 in bury depth prevents pipe freezing
- Bypass valve drains residual water automatically for year-round flow

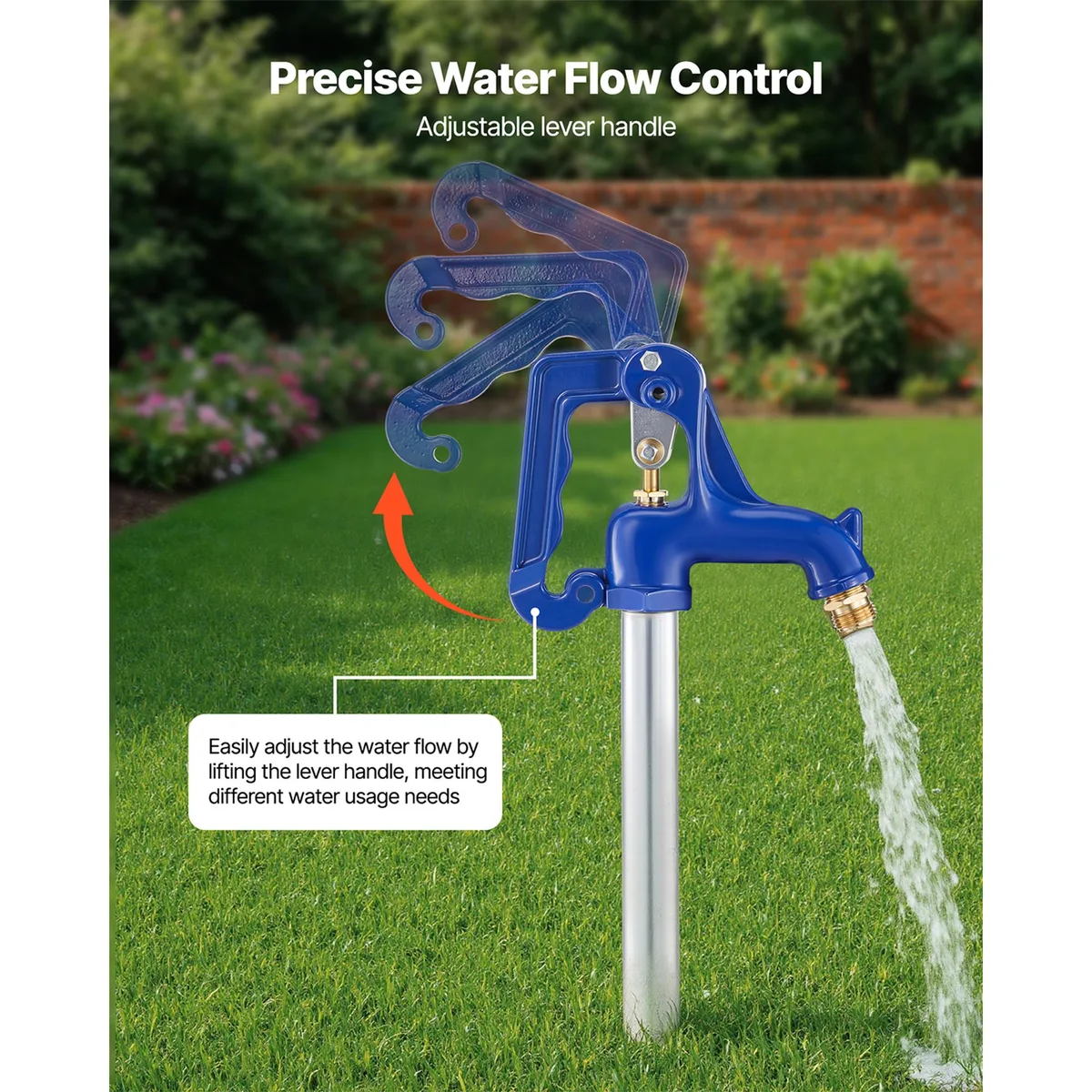

- Adjustable lever handle controls output from gentle spray to strong stream
- 3/4 in NPT inlet and 3/4 in NH outlet with two O-rings enable leak-free setup

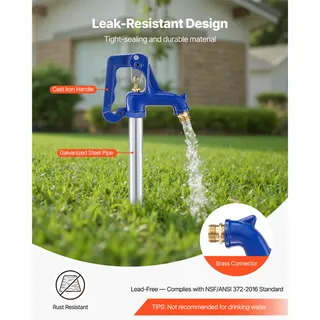

- Cast iron, steel pipe and brass construction weighs 10.80 lbs for durability
Frost-Proof Yard Hydrant, 4.2FT Overall Length
The VEVOR frost-proof yard hydrant is a new industrial faucet built for outdoor water supply in cold climates. Its 4.2FT overall length and 24" bury depth place the valve below the frost line to protect pipes from freezing. The unit suits garden watering, car washing, farm irrigation and lawn care, though it is not recommended for drinking water. A lever handle gives adjustable flow control for tasks ranging from gentle watering to powerful wash streams.
24-Inch Bury Depth and Bypass Valve Drainage
The 24-inch bury depth provides the headroom needed to keep the internal valve below typical frost lines in many regions. An integrated bypass valve drains residual water through a bottom hole when the hydrant is shut off, preventing water buildup and freezing inside the pipe. This design maintains an uninterrupted supply during freezing weather but offers no protection if the bury depth is insufficient for local frost conditions or if the drain hole becomes blocked by debris.
3/4" NPT Inlet and 3/4" NH Hose Coupling
The single specification that decides fit is the combination of a 3/4" NPT pipe connection at the inlet and a 3/4" NH hose coupling at the outlet. Installation requires matching NPT threads on the supply line and NH threads on the hose or accessory. The package includes two O-Rings and a screw rod for sealing and assembly. Builders whose plumbing uses different thread standards or sizes will need adapters or a different hydrant model.
Highlights
- Frost-proof operation down to 24 in bury depth prevents pipe freezing
- Bypass valve drains residual water automatically for year-round flow
- Adjustable lever handle controls output from gentle spray to strong stream
- 3/4 in NPT inlet and 3/4 in NH outlet with two O-rings enable leak-free setup
- Cast iron, steel pipe and brass construction weighs 10.80 lbs for durability
Specifications
No published specifications for this item yet.
Questions about this item
Will the 3/4" NPT inlet thread onto my existing galvanised supply line?
Yes, the hydrant has a 3/4" NPT inlet connection that matches standard galvanised or copper supply piping.
How do I verify the bypass valve is draining water after I shut the lever handle?
After closing the handle, check the small drain hole near the base; a brief trickle confirms the valve is evacuating residual water.
Which parts come in the box and what must I supply?
The package includes the hydrant body, two O-rings, a screw rod and a user manual; you must provide 3/4" NPT pipe fittings, thread sealant and a 3/4" NH hose.
