Gray steel electrical enclosure 30×20×15 cm with hinged lockable door and galvanized backplate

VEVOR

VEVOR Electrical Box 12×8×6 NEMA 4X IP66 with Mounting Plate

SKU CH-JDRF-RDT5S

A 12×8×6 inch steel enclosure rated IP66 and NEMA 4X with a detachable galvanised mounting plate for indoor or outdoor electrical component protection

  • TypeOther Appliances
  • IP66 and NEMA 4X rating blocks water and dust ingress
  • 5 mm cold-rolled steel with epoxy-polyester coating resists corrosion
  • Detachable 2 mm galvanised backplate simplifies component mounting
  • Reinforced hinge and lockable latch secure the enclosure door
  • 7 × 7.8 × 4.6 cm inner space fits standard electrical gear

Steel Electrical Box 12×8×6 NEMA 4X IP66

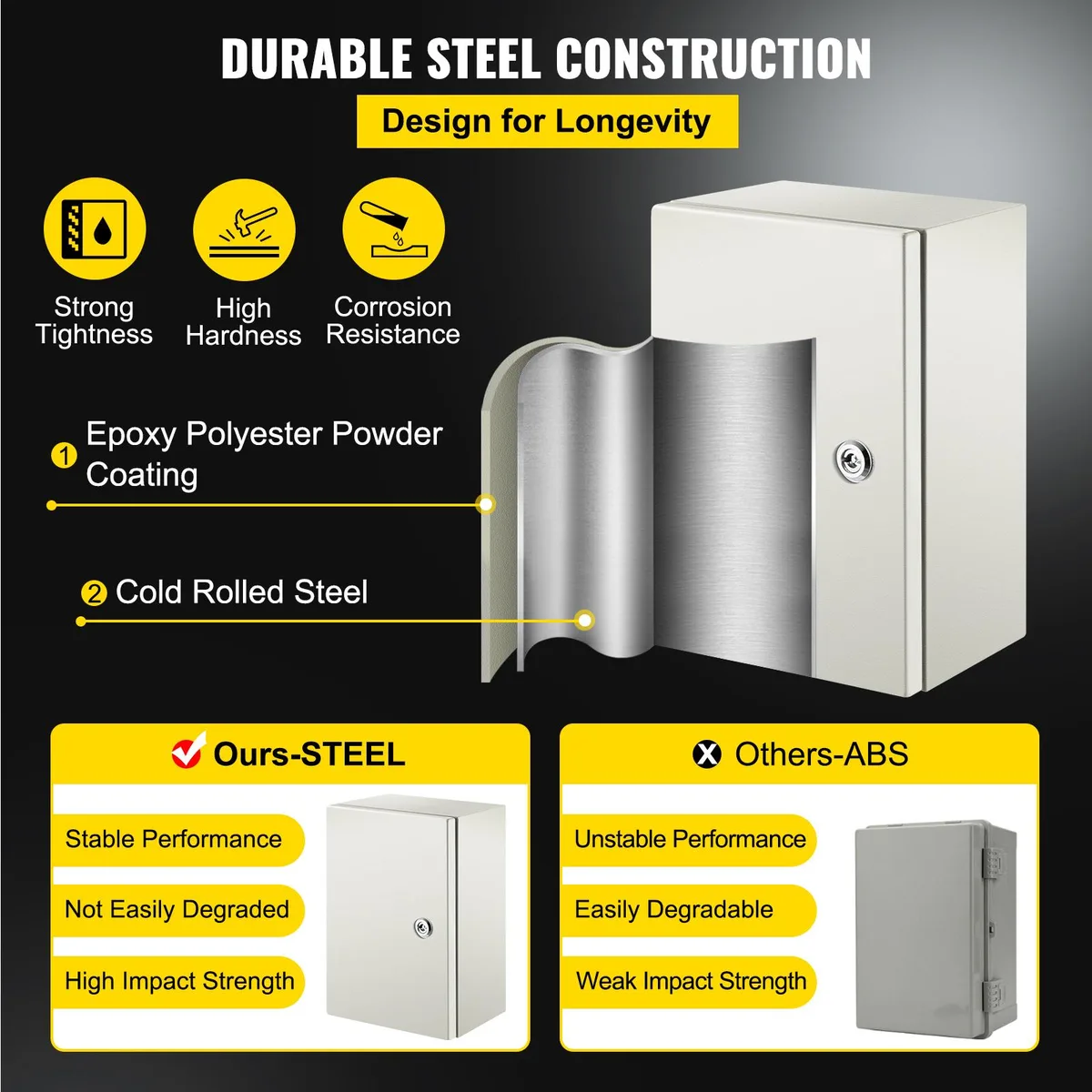

This wall-mounted enclosure is built from 1.5 mm cold-rolled steel with an epoxy polyester powder coating in RAL7035 grey white. It carries CE and ROHS certification and meets NEMA 1, 2, 4, 4X and 12 specifications alongside an IP66 rating. The hinged, lockable cover uses a foam sealing strip to keep water and dust out when closed. It suits indoor or outdoor installations where components need robust protection.

Check Mounting Space And Cable Entry Before Ordering

The outer dimensions are 30 x 20 x 15 cm while the inner cavity measures 29.7 x 19.7 x 11.65 cm. Verify that your mounting surface can accommodate the footprint and that the 4.6 cm usable depth fits your devices. The package includes a set of wall mounting pendants and a bottom sealing plate; confirm these match your preferred fixing method. The detachable 2 mm galvanised backplate measures 25 x 15 cm for component layout.

Upgrade From Non-Rated Or Lower IP Enclosures

This unit replaces basic junction boxes that lack a certified seal or a lockable hinged door. The step up is worth it when the installation faces wash-down, blowing dust or outdoor exposure and when regulatory compliance requires NEMA 4X or IP66. It is not for buyers who need a larger internal volume, a different material such as polycarbonate, or a windowed cover for visual inspection.

Highlights

  • IP66 and NEMA 4X rating blocks water and dust ingress
  • 5 mm cold-rolled steel with epoxy-polyester coating resists corrosion
  • Detachable 2 mm galvanised backplate simplifies component mounting
  • Reinforced hinge and lockable latch secure the enclosure door
  • 7 × 7.8 × 4.6 cm inner space fits standard electrical gear

Specifications

TypeOther Appliances

Questions about this item

What is included in the package and do I need to buy a mounting plate separately?

The package contains the electrical box, two keys, a detachable galvanized mounting plate already assembled inside, a set of wall mounting pendants and a bottom sealing plate. No separate mounting plate is required.

Which size should I choose for my installation space?

The enclosure measures 30 x 20 x 15 cm externally and 29.7 x 19.7 x 11.65 cm internally. The galvanized backplate is 25 x 15 cm. Choose this model if those dimensions fit your available space and component layout.

What does the IP66 rating mean when the box is mounted outdoors?

IP66 means the enclosure is dust-tight and protected against powerful water jets from any direction. The foam sealing strip maintains this protection even when the hinged cover is opened, making it suitable for factories, construction sites and outdoor residential areas.
