Black rectangular air compressor kit with control panel, tubing, wiring and mounting hardware

VEVOR

VEVOR D0836002 12V 100PSI Air Shock Controller Kit Single Path

SKU CH-XWWM-21QRG

12V on-board air compressor kit inflates shocks to 100 PSI with single-path control and includes remote relay, 6m tubing, wiring and mounting hardware

  • TypeOther Appliances
  • Width11.81
  • 12 V DC power runs from vehicle battery
  • 100 PSI maximum pressure inflates air springs
  • 110 W rated motor drives on-board compressor
  • Single-path design controls one air circuit
  • Kit includes compressor, controller, tubing and wiring

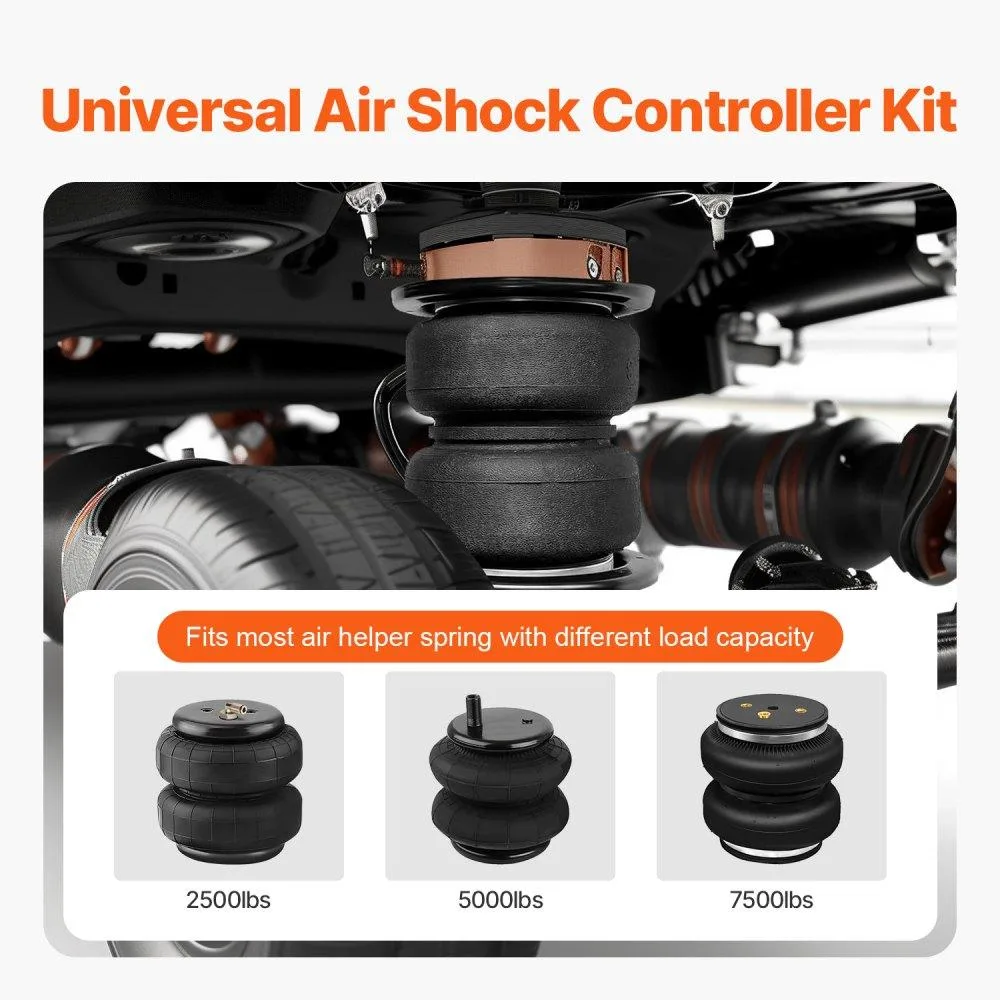

Single-path air suspension kit

The VEVOR D0836002 kit provides a single-path on-board air compressor system for vehicles that need adjustable ride height. It runs from a 12 V electrical supply and delivers up to 100 PSI of pressure. The package includes the compressor, control panel, remote relay, wiring, tubing and mounting hardware for a complete installation.

Compact assembly with supplied hardware

The compressor assembly measures 6.14 x 2.05 x 4.69 in and weighs 4.5 lb, allowing it to fit in tight chassis locations. Four self-tapping screws with washers, six flanged hex bolts and a 20 A fuse wire are provided for secure mounting and circuit protection. Nylon cable ties, wire connectors and terminal blocks keep the 1.5 mm diameter power leads and 6 m PA tubing neatly routed.

110 W draw at rated output

At its 110 W rated power the unit draws moderate current from the vehicle’s 12 V system while building pressure. The single-path design feeds one air circuit, so the compressor cycles only when that circuit demands pressure, limiting run time and audible noise during normal driving.

Highlights

  • 12 V DC power runs from vehicle battery
  • 100 PSI maximum pressure inflates air springs
  • 110 W rated motor drives on-board compressor
  • Single-path design controls one air circuit
  • Kit includes compressor, controller, tubing and wiring

Specifications

TypeOther Appliances
Width11.81

Questions about this item

What voltage does the 12V 100PSI compressor system operate on?

The kit runs on a DC12V supply and draws 110W rated power, so it connects directly to a 12-volt vehicle electrical system.

What are the exact dimensions of the compressor unit for mounting clearance?

The compressor measures 6.14 x 2.05 x 4.69 inches (156 x 52 x 119 mm) and weighs 4.5 lb, so allow at least that footprint plus wiring space.

How do I wire the included relay and fuse for a safe installation?

Use the supplied 20A fuse wire on the power feed, connect the remote control relay to a switched 12V source, and secure all joints with the yellow HSC-3 wire caps and 1-to-3 terminal blocks provided.
