Silver motor unit with chain sprocket, mounting plates, remotes and sensor on dark surface

VEVOR

VEVOR Automatic Gate Opener 1200W 65.6ft 5732lbs Chain Drive

SKU CH-JQ5J-XDVNH

An electric sliding gate opener with a 1200W motor moves gates up to 65.6ft wide and 5732lbs, includes infrared safety sensors and two 50m-range remote controls

  • TypeOther Appliances
  • Width10.43
  • Powerful 1200W pure copper motor moves gates up to 5732 lbs smoothly
  • Opens 3-4m gates in 20-30 seconds with wear-resistant chain drive
  • Two remotes included with 50m range; system supports up to 40 remotes total
  • Infrared sensor detects obstacles and reverses gate automatically for collision prevention
  • Cast aluminium and ABS shell construction weighs 47.18 lbs for durable outdoor use

1200W Chain-Drive Gate Opener

This 1200W electric sliding gate opener uses a pure copper motor running at 1400r/min to move gates up to 65.6ft wide and 5732.01 lbs. It suits residential driveways, farm entrances and commercial sites that need a single-motor chain-drive system. Two remote controls and an infrared sensor ship in the box.

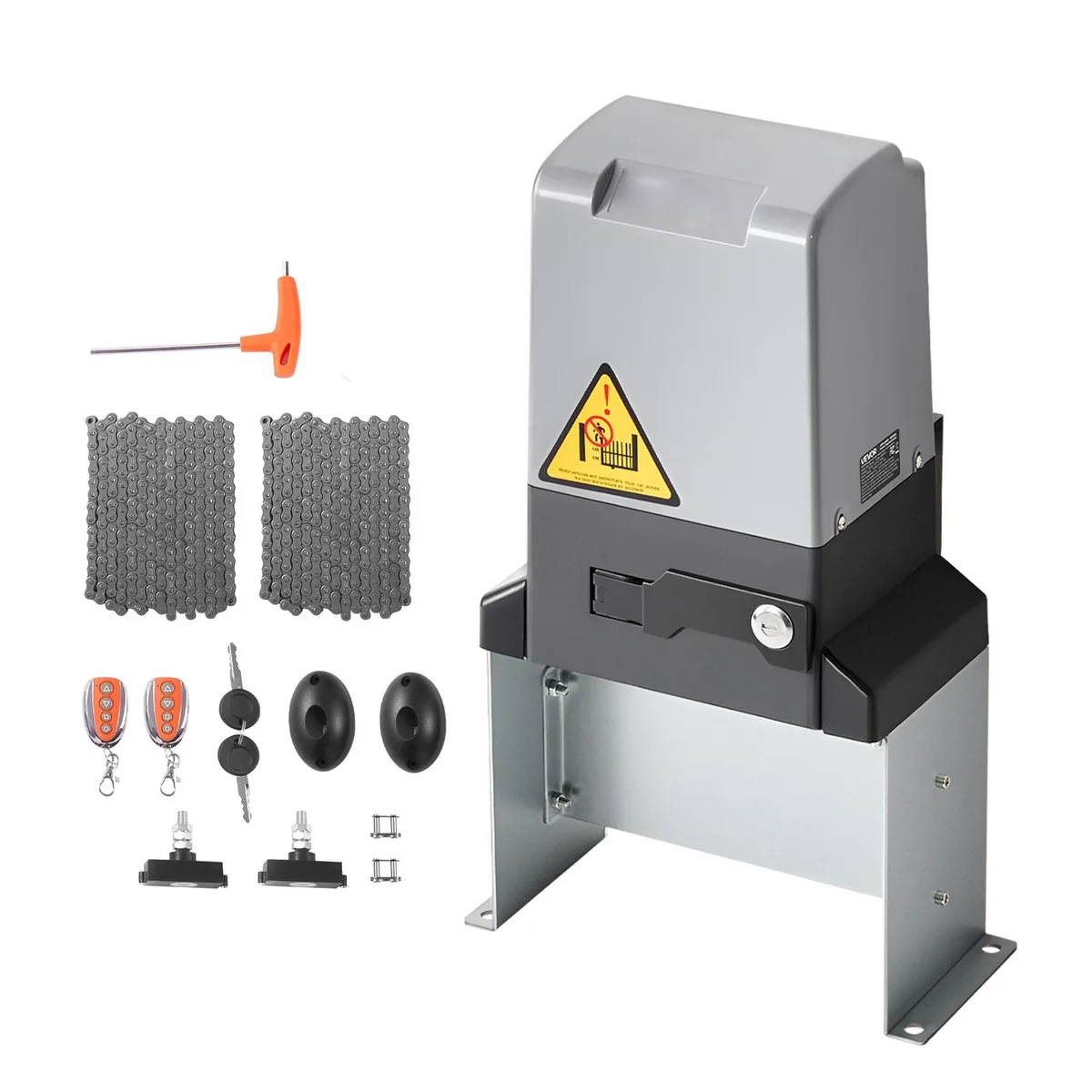

Cast Aluminium Housing & Chain Kit

The main unit measures 10.79 × 7.87 × 12.60 inches and weighs 47.18 lbs, built from cast aluminium with an ABS shell. The package includes two 3-metre chains, a sprocket cover, connecting rods, magnetic limit switches and a full hardware set with expansion bolts, Allen bolts, hex bolts, nuts and washers for horizontal or vertical mounting.

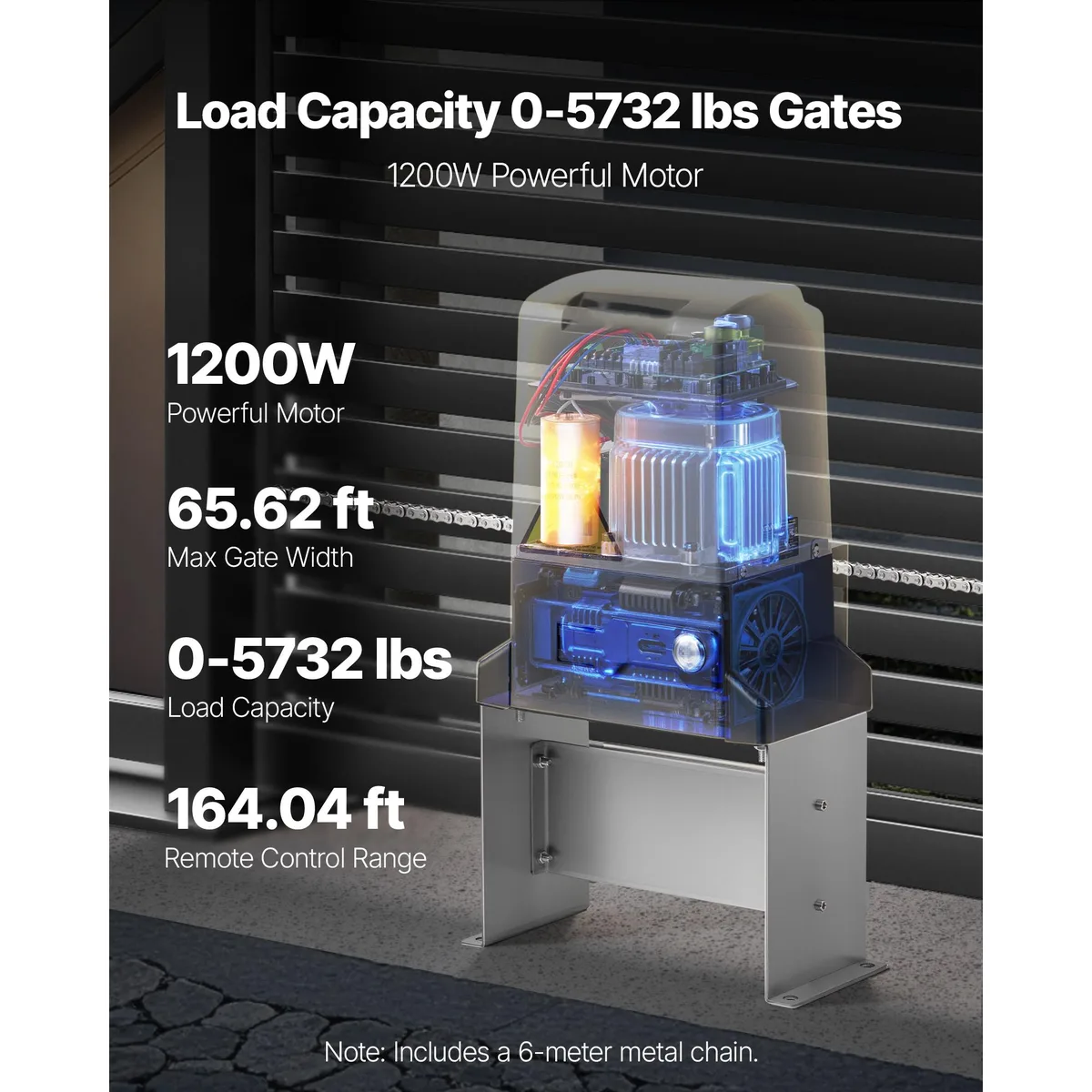

5732.01 lbs Maximum Gate Weight

The opener is rated for gates from 0 to 5732.01 lbs and up to 65.62ft of travel. Heavier or wider gates exceed the motor’s load capacity and will not operate reliably. Buyers needing higher weight or longer span capacity must select a different model.

Highlights

  • Powerful 1200W pure copper motor moves gates up to 5732 lbs smoothly
  • Opens 3-4m gates in 20-30 seconds with wear-resistant chain drive
  • Two remotes included with 50m range; system supports up to 40 remotes total
  • Infrared sensor detects obstacles and reverses gate automatically for collision prevention
  • Cast aluminium and ABS shell construction weighs 47.18 lbs for durable outdoor use

Specifications

TypeOther Appliances
Width10.43

Questions about this item

What gate width does the 1200W chain-drive motor actually handle?

The opener is rated for doors up to 65.6 ft (20 m) wide and a maximum load of 5732 lbs (2600 kg).

What mounting hardware and clearances are needed to bolt the unit to a post?

The main unit measures 10.79 × 7.87 × 12.60 in; the kit includes a horizontal plate, two vertical plates, four M8×100 expansion bolts and assorted M6/M8 fasteners.

How is the infrared sensor wired and aligned so the gate reverses correctly?

Mount the sensor assembly on each gate post, run its cables to the control board terminals, then test that the beam breaks cleanly before tightening the brackets.
