Cast iron desktop arbor press with handwheel, extended lever and three drifts

VEVOR

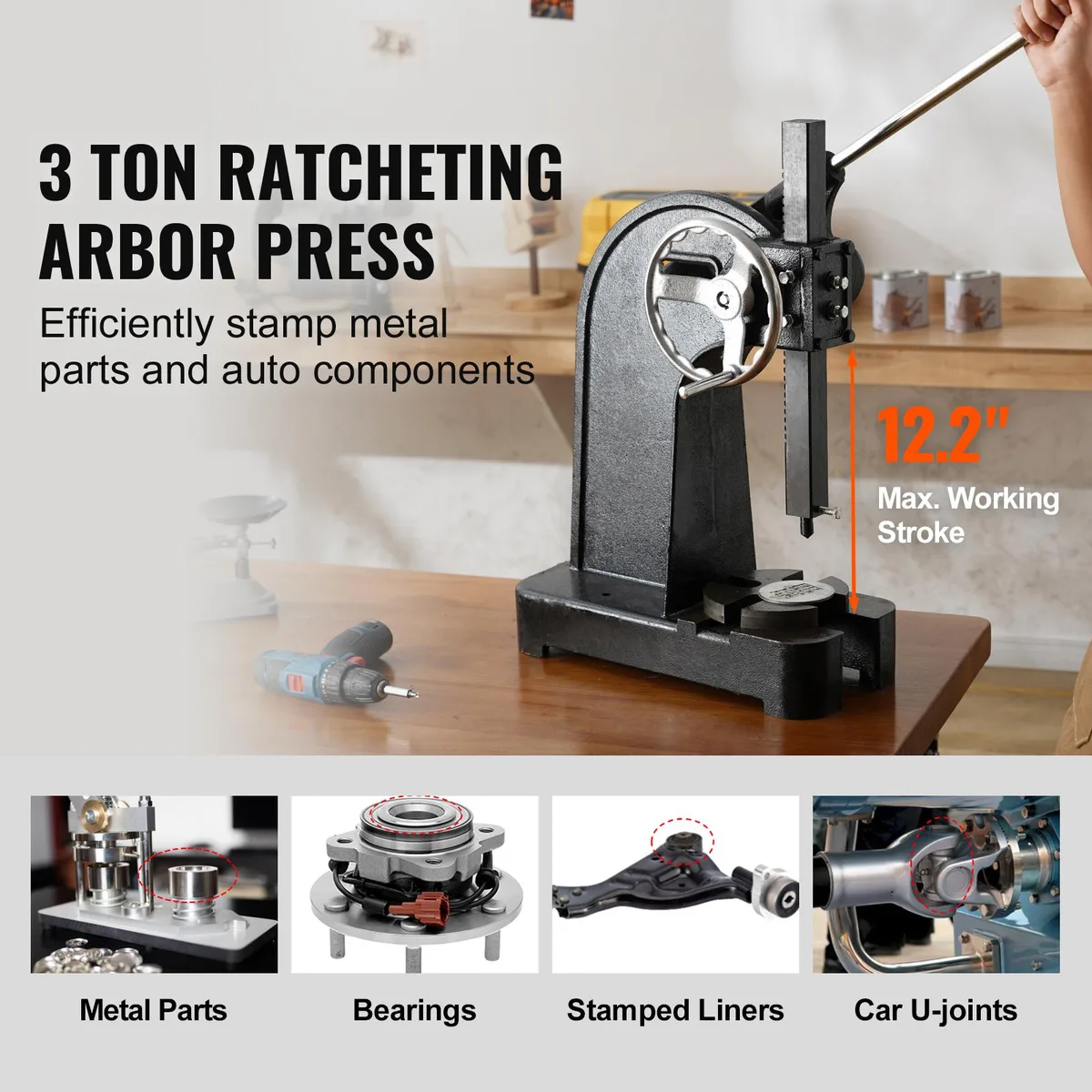

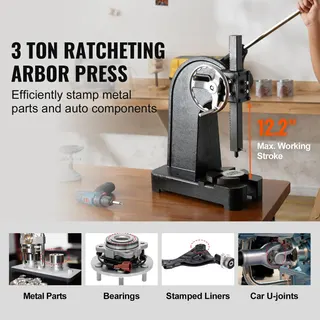

VEVOR APR-3 3 Ton Ratchet Arbor Press 12.2" Stroke

SKU CH-MKPT-CHVSH

A 3-ton ratchet arbor press with 12.2 inch stroke, three included drifts, handwheel height adjustment and cast-iron frame for stamping, bending and riveting tasks

  • TypeOther Appliances
  • Width11.42
  • 3-ton capacity handles heavy stamping and riveting tasks
  • 2-inch stroke provides deep reach for large workpieces
  • Handwheel and extended lever reduce operator effort
  • Three included drifts cover flat, pointed and round forming needs
  • Cast-iron frame weighs 99.21 lbs for stable desktop use

3 Ton Ratchet Arbor Press

This VEVOR APR-3 arbor press delivers a 3 ton pressure capacity for workshop pressing tasks such as stamping, bending, bearing installation and U-joint replacement. The ratchet leverage mechanism multiplies hand force so operators can complete riveting, extrusion and forming jobs without hydraulic power.

Sustained pressing behaviour

The cast iron frame weighs 45 kg and measures 460 x 250 x 600 mm, providing a stable mass that resists movement during repeated cycles. Uniform rack and pinion gears in the ram resist wear and jamming over long sessions, while the adjustable lever locks in position to prevent sliding under continuous load.

Practical limits of the manual interface

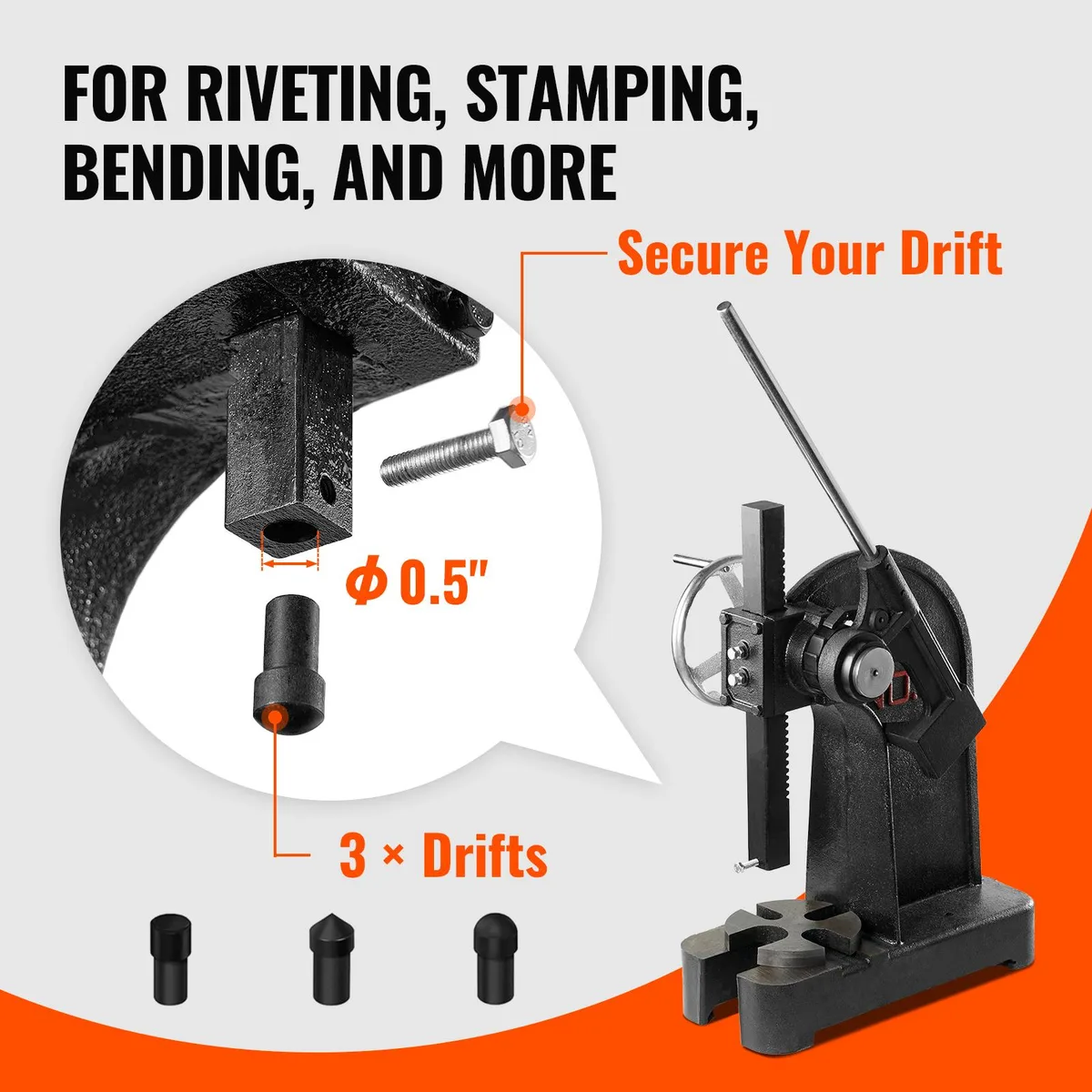

Maximum working stroke is 310 mm with a ram length of 440 mm and a throat depth of 130 mm, defining the largest workpiece envelope. The 12 mm ram bore accepts the three included drifts — flat, pointed and round — but limits tooling to that shank size. Base plate diameter is 166 mm.

Highlights

  • 3-ton capacity handles heavy stamping and riveting tasks
  • 2-inch stroke provides deep reach for large workpieces
  • Handwheel and extended lever reduce operator effort
  • Three included drifts cover flat, pointed and round forming needs
  • Cast-iron frame weighs 99.21 lbs for stable desktop use

Specifications

TypeOther Appliances
Width11.42

Questions about this item

How much hand effort is needed to run the 3-ton ratchet press continuously through its 12.2" stroke?

The ratchet leverage and extended lever multiply force so you can reach the full 3-ton capacity with moderate hand pressure; the handwheel lets you set the ram height before each press, keeping effort consistent across the 12.2" stroke.

What bench space and mounting does the 18.1 x 9.8 x 23.6" cast-iron frame require?

The unit weighs 99.21 lbs and measures 18.1" wide by 9.8" deep, so a sturdy benchtop with at least that footprint and four bolt-down points is needed; no external power or compressed air is required.

Can the 0.5" ram bore and 5.1" throat depth accept tooling from my older 1-ton arbor press?

Yes — the 0.5" ram bore matches common drift shanks, and the 5.1" throat depth clears most small workpieces; the three included drifts (flat, pointed, round) also fit the bore directly.
