Coiled 50 ft high-pressure paint hose with aluminium spray gun, 517 tip guard and 8 in extension pole

VEVOR

VEVOR Airless Paint Spray Kit 50ft 3600 psi 517 Tip 8in Pole

SKU CH-0BS3-86QY2

A 50 ft high-pressure hose kit rated to 3600 psi includes a 517 tungsten-steel tip, tip guard and 8 in aluminium extension pole for airless sprayers

  • TypeOther Appliances
  • Width11.81
  • Faster surface coating with a 50 ft high-pressure hose
  • Reduced fatigue from forged aluminium head and four-finger trigger
  • Consistent 10-12 in spray pattern via 517 tungsten-steel tip
  • Extended reach using 8 in aluminium pole
  • Compatible with most airless sprayers via 1/4" swivel joint

Airless Spray Kit for Home and Industrial Use

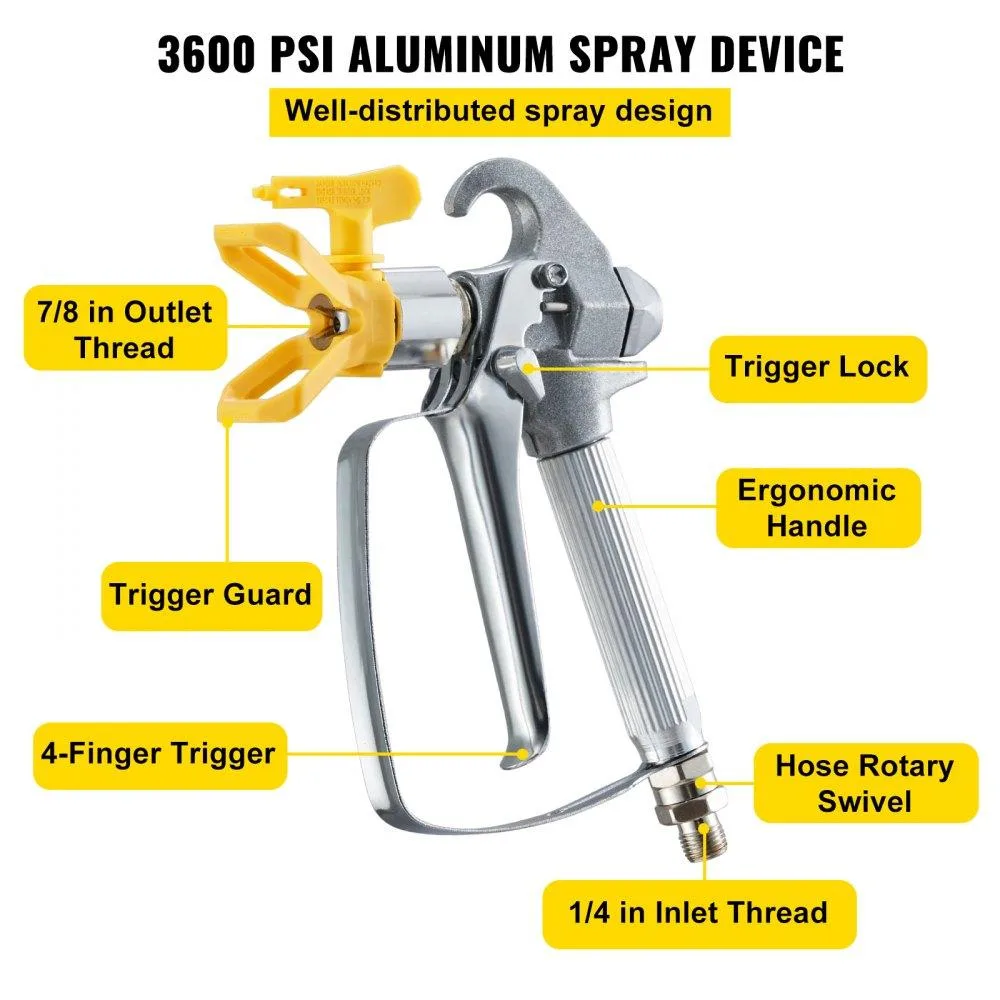

This kit includes a 50 ft high-pressure hose, a spray device with a 1/4 in thread inlet, a 517 tip with guard, and an 8 in aluminum extension pole. It supports most mainstream airless sprayer brands for home decoration, painting, and industrial fine coating tasks. The forged aluminum spray head features a built-in swivel and a full 4-finger trigger to reduce fatigue during extended use.

3600 psi Working Pressure and Hose Limits

The spray device operates at a maximum of 3600 psi, while the fiber and nylon hose provides a working pressure range of 2900 to 4350 psi and a bursting pressure of 4350 psi. The 1/4 in thread inlet and 7/8 in thread outlet connect the hose to the device. The 517 tip is rated for up to 5000 psi, providing a margin above the device's maximum operating pressure.

517 Tip Coverage and Extension Reach

The 517 tip produces a spray range of 10 to 12 in with a 0.017 in orifice and an adjustable fan angle from 0 to 50 degrees. The 8 in extension pole adds reach for ceilings, decks, and fences without requiring a ladder. The hose weighs 3.3 lbs and the spray kit with tip weighs 1.54 lbs, keeping the assembly manageable for overhead work.

Highlights

  • Faster surface coating with a 50 ft high-pressure hose
  • Reduced fatigue from forged aluminium head and four-finger trigger
  • Consistent 10-12 in spray pattern via 517 tungsten-steel tip
  • Extended reach using 8 in aluminium pole
  • Compatible with most airless sprayers via 1/4" swivel joint

Specifications

TypeOther Appliances
Width11.81

Questions about this item

Should I pick the 517 tip or a different size for my project?

The 517 tip has a 0.017 in orifice and a 10 to 12 in fan width, suited for medium-bodied coatings on walls, decks and fences.

What does the 3600 psi rating mean when I am actually spraying?

The spray device is rated to 3600 psi maximum operating pressure, matching the hose working range of 2900 to 4350 psi for consistent atomisation.

What thread standard do the 1/4 in inlet and 7/8 in outlet use, and what pressure does that limit?

Both fittings use standard NPSM threads; the inlet caps the system at the sprayer’s 3600 psi rating while the outlet accepts the 517 tip guard rated to 5000 psi.
