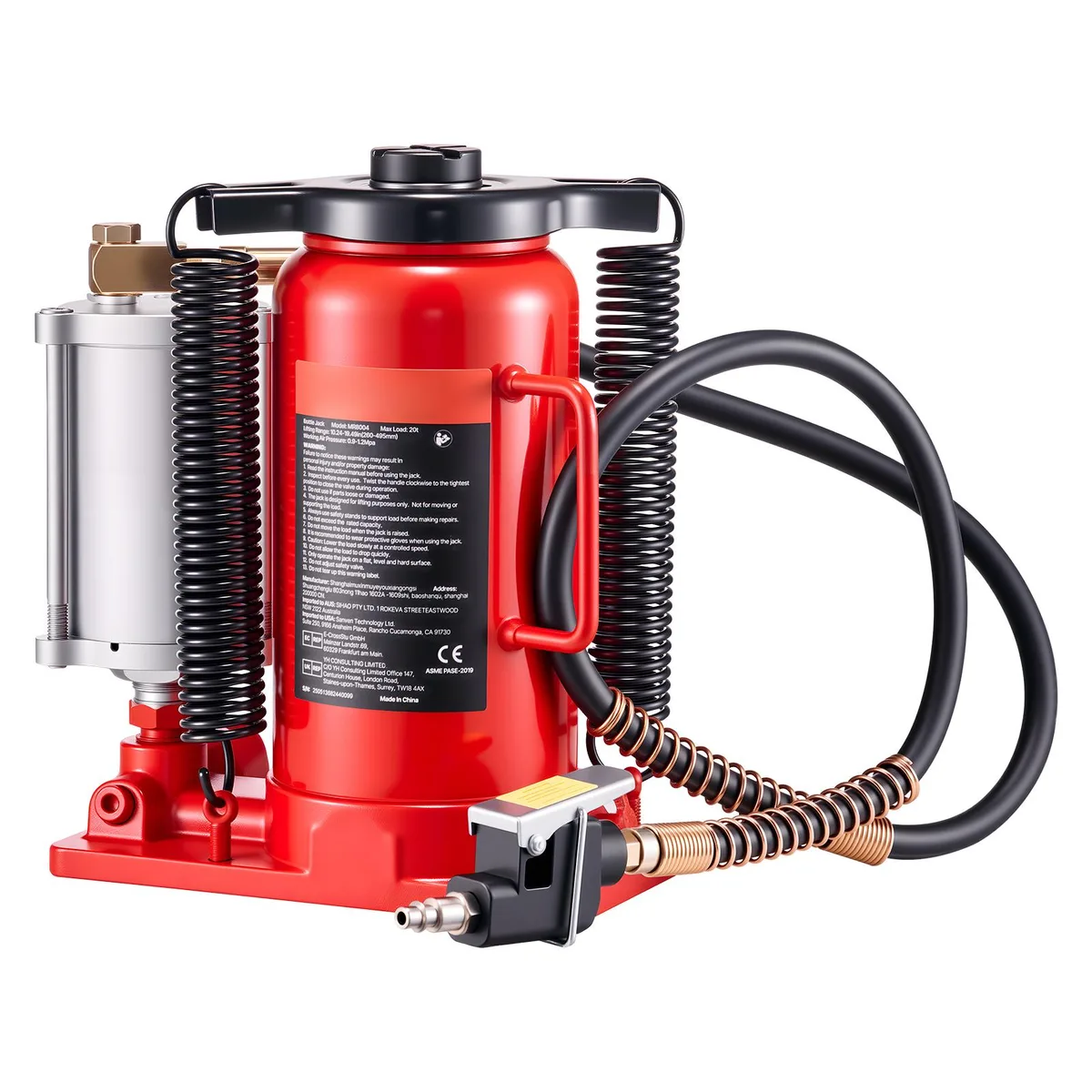

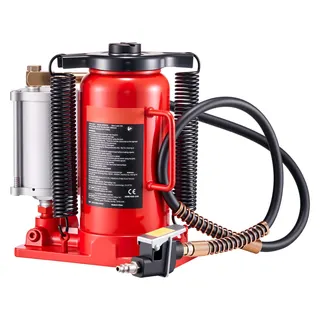

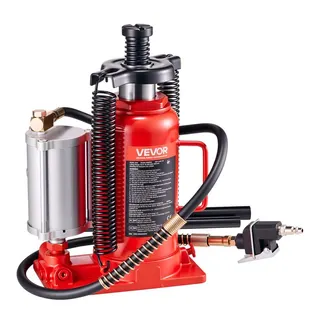

Red cylindrical bottle jack with chrome piston and black base

VEVOR

VEVOR Air Hydraulic Bottle Jack 20 Ton Red

SKU CH-0JAH-T04F2

Air hydraulic bottle jack lifts up to 20 tonnes from 10.2 to 19.5 inches using 0.9 to 1.2 MPa shop air

  • Width9.06
  • TypeFloor Jacks
  • Vehicle TypeAutomotive
  • 20-ton capacity lifts heavy vehicles safely
  • Air-powered operation at 0.9–1.2 MPa reduces manual effort
  • Lifting range 10.2–19.5 in with 2.6 in adjustable screw fits varied clearances
  • Cast iron and carbon steel construction handles 44092 lbs rated load
  • Compact 9.3×6.1×10.2 in footprint stores easily in workshop or vehicle

20 Ton Air Hydraulic Jack

This air hydraulic bottle jack provides a 20 ton rated load for heavy automotive lifting tasks. It operates on compressed air at 0.9 to 1.2 MPa using a US type quick connector. The unit weighs 29.8 lbs and measures 9.3 x 6.1 x 10.2 in, constructed from cast iron and carbon steel.

Suits heavy vehicle repair shops

Mechanics lifting trucks or commercial vehicles up to 44092 lbs will find the 10.2 to 19.5 in lifting range and 2.6 in adjustable screw useful. Shops without a compressed air supply capable of 0.9 MPa minimum pressure cannot operate this jack. Buyers needing a lower profile or manual pump action should consider other designs.

0.9 to 1.2 MPa air pressure requirement

The jack only functions when supplied with compressed air between 0.9 and 1.2 MPa through the US type quick connector. Verify your shop compressor delivers this pressure range consistently before purchase. Without this specific air supply the 20 ton capacity cannot be realised.

Highlights

  • 20-ton capacity lifts heavy vehicles safely
  • Air-powered operation at 0.9–1.2 MPa reduces manual effort
  • Lifting range 10.2–19.5 in with 2.6 in adjustable screw fits varied clearances
  • Cast iron and carbon steel construction handles 44092 lbs rated load
  • Compact 9.3×6.1×10.2 in footprint stores easily in workshop or vehicle

Specifications

Width9.06
TypeFloor Jacks
Vehicle TypeAutomotive
