Two black iron gate corner brace brackets with welded hinges and latch locks

VEVOR

VEVOR AA70000202 Gate Corner Brace Bracket 2 Sets Iron Black

SKU CH-AJMF-EZ6TS

Reinforces gate corners with iron brackets, welded hinges, latch locks and 76 countersunk screws

  • TypeOther Appliances
  • Width13.58
  • Iron construction resists corrosion for long outdoor life
  • Pre-welded hinges on two brackets speed up frame assembly
  • 76 countersunk screws included for secure corner reinforcement
  • Adjustable latch lock with rope allows one-hand gate operation
  • Inner frame dimensions 305 x 195 x 38 mm fit standard gate profiles

Gate Corner Brace Kit

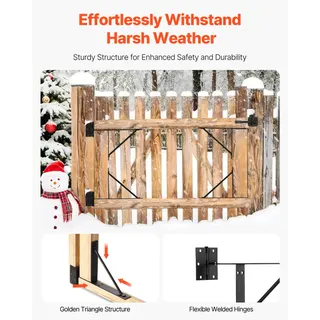

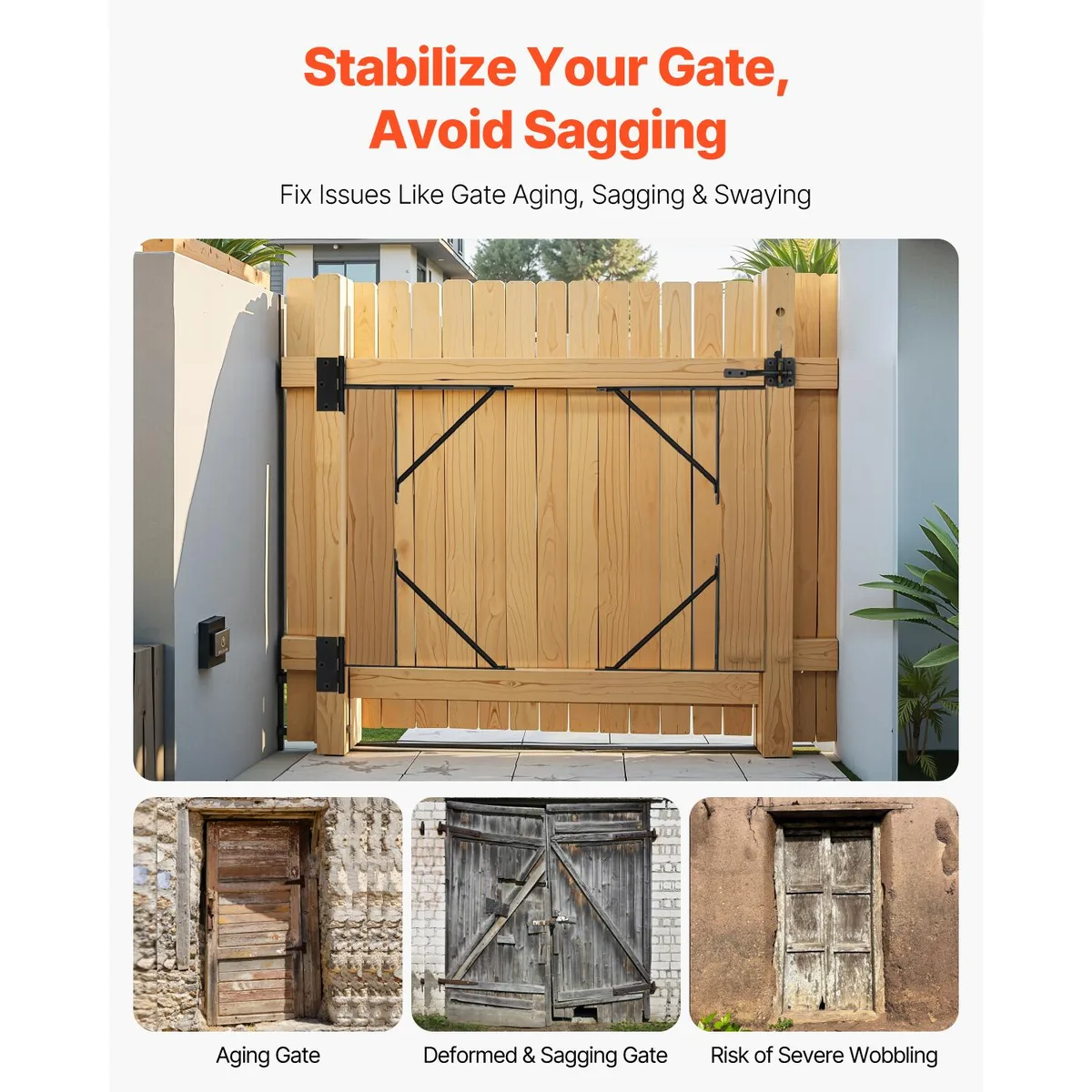

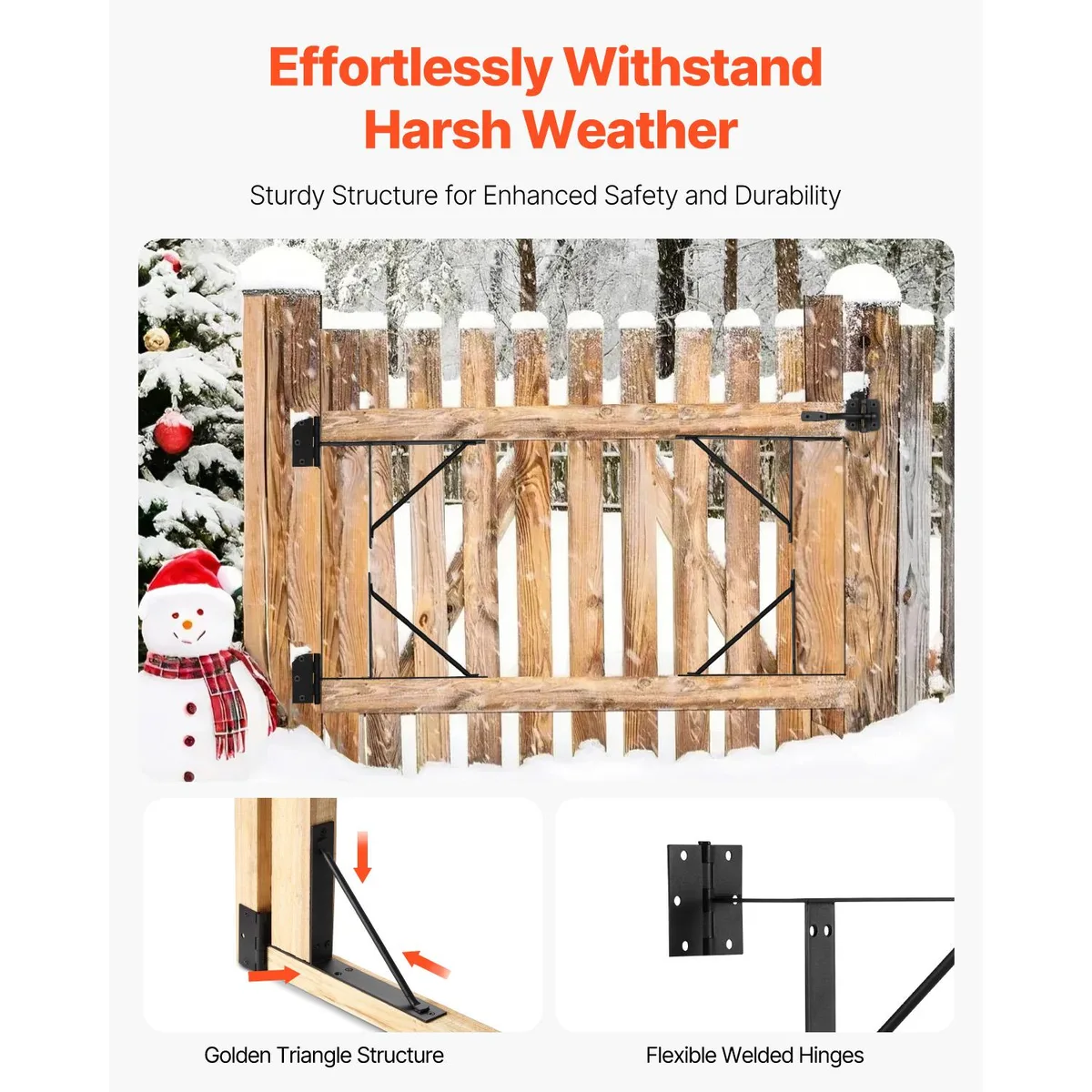

The VEVOR AA70000202 kit supplies two iron corner braces designed to reinforce sagging frames on shed doors, corral gates, driveway gates or stable gates. Each set includes brackets with welded hinges and latch locks so the hardware works as a complete frame repair package. The black finish matches common outdoor metalwork.

Installation Notes

Eight inner support frames measuring 12 x 7.7 x 1.5 inches arrive pre-assembled with two hinges already welded in place. You fasten the brackets using seventy-six M5 x 50 countersunk screws and secure the two latch locks with twelve M5 x 30 round-head screws plus the supplied ropes. Drilling pilot holes in hardwood prevents the screw heads from stripping.

Pre-Order Checks

Verify that your gate frame corners are square and that the 305 x 195 x 38 mm inner support dimensions suit the timber thickness you are repairing. Confirm you have a drill driver suited to M5 fasteners and enough clearance to swing the latch ropes. The kit weighs 13.23 lbs, so ensure the mounting structure can carry the added mass.

Highlights

  • Iron construction resists corrosion for long outdoor life
  • Pre-welded hinges on two brackets speed up frame assembly
  • 76 countersunk screws included for secure corner reinforcement
  • Adjustable latch lock with rope allows one-hand gate operation
  • Inner frame dimensions 305 x 195 x 38 mm fit standard gate profiles

Specifications

TypeOther Appliances
Width13.58

Questions about this item

How can I confirm the gate corner brace brackets are properly installed and functioning?

After mounting the eight inner support frames (including the two with welded hinges) and securing all 76 countersunk M5×50 screws plus the 12 latch lock screws, the gate should open and close without sagging and the latch lock should engage cleanly with its rope pull.

What hardware is included in the package and what must I supply myself?

The box contains two gate corner brace brackets, two latch locks with ropes, 12 M5×30 latch lock screws and 76 M5×50 countersunk screws; you will need to provide your own drill or screwdriver and any gate lumber or posts.

Which version of the AA70000202 should I choose for a standard shed or driveway gate?

The single listed model AA70000202 includes two bracket sets with eight iron support frames (305×195×38 mm) and all mounting hardware, making it the only version needed for typical shed, corral, driveway or stable gates.
