VEVOR hydraulic outboard steering kit with helm cylinder wheel and hoses

VEVOR

VEVOR 90HP Hydraulic Outboard Steering Kit

SKU CH-RJGQ-G4DRZ

Hydraulic outboard steering kit rated for 90HP engines includes helm, cylinder, 13.5‑inch wheel, two 26‑ft hoses and hardware

  • TypeOther Appliances
  • Width13.78
  • Steers engines up to 90HP with hydraulic precision
  • Complete kit includes helm, cylinder, wheel and two 26FT hoses
  • Compact cylinder measures 20.7 x 6.7 x 2.8 inch for tight transoms
  • Lightweight at 18.7 lbs for easier handling and installation
  • 5-inch steering wheel gives comfortable leverage on the water

90HP Hydraulic Outboard Steering Kit

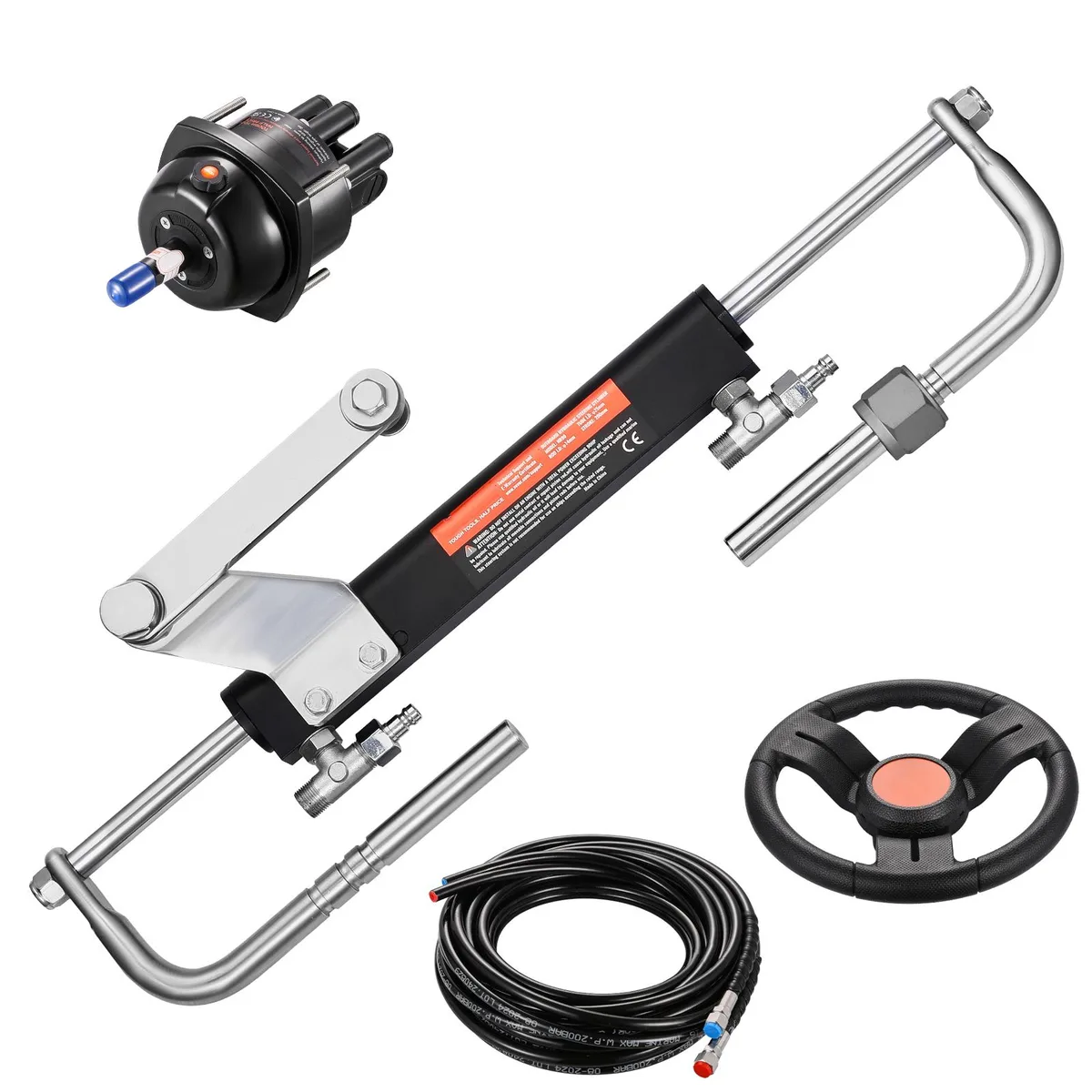

This kit provides a complete hydraulic steering system designed for marine outboard engines rated up to 90 horsepower. It includes a hydraulic helm, steering cylinder, 13.5-inch steering wheel, two 26-foot hydraulic hoses and assembly hardware for a full installation.

Upgrade from mechanical cable steering

Replacing a traditional mechanical cable system with this hydraulic kit reduces steering effort and eliminates cable friction and binding. The jump is worth it when smoother, more responsive control is needed for a 90HP outboard application.

Suits single-engine outboard installations

This system suits boat owners fitting or retrofitting a single outboard up to 90HP who want lighter steering feel. Builders needing dual-engine setups, higher horsepower ratings or different hose lengths should look at alternative configurations.

Highlights

  • Steers engines up to 90HP with hydraulic precision
  • Complete kit includes helm, cylinder, wheel and two 26FT hoses
  • Compact cylinder measures 20.7 x 6.7 x 2.8 inch for tight transoms
  • Lightweight at 18.7 lbs for easier handling and installation
  • 5-inch steering wheel gives comfortable leverage on the water

Specifications

TypeOther Appliances
Width13.78

Questions about this item

What transom space is needed to mount the 20.7 x 6.7 x 2.8 inch hydraulic cylinder?

The cylinder measures 526 mm long, 170 mm wide and 70 mm high, so allow at least that envelope plus clearance for hose connections on the transom.

How do you bleed the system after connecting the two 26 ft hydraulic hoses between the helm and cylinder?

Fill the helm reservoir, turn the 13.5 inch steering wheel lock-to-lock repeatedly while topping up fluid until the cylinder moves smoothly without sponginess.

When should the hydraulic fluid in the helm and cylinder be replaced?

Replace the fluid every one to two seasons or sooner if it appears milky, dark or contaminated, using only the marine hydraulic oil type specified in the manual.
