Top-mount outboard remote control box, aluminium alloy body, power trim switch, Mercury PT 2-stroke compatible

VEVOR

VEVOR 8M0059686 Top-Mount Outboard Remote Control Box for Mercury PT 2-Stroke with Power Trim Switch

SKU CH-Y0P4-5W6WC

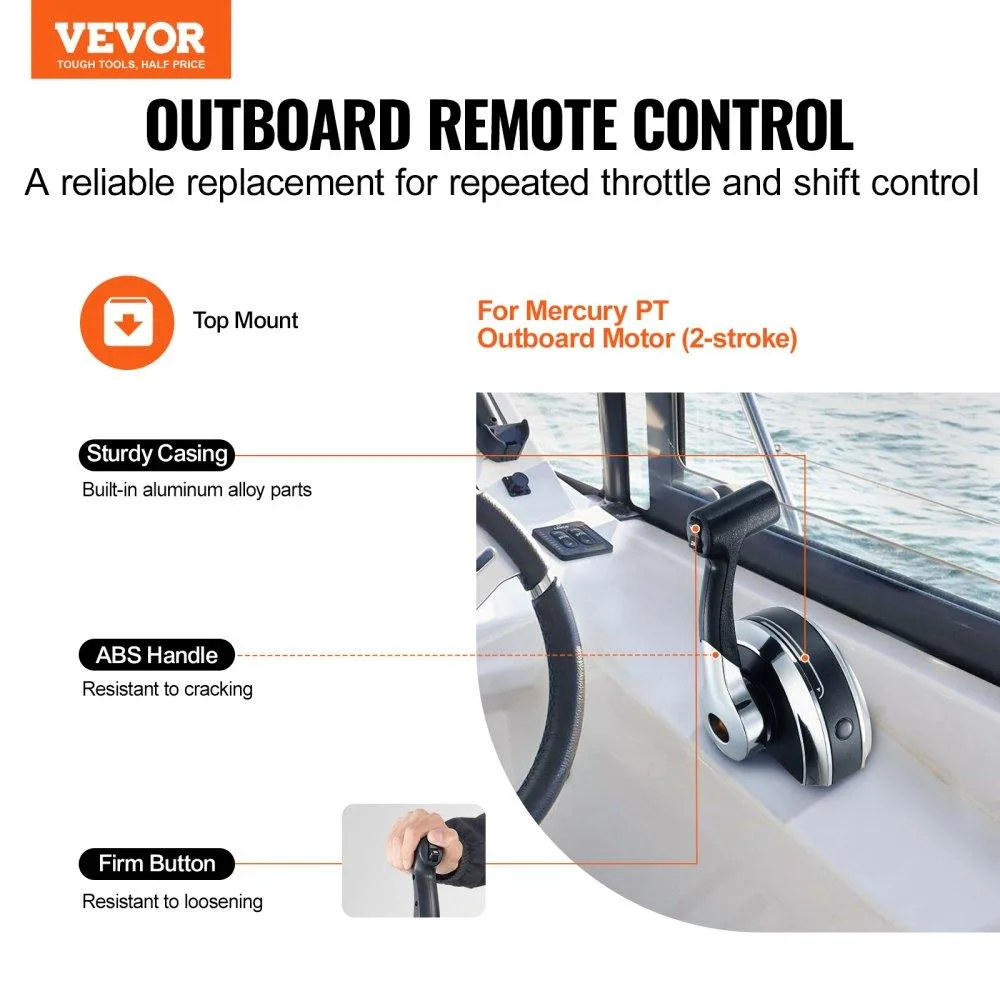

Top-mount throttle and shift control for Mercury PT two-stroke outboards with an integrated power-trim switch

  • TypeOther Appliances
  • Width14.17
  • Precise throttle and shift control with integrated power trim switch
  • Direct fit for Mercury PT 2-stroke outboards ensures reliable compatibility
  • Corrosion-resistant ADC2 aluminum alloy and ASA housing withstands harsh marine environments
  • Flexible 12-24 V DC operation suits common boat electrical systems
  • Top-mount design with included brackets and hardware simplifies installation

Top-Mount Control for Mercury PT 2-Stroke

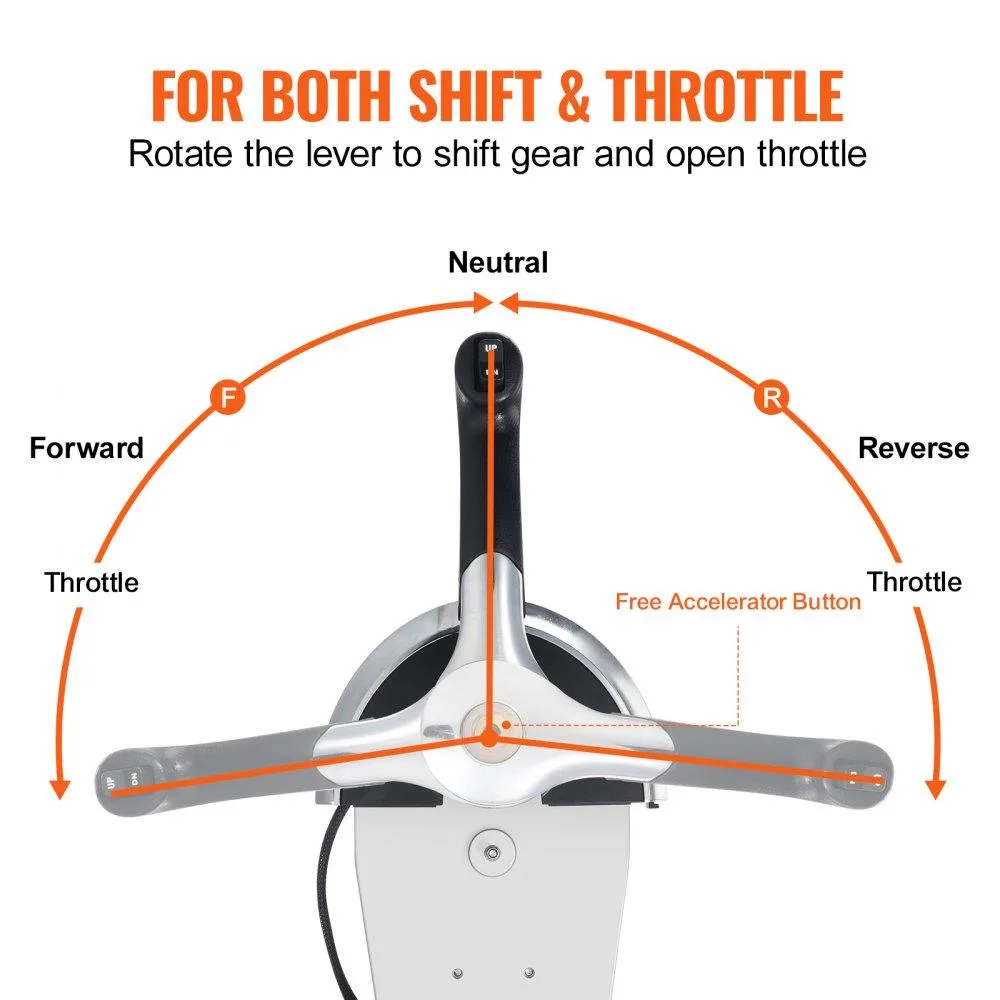

This remote control box mounts on the console of a boat running a Mercury PT two-stroke outboard. It provides single-lever throttle and shift operation with an integrated power-trim switch. The unit operates on DC 12–24 V systems and draws 2 A. It is built from aluminum alloy ADC2 and ASA for corrosion resistance.

Replaces Worn Console Controls

The box replaces a damaged or missing factory top-mount control on compatible Mercury PT two-stroke engines. The jump is worth it when the original lever sticks, the trim switch fails, or the housing cracks from UV exposure. A 1.0 ft three-pin plug and a 5.9 ft two-pin connector link the unit to the engine harness.

Check Mounting Space and Voltage

Verify the console cut-out can accept a 17.9 x 5.7 in footprint with 3.7 in depth. Confirm the boat electrical system supplies DC 12–24 V and that the existing control cables match the supplied connectors. The package includes brackets, screws, nuts, rubber sleeves, cable ties and an instruction manual.

Highlights

  • Precise throttle and shift control with integrated power trim switch
  • Direct fit for Mercury PT 2-stroke outboards ensures reliable compatibility
  • Corrosion-resistant ADC2 aluminum alloy and ASA housing withstands harsh marine environments
  • Flexible 12-24 V DC operation suits common boat electrical systems
  • Top-mount design with included brackets and hardware simplifies installation

Specifications

TypeOther Appliances
Width14.17

Questions about this item

How wide is the cut-out for this 455 mm long top-mount control box?

The unit measures 455 mm long by 145 mm wide and 95 mm high; allow at least those clearances plus room for the two included mounting brackets and the cable exits.

Which step is most often missed when wiring the 320 mm 3-pin and 1800 mm 2-pin harnesses?

Fit the supplied rubber sleeves and insulated terminal sleeves onto each conductor before crimping the male and female connectors, then secure the loom with the provided tie holders so the plugs seat fully.

What parts should be checked or replaced after a season of salt-water use?

Inspect the ADC2 aluminium alloy housing for pitting, verify the power-trim switch action, and replace any corroded M5 or M4 stainless fasteners, rubber buckles or cable ties from the kit.
