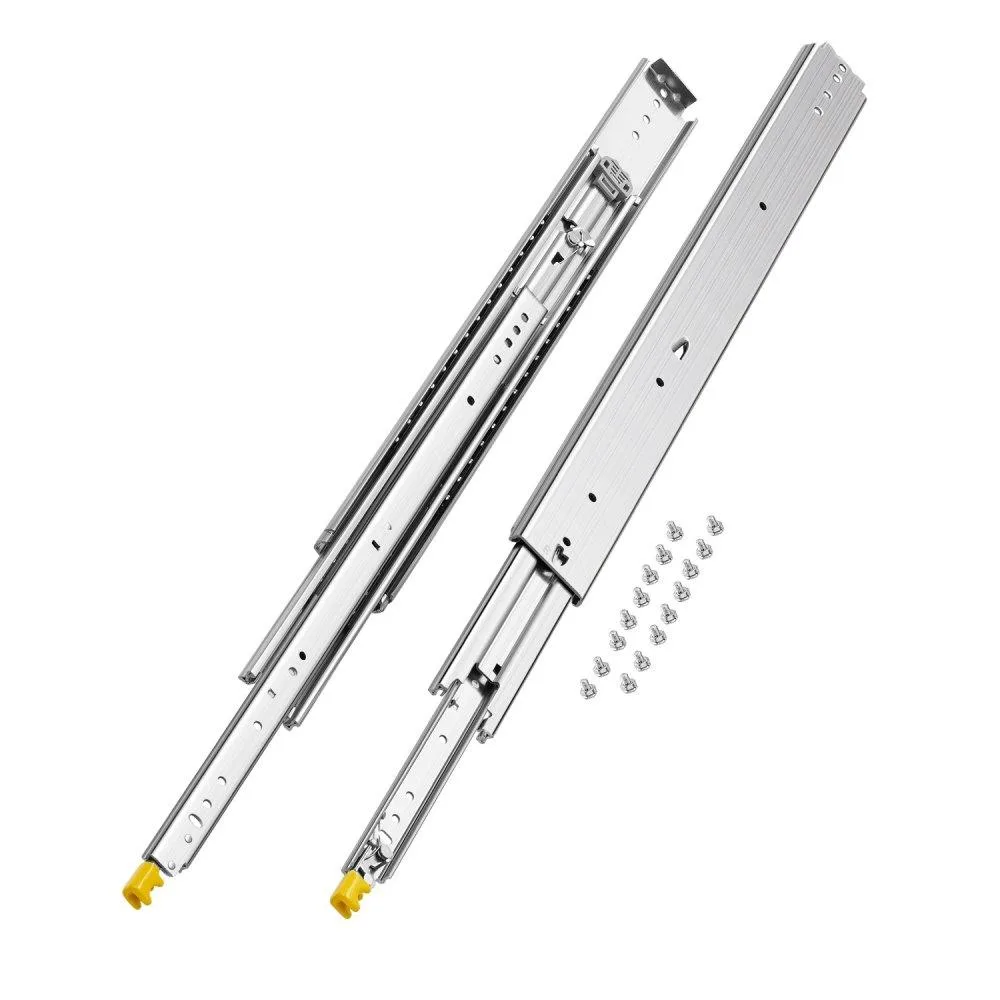

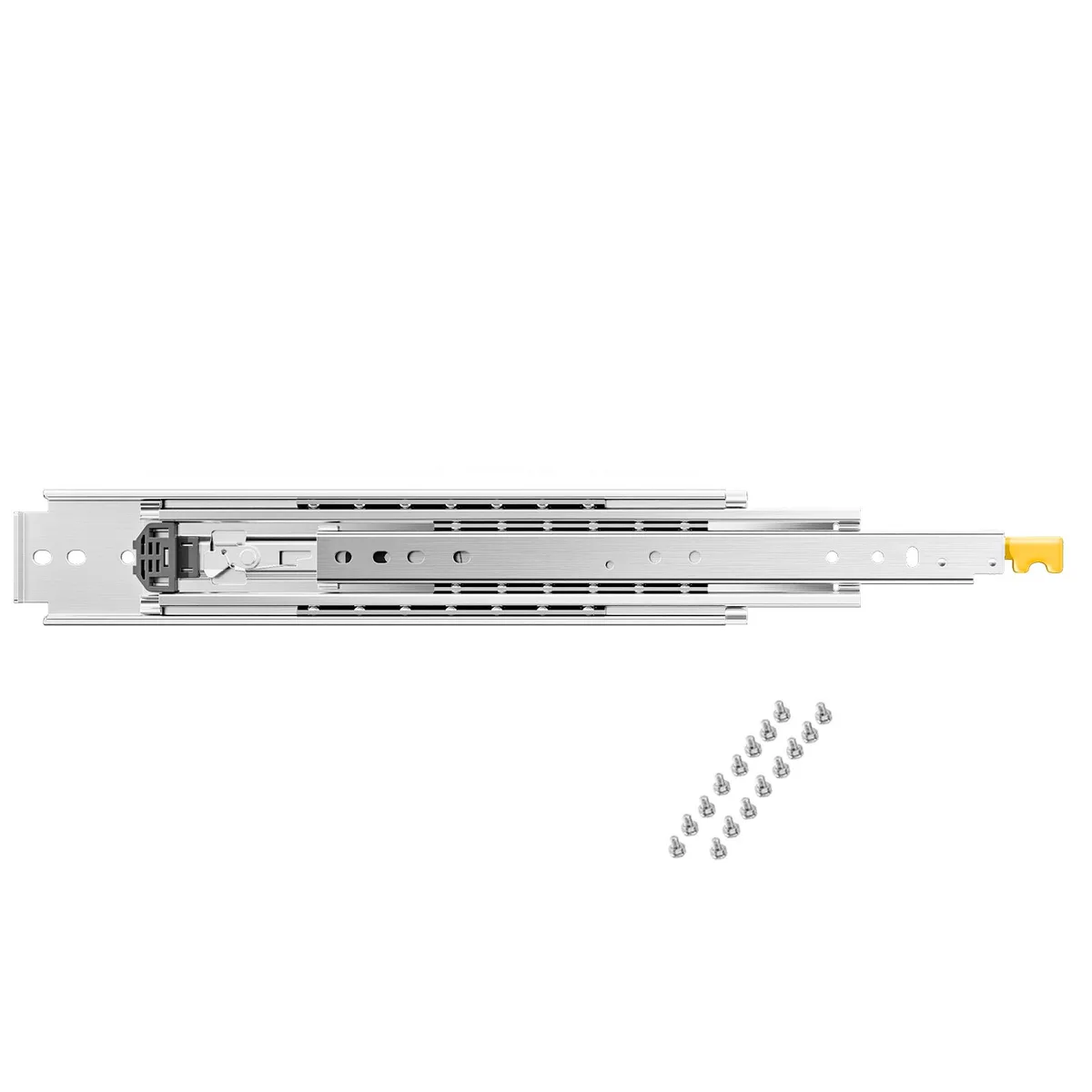

Pair of silver metal drawer slides with ball bearings and locking mechanism, side mount, 30 inch extension

VEVOR

VEVOR 7601Z-30" 30 in Full Extension Locking Drawer Slides 500 lbs

SKU CH-QCF3-WGJD7

Full-extension locking drawer slides rated for 500 lbs static and 343 lbs fully extended, 30 in travel with 16 screws and nuts included

  • TypeOther Appliances
  • Width3.54
  • Supports heavy loads up to 500 lbs with 343 lbs at full extension
  • Full 30 inch extension gives complete drawer access for easy retrieval
  • Locking mechanism holds drawer securely open or closed during use
  • Ball-bearing action provides smooth, quiet operation over the full travel
  • Includes 16 screws and 16 nuts for straightforward side-mount installation

30-inch Full Extension Locking Slides

This pair of side-mount drawer slides extends the full 30 inches so the entire drawer contents are reachable. A built-in lock holds the drawer open or closed, preventing unwanted movement in mobile or vibration-prone installations. The slides are sold new and include sixteen screws and sixteen nuts for mounting. Rated at 500 lbs per pair, they suit heavy-duty storage drawers, tool cabinets and industrial equipment.

500 lb Static and 343 lb Extended Capacity

The critical figure is the load rating: 500 lbs when the drawer is closed and 343 lbs when fully extended. Both values apply to the pair, so the drawer box, contents and any dynamic forces must stay within the lower extended limit. Exceeding 343 lbs at full travel will overload the ball-bearing mechanism and compromise the locking function.

Heavy-duty drawers up to 30.5 inches deep

These slides fit drawers up to 30.5 inches deep and require 3 inches of side clearance per slide. They are not suited for drawers deeper than 30.5 inches, for face-frame cabinets without a spacer block, or for applications needing a soft-close or push-to-open action. Buyers who want a lower profile, a higher extended load rating or a different extension length should look at other models.

Highlights

  • Supports heavy loads up to 500 lbs with 343 lbs at full extension
  • Full 30 inch extension gives complete drawer access for easy retrieval
  • Locking mechanism holds drawer securely open or closed during use
  • Ball-bearing action provides smooth, quiet operation over the full travel
  • Includes 16 screws and 16 nuts for straightforward side-mount installation

Specifications

TypeOther Appliances
Width3.54

Questions about this item

What does the 500 lb rating mean when the drawer is fully open?

The slides are rated for 500 lbs when closed and 343 lbs when the drawer is fully extended to 30 in.

How far do these slides extend and what mounting style do they use?

They provide 30 in of full-extension travel and mount on the drawer side using the included 16 screws and 16 nuts.

What cabinet and drawer dimensions do the 30 in slides require?

The slides suit a drawer length of 30.5 in, measure 31 x 3 x 0.77 in overall, and need 3 in of side clearance per slide.
