Blue hydraulic gear puller with three jaws and pump body in case

VEVOR

VEVOR 5T Hydraulic Gear Puller 8" 2/3 Jaw YL-5T

SKU CH-DVQW-Y4K19

Hydraulic gear puller with 5-ton capacity, 8-inch spread, and reversible 2- or 3-jaw operation for vertical or horizontal use

  • TypeOther Appliances
  • Width3.94
  • 5-ton pulling capacity for large machine parts
  • 8-inch maximum spread reaches wide components
  • 50 mm piston stroke shortens pulling distance
  • Horizontal and vertical operation fits any orientation
  • Integrated cast cylinder prevents oil leakage

5-Ton Hydraulic Gear Puller

The VEVOR YL-5T is a 5-ton capacity hydraulic puller designed for removing gears, bearings, pulleys and hubs in heavy machinery maintenance. It offers a maximum spread of 228.6 mm and a 50 mm piston stroke for reaching deep-seated components. The kit includes a pump body, handle, three jaws, pull ring, thimble, six high-strength bolts and a pulling tab supplied in a case.

Suited for industrial maintenance

This tool suits mechanics and technicians who need up to 5 tons of pulling force for large machine parts, railway or ship components and mining equipment. It is not intended for light automotive work where a smaller spread or lower force would suffice, nor for tasks requiring powered hydraulic pumps or spreads beyond 228.6 mm.

Sustained pulling with leak-proof cylinder

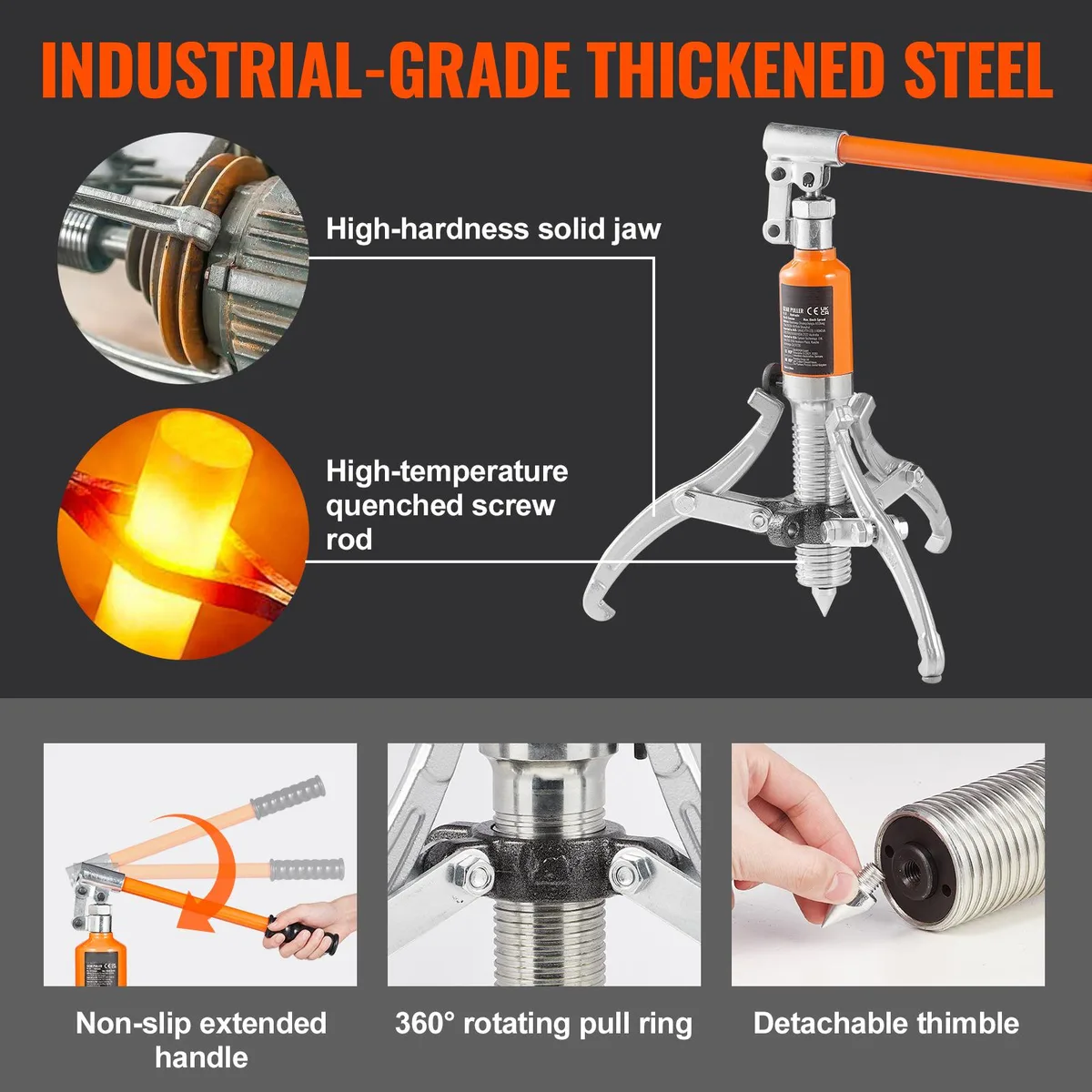

The integrated casting oil cylinder and thickened pump body are built to resist cracking and oil leakage during extended pulling cycles. Horizontal and vertical operation modes plus the extended handle allow continuous force application without repositioning, while the 50 mm stroke lets the jaws stay engaged closer to the workpiece for efficient, steady extraction.

Highlights

  • 5-ton pulling capacity for large machine parts
  • 8-inch maximum spread reaches wide components
  • 50 mm piston stroke shortens pulling distance
  • Horizontal and vertical operation fits any orientation
  • Integrated cast cylinder prevents oil leakage

Specifications

TypeOther Appliances
Width3.94

Questions about this item

What hydraulic pump pressure rating do I need to reach the 5T pulling capacity?

The integrated casting oil cylinder and thickened pump body are built into the puller; no separate pump pressure rating is required to achieve the 5 ton capacity.

Can the 8-inch maximum spread of 228.6 mm clear the flanges on my older 6-inch hub assemblies?

Yes, the 8 inch maximum spread provides clearance for hubs up to 228.6 mm, so a 6 inch hub will fit within the three jaws.

How do I verify the 50 mm piston stroke is engaging fully during a pull?

Watch the piston advance until it reaches the 2 inch stroke limit marked on the cylinder; the handle resistance will increase sharply when the stroke is complete.
