Wide vinyl cutter plotter on metal floor stand with LED control panel and optical eye

VEVOR

VEVOR 53-Inch Automatic Contour Vinyl Cutter Plotter with Floor Stand & Signmaster Software

SKU CH-13KN-83SDC

53-inch vinyl cutter with automatic contour cutting via optical eye, adjustable force from 20 to 500 g and speed up to 800 mm/s, includes floor stand and Signmaster software

  • TypeOther Appliances
  • Automatic contour cutting with built-in optical eye and Signmaster software
  • 1 in max paper feed and 49.6 in cutting width for large-format projects
  • Adjustable force 20-500 g and speed 20-800 mm/s suit varied materials
  • Offline U-disk operation plus USB and serial interfaces for flexible workflow
  • +/- 0.0004 in accuracy driven by stepper motor and ARM motherboard

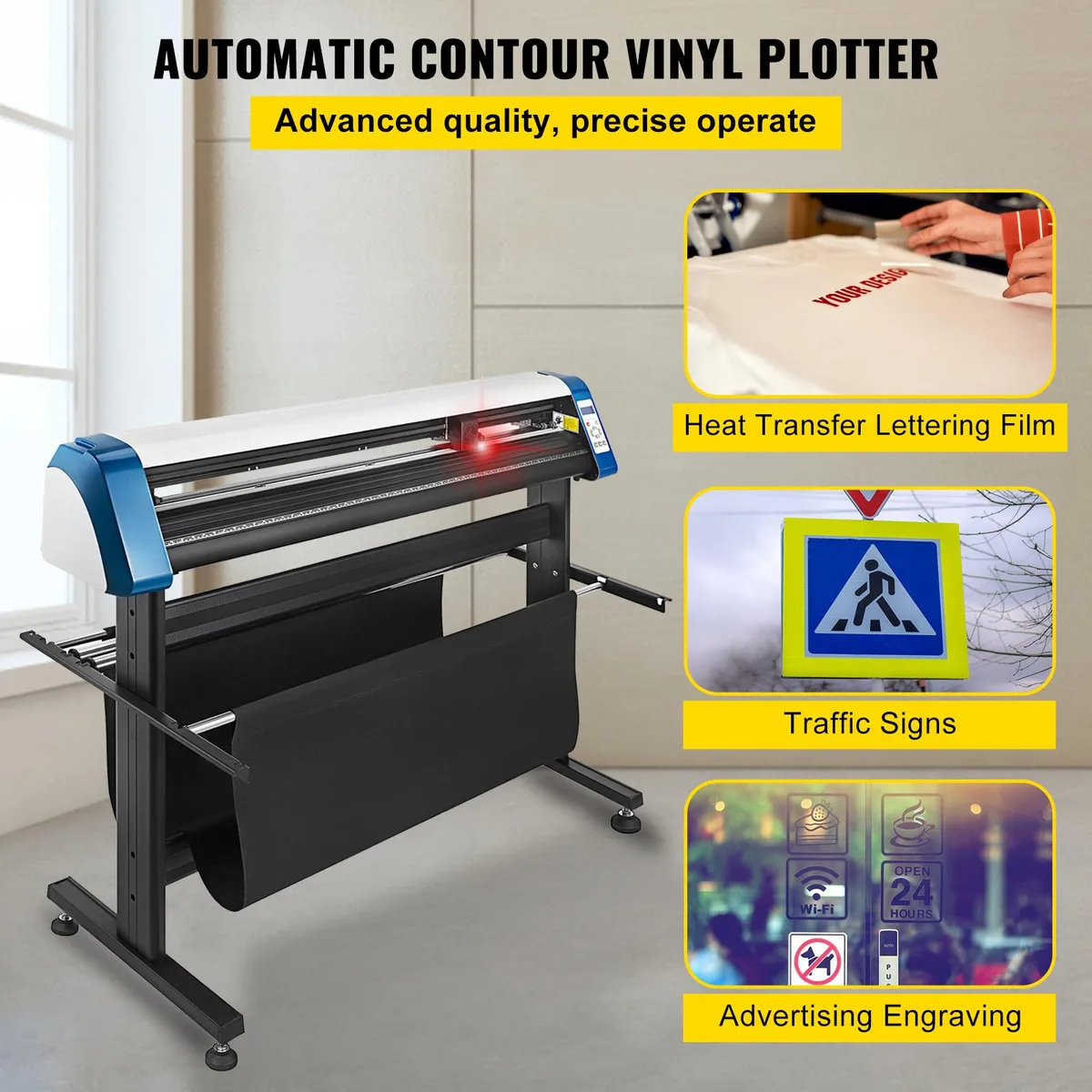

53-Inch Contour Vinyl Cutter Plotter

The VEVOR 53-inch automatic contour vinyl cutter plotter is built for sign makers and graphics professionals who need wide-format precision. It handles a maximum paper feed of 53.1 in and a maximum cutting width of 49.6 in, driven by a stepper motor with a casting pressure carriage for consistent results.

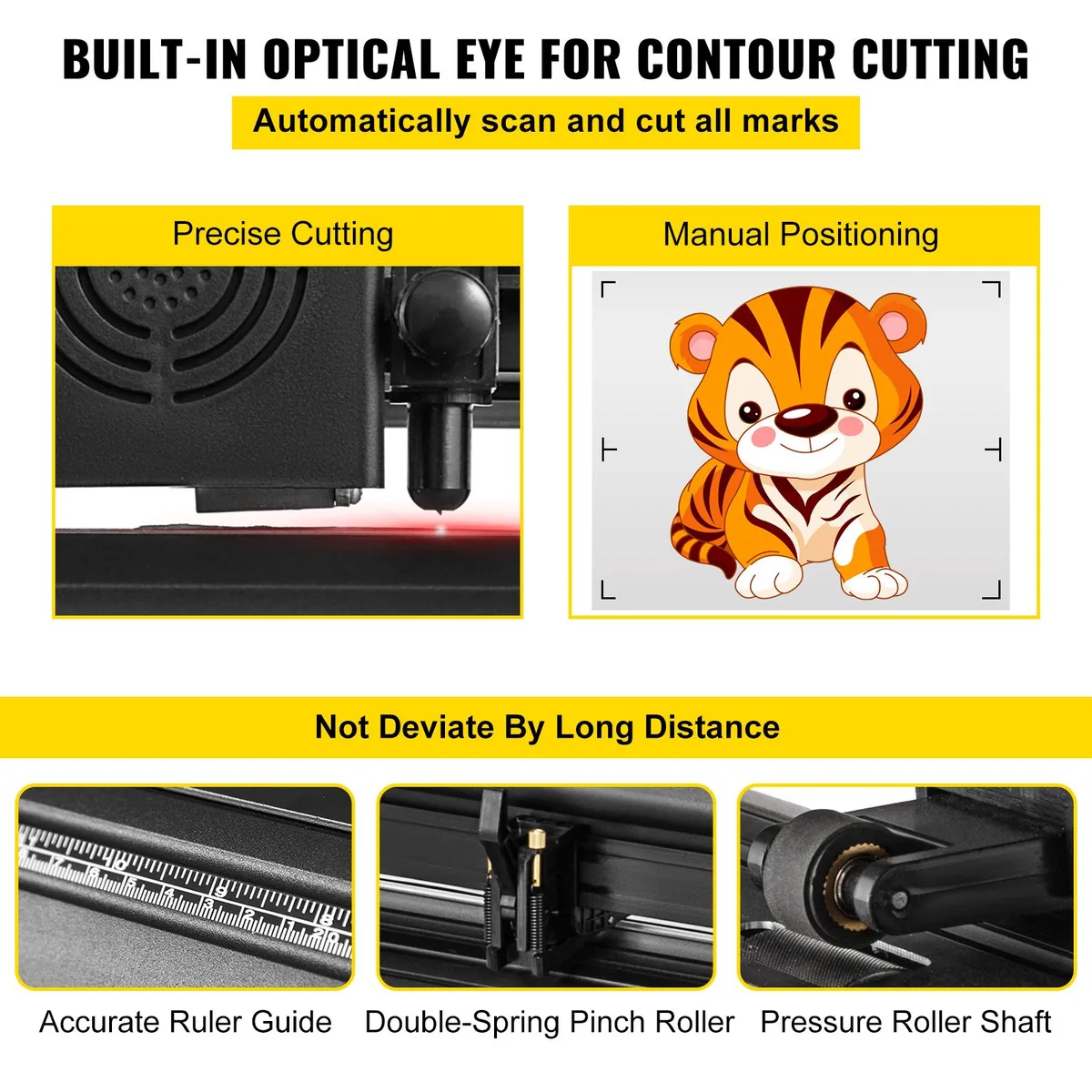

Built-in Optical Eye and ARM Motherboard

An integrated optical eye enables automatic contour cutting through the included Signmaster software, trimming excess material around printed designs. The machine uses an ARM motherboard with 128 M cache memory and offers COMPIM, USB and U-disk interfaces for offline file processing without input lag. An illuminated LED panel simplifies control, while adjustable cutting pressure from 20 to 500 g and speed from 20 to 800 mm/s suit varied media.

Serial and USB Connectivity Limits

Connectivity relies on serial port and USB links to a host running Windows XP through Windows 10, using DM/PL or HP/GL command languages. Operating conditions require 110 V power, ambient temperatures of 5 to 35 and relative humidity of 30% to 50%. Cutting accuracy is rated at +/- 0.0004 in, and the unit ships with a floor stand, cables, power cord and USB flash disk.

Highlights

  • Automatic contour cutting with built-in optical eye and Signmaster software
  • 1 in max paper feed and 49.6 in cutting width for large-format projects
  • Adjustable force 20-500 g and speed 20-800 mm/s suit varied materials
  • Offline U-disk operation plus USB and serial interfaces for flexible workflow
  • +/- 0.0004 in accuracy driven by stepper motor and ARM motherboard

Specifications

TypeOther Appliances

Questions about this item

What interfaces does the plotter use, and what is the maximum cutting speed?

The plotter connects via serial port, USB and U-disk, and the maximum cutting speed is 800 mm/s.

What are the machine dimensions and weight for floor-stand placement?

The assembled unit measures 59.84 x 24.81 x 43.31 in and weighs 44.09 lbs, so the floor stand needs that footprint and load capacity.

How is the Signmaster software installed, and which step is often missed?

Install Signmaster from the supplied USB flash disk, then select the DM/PL or HP/GL language driver that matches the plotter firmware; skipping the driver selection causes communication errors.
