Silver aluminum mounting brackets with adjustable tilt legs shown folded flat on a surface

VEVOR

VEVOR 50-Inch Solar Panel Mounting Brackets 0-90° Adjustable Tilt Mount Specialty Appliance

SKU CH-R36R-CQ9ZX

Adjustable 0-90° tilt brackets mount 100-550W solar panels on RVs, roofs or boats with 265 lbs aluminium strength

  • TypeOther Appliances
  • Width3.54

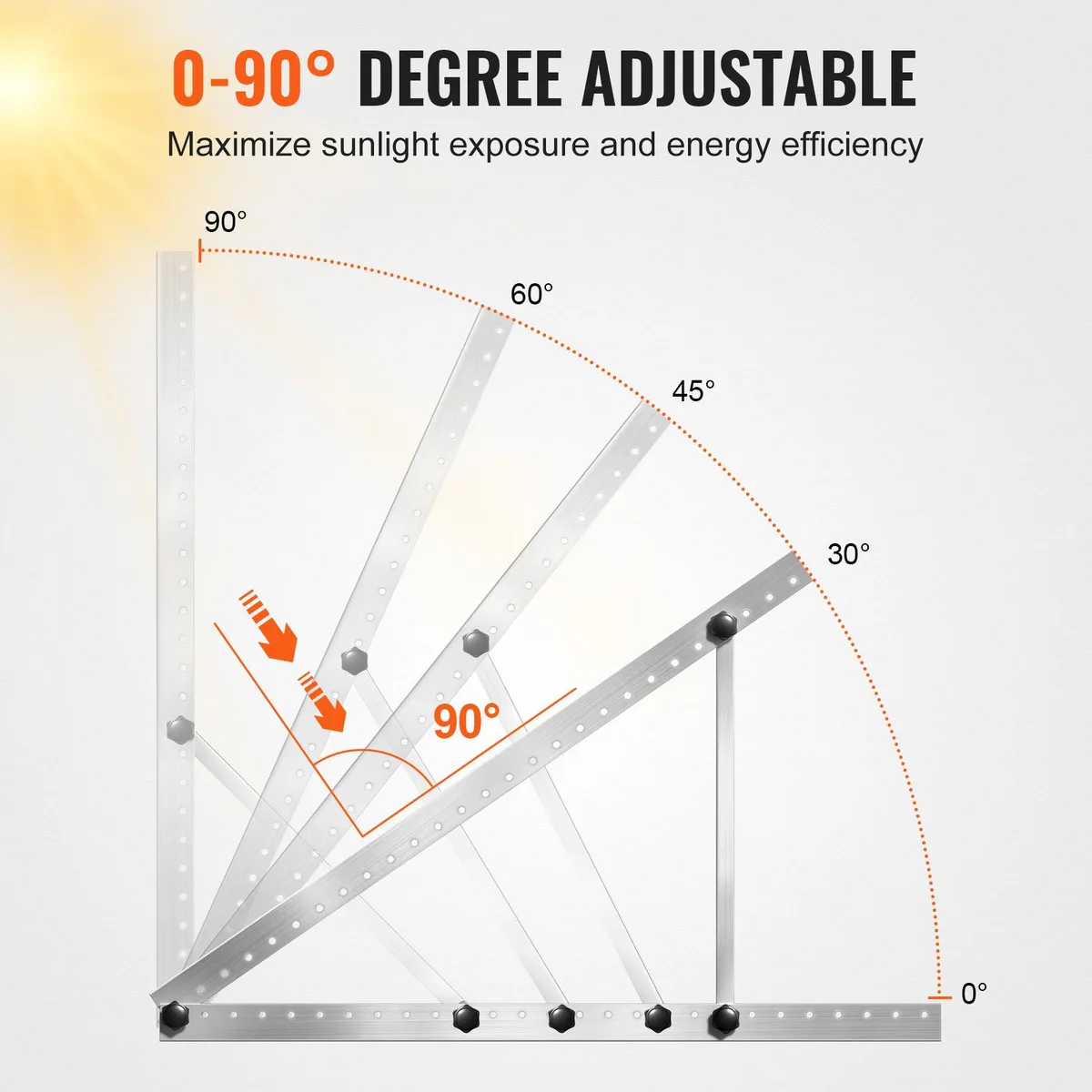

  • Adjust tilt from 0 to 90 degrees for optimal sun exposure

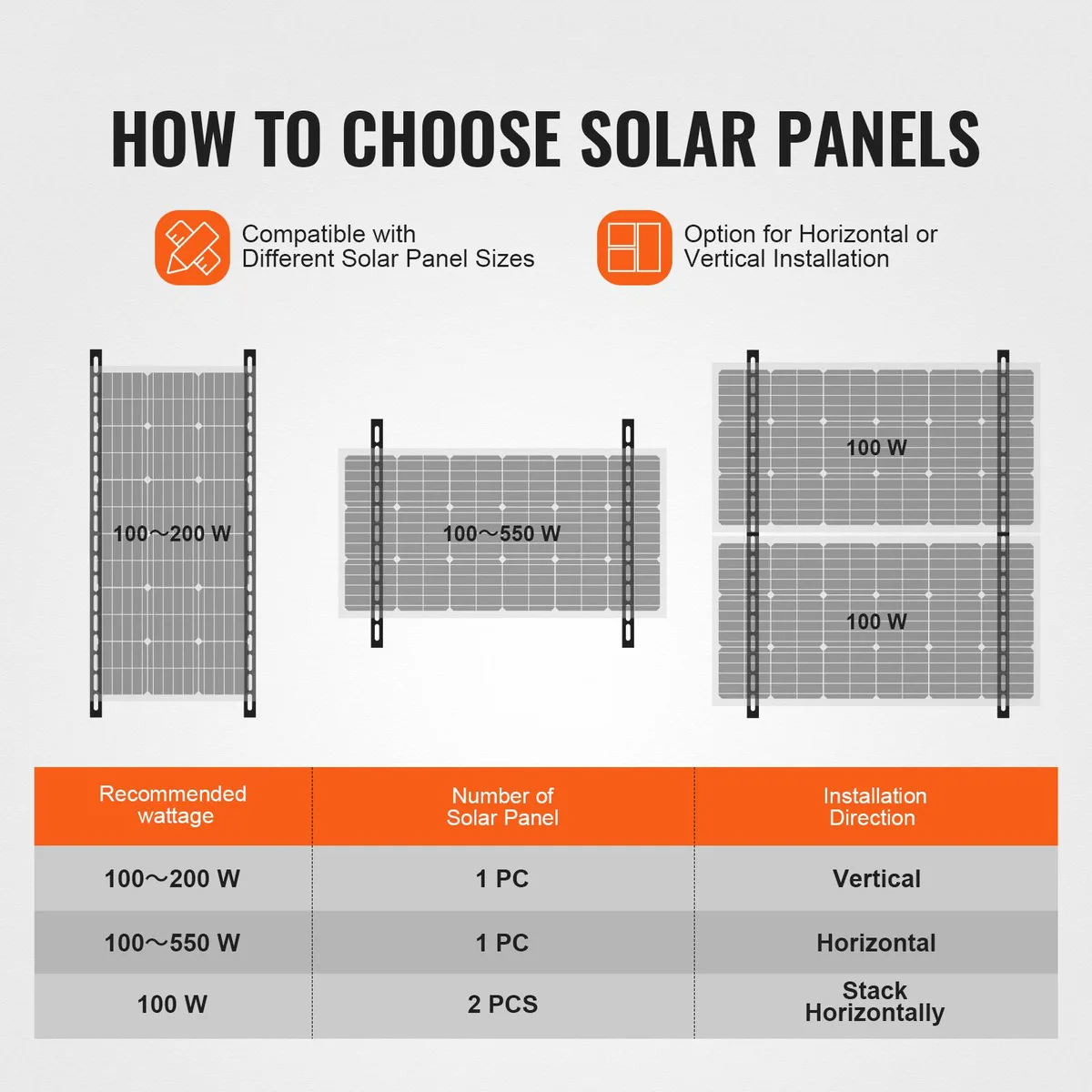

  • Supports panels from 100 to 550 watts across a 50 inch span
  • Aluminium alloy AL6005-T5 resists corrosion and weighs just 6.2 lbs
  • Rated for 265 lbs load capacity on RV roof or boat deck
  • Installs horizontally or vertically with included accessories

Adjustable 0-90° Tilt Mount

These 50-inch mounting brackets accept 100-550W solar panels and allow continuous angle adjustment between 0 and 90 degrees. The range lets installers optimise panel orientation for seasonal sun height on RV roofs, boats, sheds or off-grid cabins. Lightweight aluminium alloy construction keeps the assembly manageable during positioning.

Pre-Installation Checks

Verify that the mounting surface can support the combined weight of panels, brackets and the rated 265 lb load capacity. Confirm the panel frame dimensions suit the bracket width of 3.54 inches and that fixing points align with the supplied hardware. Ensure adequate clearance exists for the folded tilt legs when the array is laid flat.

Build Quality & Daily Implications

The brackets are fabricated from AL6005-T5 aluminium alloy with an anodised finish for corrosion, rust and weather resistance. At 6.2 lb the set is light enough for single-person handling yet rated for 120 kg static load. Folding tilt legs simplify seasonal angle changes and flat stowage during transport or high-wind events.

Highlights

  • Adjust tilt from 0 to 90 degrees for optimal sun exposure
  • Supports panels from 100 to 550 watts across a 50 inch span
  • Aluminium alloy AL6005-T5 resists corrosion and weighs just 6.2 lbs
  • Rated for 265 lbs load capacity on RV roof or boat deck
  • Installs horizontally or vertically with included accessories

Specifications

TypeOther Appliances
Width3.54

Questions about this item

What comes in the package and what must be purchased separately?

The package includes one set of solar panel mounting brackets and one set of assembly accessories. Solar panels, mounting hardware for the roof or RV surface, and any wiring components are not included and must be bought separately.

Which version or capacity should I choose for my panel?

These brackets support panels from 100 to 550 W and carry up to 265 lbs. Choose them if your panel falls within that power range and weight limit; the 50-inch length and 0-90° tilt suit most RV, boat and off-grid roof layouts.

What does the 265 lb load rating mean once the mount is on my RV roof?

The aluminium AL6005-T5 frame is rated to hold 265 lbs (120 kg) distributed across the 50-inch span. In practice this covers most 100-550 W panels with a safety margin for wind uplift, provided the roof fixings are equally strong.
