Pair of black carbon steel undermount drawer slides, 1000 mm long, full-extension ball-bearing tracks with mounting screws

VEVOR

VEVOR 4801.1000.BK Undermount Drawer Slides 40 inch 260 lb

SKU CH-5QDD-ZG2A3

Full-extension undermount slides carry 260 lb drawers and include mounting screws

  • TypeOther Appliances
  • Width5.12
  • Full-extension travel gives complete drawer access
  • 260 lb load rating supports heavy contents
  • Carbon steel construction resists wear and corrosion
  • 40 inch length fits deep cabinet spaces
  • Includes 24 self-tapping screws for quick installation

Undermount Drawer Slides for Heavy Drawers

These undermount drawer slides mount beneath the drawer box to provide full-extension travel on ball-bearing rails. Each pair is built from carbon steel and rated for a 260 lb load capacity. The 40 inch length suits deep under-stair cabinets or tall pantry drawers. They arrive new with self-tapping screws and a user manual for DIY installation.

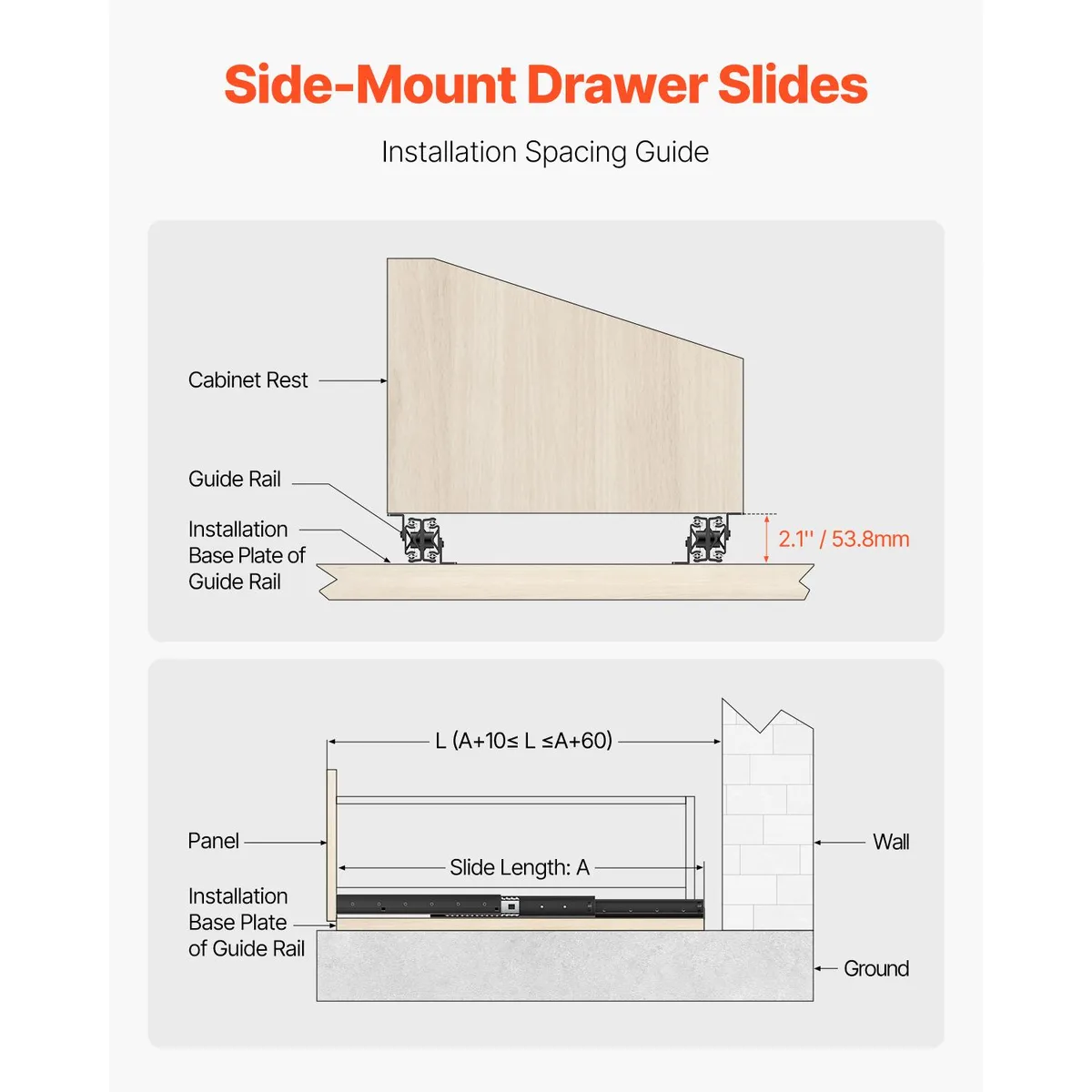

Build Integration and Clearance

The slides measure 39.37 x 2.95 x 2.17 inches, so the cabinet opening must accommodate the 2.95 inch width and 2.17 inch height per side. A 5.12 inch overall width specification guides the drawer box design. Included ST4 self-tapping screws secure the rails without separate fasteners. Builders needing a shorter travel length or a side-mount profile will need a different slide style.

Sustained Load Behaviour

Ball-bearing races distribute the 260 lb rating across the full extension, reducing point loading during repeated daily cycles. Carbon steel construction resists flex when the drawer remains fully loaded for long periods. The 22.93 lb pair weight adds rigidity but requires solid cabinet framing. Installers without access to a drill or level may find alignment difficult.

Highlights

  • Full-extension travel gives complete drawer access
  • 260 lb load rating supports heavy contents
  • Carbon steel construction resists wear and corrosion
  • 40 inch length fits deep cabinet spaces
  • Includes 24 self-tapping screws for quick installation

Specifications

TypeOther Appliances
Width5.12

Questions about this item

Will the 260 lb weight capacity hold up during daily full-extension cycles?

The slides are rated for 260 lbs per pair and use carbon-steel ball-bearing tracks designed for repeated full-extension operation.

How much heat or noise do the 39.37 inch carbon-steel rails produce after hours of opening and closing?

Metal-on-metal ball bearings generate minimal audible click and negligible heat; no active cooling or lubrication schedule is required.

Which mounting screws and clearance do I need before installing the 1000 mm undermount pair?

The box includes 24 ST4 self-tapping screws; allow 75 mm width and 55 mm height per slide for proper undermount fit.
