Silver brushed DC motor kit with controller throttle and mounting hardware

VEVOR

VEVOR 450W 36V 3000rpm Brushed DC Motor Kit

SKU CH-M07V-97Q9Y

A 450 W brushed DC motor kit with 36 V supply, 3000 rpm rated speed and 1.43 N·m torque for go-kart or e-bike builds

  • TypeOther Appliances
  • Width9.65
  • 450 W output with 78 % conversion efficiency for strong performance and lower energy use
  • 3000 rpm rated speed and 1.43 N·m torque deliver up to 19.3 mph on 16-inch wheels
  • 100 % copper core motor resists heat and cold for reliable operation in extreme weather
  • Complete kit includes controller, thumb throttle, chain, sprockets and mounting hardware for quick installation
  • 18:1 gear ratio reduces motor speed to 410 rpm under load for smooth, controlled acceleration

450W Brushed DC Motor Kit

This 36V brushed DC motor kit delivers 450W of rated power at 3000 RPM for go-kart, e-bike and scooter builds. The package includes the motor with flywheel, chain, custom sprocket, controller, mounting plate, two throttle options and all mounting hardware. Rated torque of 1.43 N·m supports loads up to 100 kg.

7.18:1 Gear Ratio Determines Output Speed

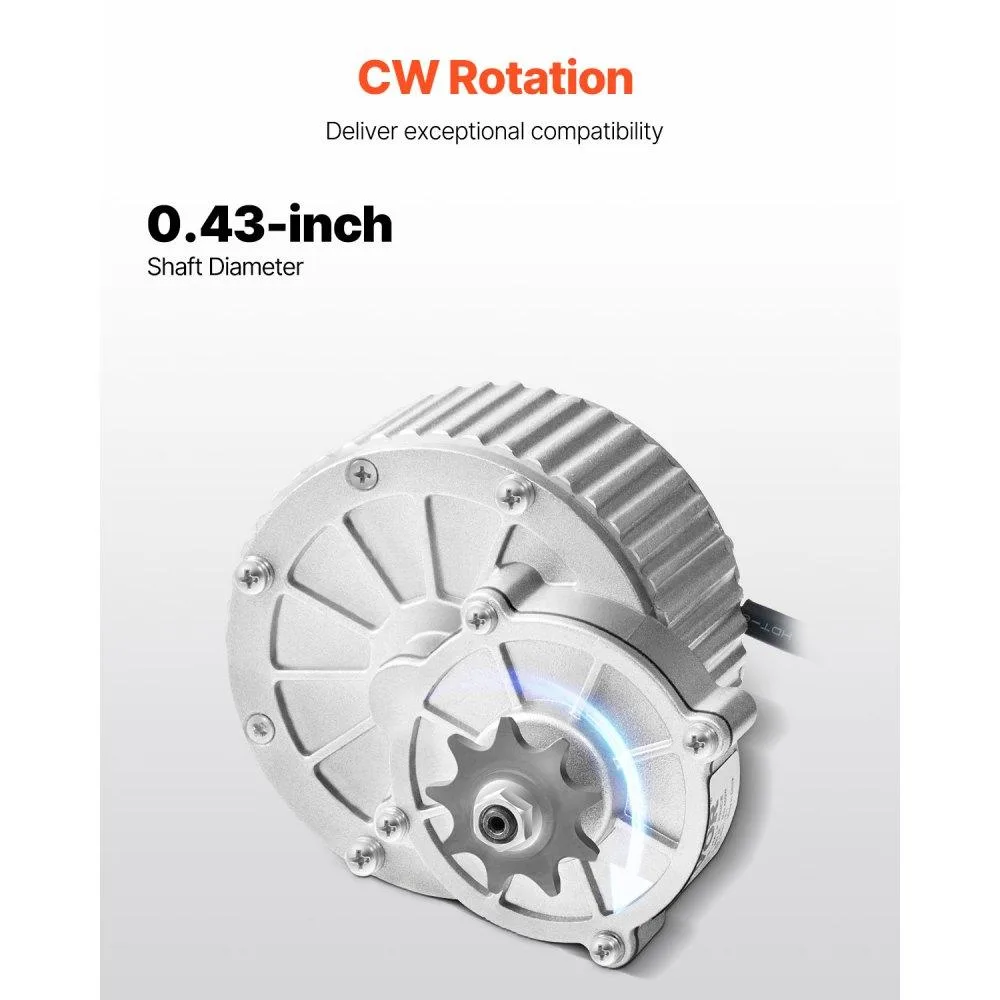

The integrated 7.18:1 reduction brings rated speed to 410 RPM and no-load speed to 560 RPM at the output shaft. With a 16-inch wheel this translates to 19.3 MPH under load and 26.7 MPH unloaded. Rotation is clockwise only, so the drivetrain must match that direction.

70 dB Noise and 78% Efficiency

Copper-core construction provides heat and cold resistance while the motor runs at approximately 70 dB. Conversion efficiency of 78% limits waste heat during typical operation. The unit weighs 3.8 kg and measures 117 x 112 x 129 mm for compact mounting.

Highlights

  • 450 W output with 78 % conversion efficiency for strong performance and lower energy use
  • 3000 rpm rated speed and 1.43 N·m torque deliver up to 19.3 mph on 16-inch wheels
  • 100 % copper core motor resists heat and cold for reliable operation in extreme weather
  • Complete kit includes controller, thumb throttle, chain, sprockets and mounting hardware for quick installation
  • 18:1 gear ratio reduces motor speed to 410 rpm under load for smooth, controlled acceleration

Specifications

TypeOther Appliances
Width9.65

Questions about this item

What real-world speed can I expect from the 3000 rpm rated speed on my build?

With a 16-inch wheel the kit reaches 19.3 mph at rated speed and 26.7 mph no-load; after the 7.18:1 gear reduction the output shaft turns at 410 rpm rated and 560 rpm no-load.

How does the 36 V supply and included controller limit performance?

The motor is rated for 36 V and 450 W with 78 % conversion efficiency; the supplied controller and thumb throttle govern current to those limits, capping output at the rated torque of 1.43 N·m.

What mounting footprint and hardware do I need to bolt this motor in place?

The motor body measures 117 x 112 x 129 mm and weighs 3.8 kg; the kit includes a mounting plate, two fixing plates, two rubber pads and nine sets of M6 × 45 mm bolts for installation.
