Silver metal rotary table with three-jaw chuck, handles and T-bolts on dark surface

VEVOR

VEVOR 4" Rotary Table HV-4-KP 80 mm Chuck 1:36

SKU CH-54PR-KT240

A 100 mm rotary table with 1:36 worm gear and 80 mm chuck for milling and indexing

  • TypeOther Appliances
  • Width7.09
  • Precise 1:36 worm gear for fine indexing
  • 4 in table diameter handles diverse workpieces
  • 80 mm 3-jaw chuck clamps 2-70 mm range
  • Horizontal and vertical mounting expands machining options
  • 3 kg net weight ensures stable operation

4-Inch Rotary Table with 80 mm Chuck

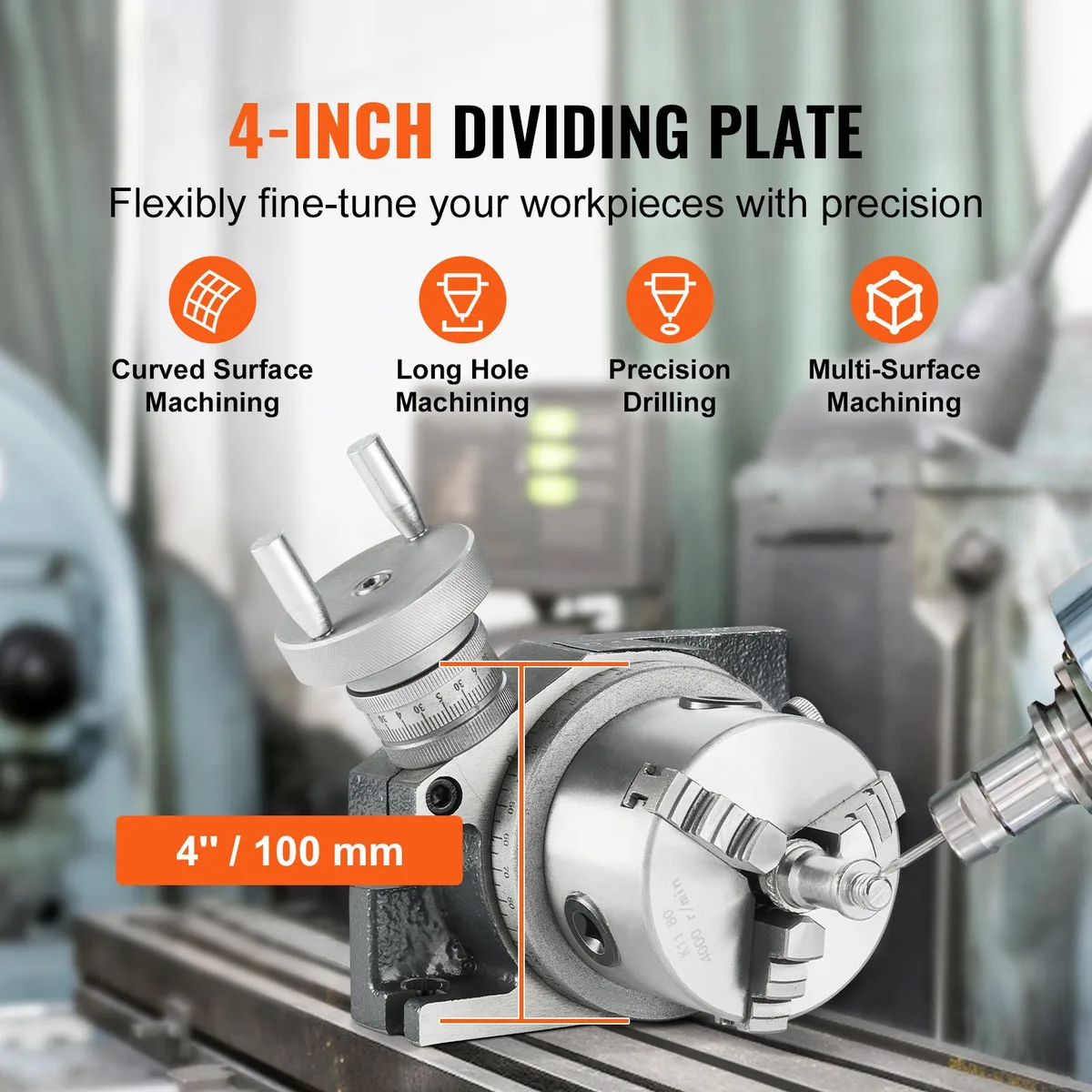

The VEVOR HV-4-KP is a 100 mm milling machine rotary table built for precise positioning, rotation, indexing and clamping of wood or metal workpieces. It suits small milling machines in automotive, mold-making and general machinery workshops where curved surface machining, elongated hole processing or precision drilling are required. A 1:36 worm gear ratio and a handwheel scale value of 6 minutes with 100 divisions support accurate angular adjustments.

Bundled Chuck, Jaws and Mounting Hardware

A 3.1 inch three-jaw chuck with serrated jaws is included, providing an external clamping range of 0.08 to 0.9 inches and 0.9 to 2.5 inches with the supplied external jaws, plus an internal clamping range of 1.0 to 2.8 inches. Two handles, a chuck wrench, three external jaws, two M10 by 40 T-bolts and two M10 nuts arrive in the box, so the table can be secured to a machine T-slot and the workpiece clamped without extra purchases.

Check T-Slot Size and Work Envelope First

Verify that your milling machine accepts M10 T-bolts and that the table’s 6.3 by 5.8 by 4.7 inch footprint fits the available work area. The centre height for vertical mounting is 2 inches and the top height for horizontal mounting with the chuck is 4.7 inches, so confirm these clearances suit your spindle travel and fixture plans. No vernier scale is fitted, so consider whether the handwheel graduations alone meet your indexing resolution needs.

Highlights

  • Precise 1:36 worm gear for fine indexing
  • 4 in table diameter handles diverse workpieces
  • 80 mm 3-jaw chuck clamps 2-70 mm range
  • Horizontal and vertical mounting expands machining options
  • 3 kg net weight ensures stable operation

Specifications

TypeOther Appliances
Width7.09

Questions about this item

What is the worm-gear ratio that determines backlash and wear on this rotary table?

The worm-gear ratio is 1:36, which sets the mechanical advantage and wear rate of the gearing.

What is the smallest angular increment the handwheel can reliably indicate during long indexing sessions?

The handwheel scale reads in 6-minute increments across 100 divisions, so cumulative error is limited to that resolution.

How much does the assembly weigh when mounted horizontally for extended milling runs?

Net weight is 11.7 lbs (5.3 kg ± 3 %), giving a stable mass for continuous operation.
