Silver rotary vane vacuum pump with manifold gauge set and three-color hoses in carry bag

VEVOR

VEVOR 4 CFM AC Vacuum Pump & Gauge Set 1/3 HP VP135

SKU CH-ZN14-ZSBEC

A 4 CFM single-stage rotary vane pump with a PRO manifold gauge kit reaches 5 Pa ultimate vacuum and includes hoses, adapters, leak detector and carry bag for R134a, R22 and R410a systems

  • TypeOther Appliances
  • Width11.02
  • Efficient evacuation with 4 CFM single-stage pump
  • Deep vacuum to 5 Pa for thorough moisture removal
  • Accurate monitoring via ±1.6% manifold gauge
  • Ready for R134a, R22, R410a systems

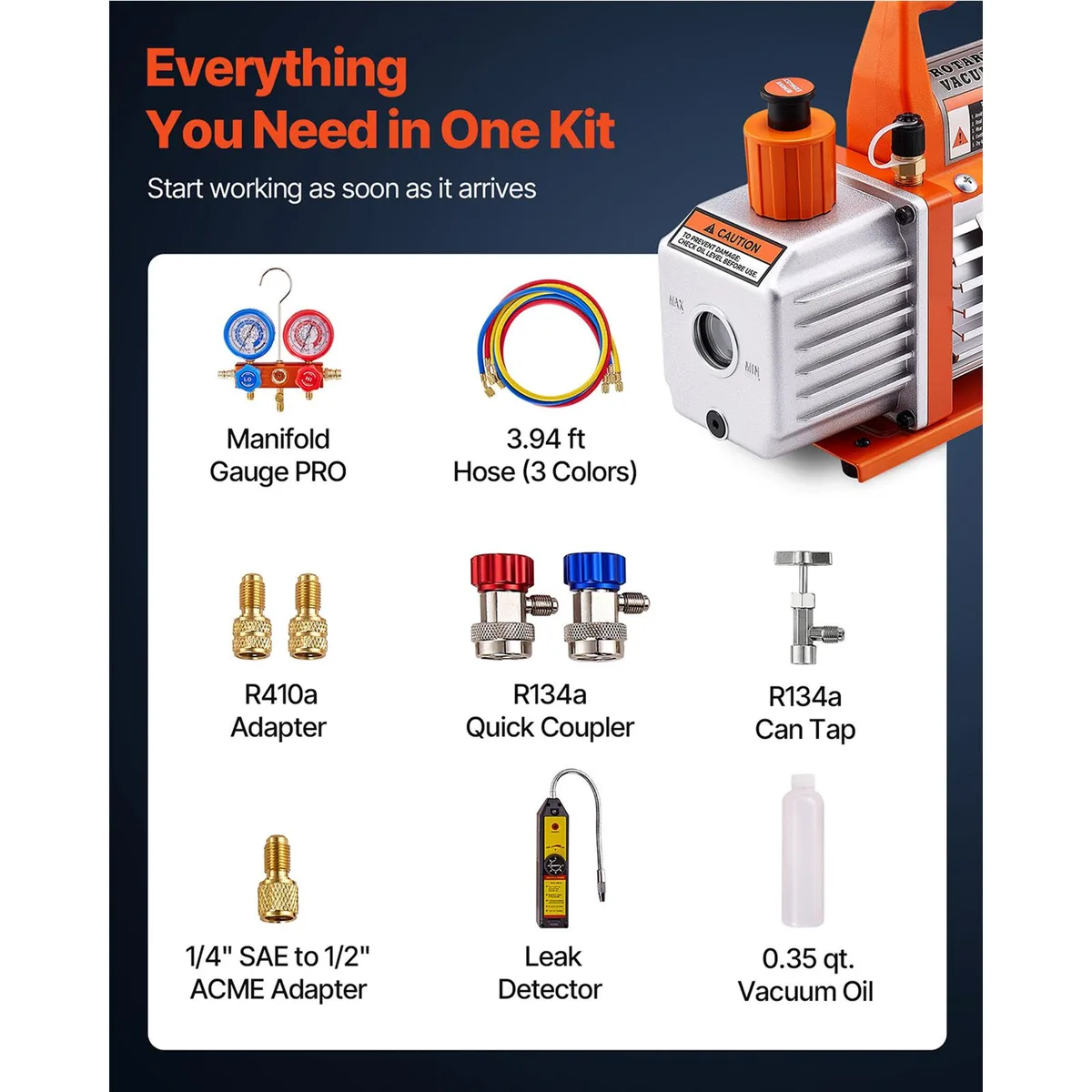

  • Portable kit includes hoses, adapters, leak detector, bag

Versatile HVAC Service Kit

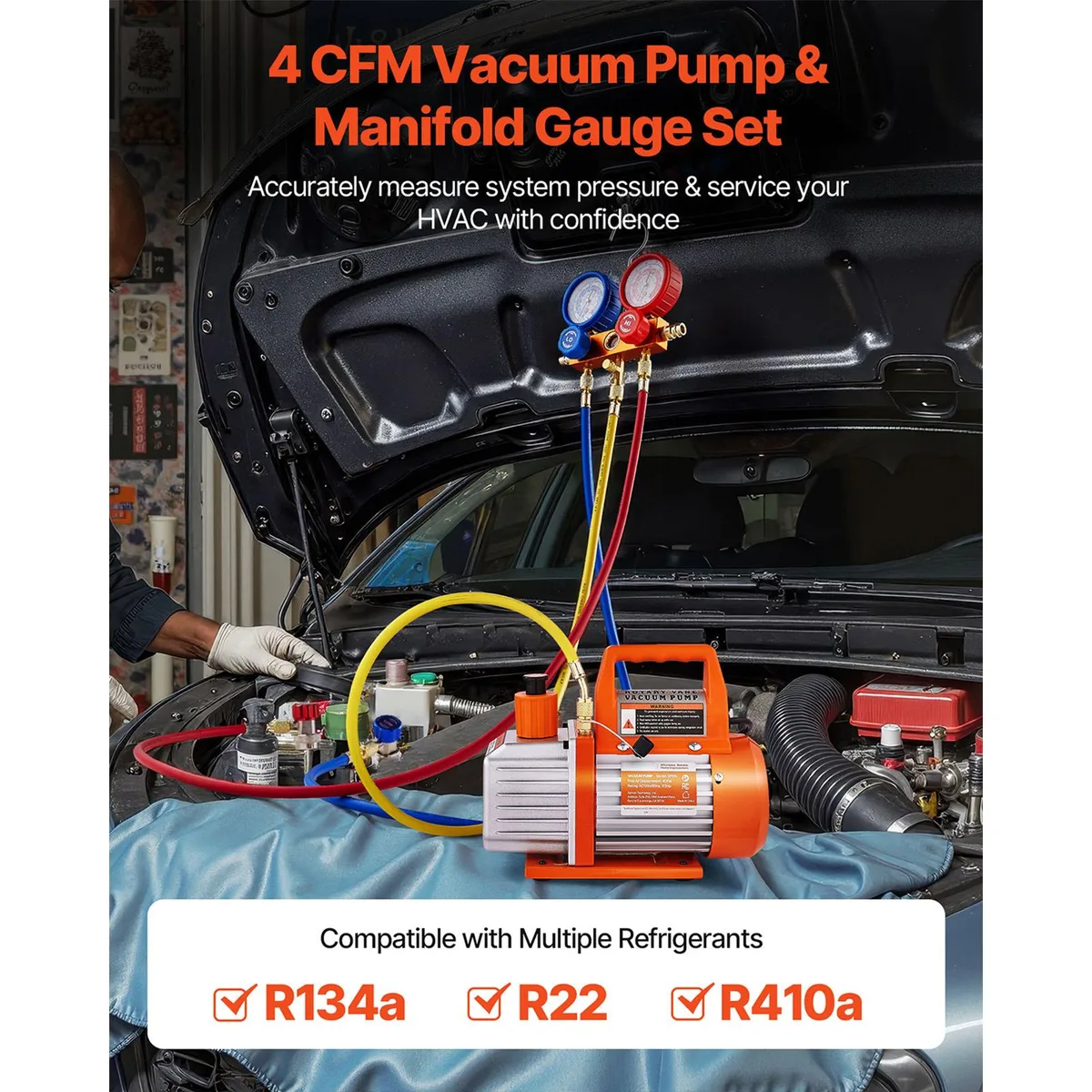

This VEVOR VP135 set combines a single-stage rotary vane vacuum pump with a manifold gauge kit for automotive and stationary air-conditioning work. It handles non-flammable refrigerants including R134a, R22 and R410a. The package adds a leak detector, coloured hoses, adapters and a carry bag so technicians can evacuate, charge and test systems in one kit.

Upgrading from Basic Pump-Only Units

A standalone pump leaves you guessing at system pressures and leaks. This bundle adds a PRO manifold gauge with ±1.6% accuracy and a dual bar/psi display, plus a 330 ml oil bottle for the pump’s 0.27 qt reservoir. The jump is worth it when you need verified evacuation to 5 Pa and live pressure readings during recharge without buying separate instruments.

Build-Around Requirements and Freedoms

The pump draws 1/3 HP from a standard mains supply and weighs 16.54 lbs, so it sits on a bench or rolls in the included bag. Three-colour hoses run 3.94 ft to reach service ports, while the 1/4" SAE intake and supplied adapters cover common fittings. You gain a complete evacuate-charge-test loop but must supply refrigerant cans and a power outlet; no internal tank or battery is included.

Highlights

  • Efficient evacuation with 4 CFM single-stage pump
  • Deep vacuum to 5 Pa for thorough moisture removal
  • Accurate monitoring via ±1.6% manifold gauge
  • Ready for R134a, R22, R410a systems
  • Portable kit includes hoses, adapters, leak detector, bag

Specifications

TypeOther Appliances
Width11.02

Questions about this item

What intake fitting size does the VP135 pump use for hose connection?

The pump has a 1/4" SAE intake fitting that matches the included three-color hose set for direct attachment.

How do you prime the pump with oil before first use, and what volume is required?

Fill the pump through the oil port until the sight window shows the correct level; the reservoir holds 0.27 qt (260 ml) and a 330 ml bottle is supplied.

When should the vacuum pump oil be changed, and what capacity does the reservoir hold?

Change the oil when it appears cloudy or after heavy use; the reservoir capacity is 0.27 qt (260 ml) and a 330 ml refill bottle is included.
