VEVOR 30 ton H-frame pneumatic hydraulic shop press, steel frame, adjustable work table, pressure gauge visible

VEVOR

VEVOR 30 T H-Frame Pneumatic Hydraulic Shop Press

SKU CH-RBY9-1VP8P

30-tonne pneumatic hydraulic press with adjustable worktable for straightening, bending and installing bushings, ball joints and U-joints

  • Width10.63
  • 30 tonne capacity handles heavy bushings, ball joints and metal forming
  • Pneumatic assist pump connects to an air compressor for easier operation
  • Adjustable worktable with eight height positions from 2.6 to 36.9 inches
  • Safety relief valve prevents overload and protects cylinder seals
  • Sturdy H-frame construction weighs 249.7 lbs for stable floor use

30 Ton H-Frame Shop Press

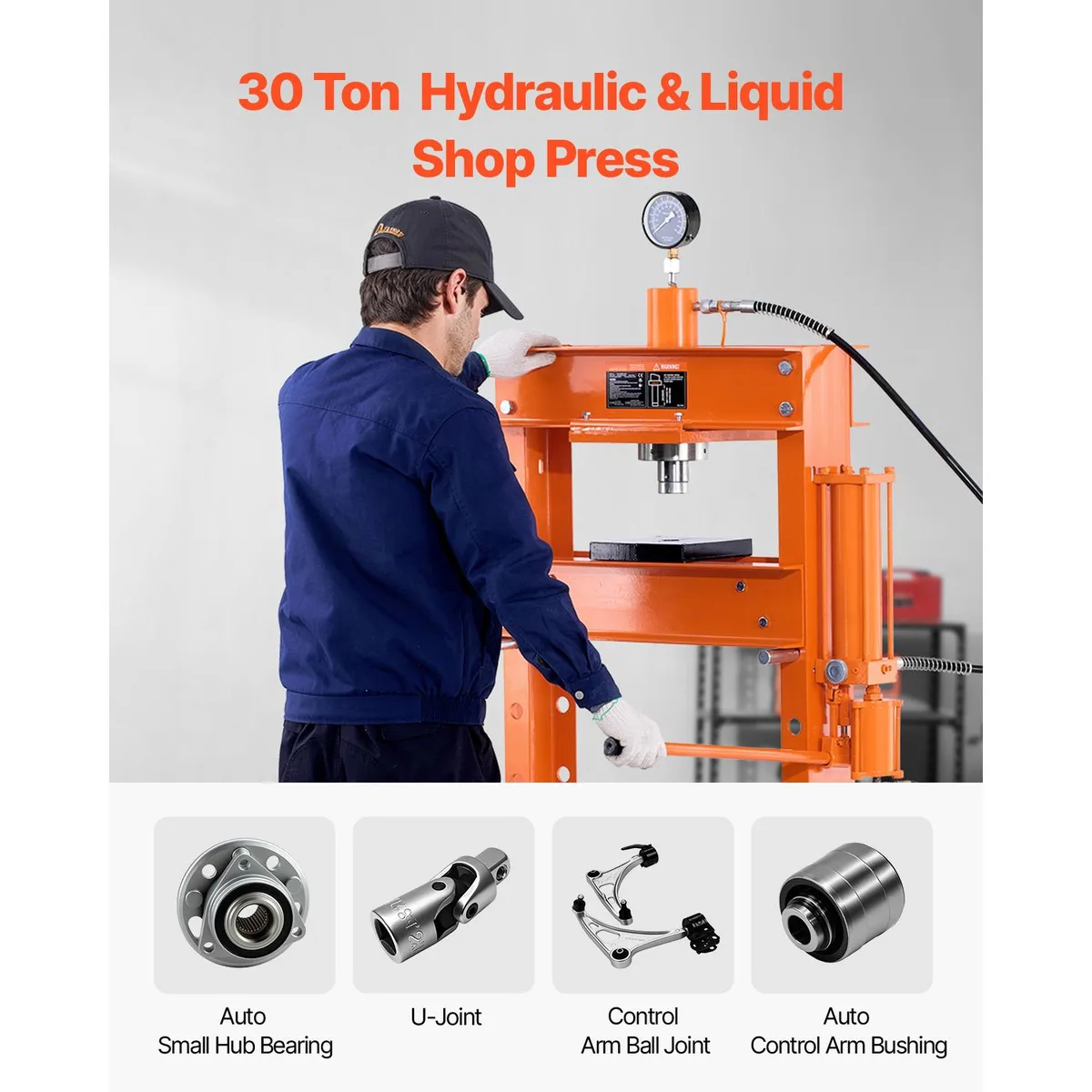

The VEVOR 30 T H-frame pneumatic hydraulic press is built for garage and workshop tasks such as removing bushings, ball joints and U-joints as well as straightening, bending and stamping metal parts. It combines a hydraulic cylinder with a pneumatic assist pump that connects to an air compressor for easier operation. A security regulator valve helps prevent overloading. The unit ships new and includes a pressure gauge, press plate and triangular support.

Suited For Heavy-Duty Automotive Work

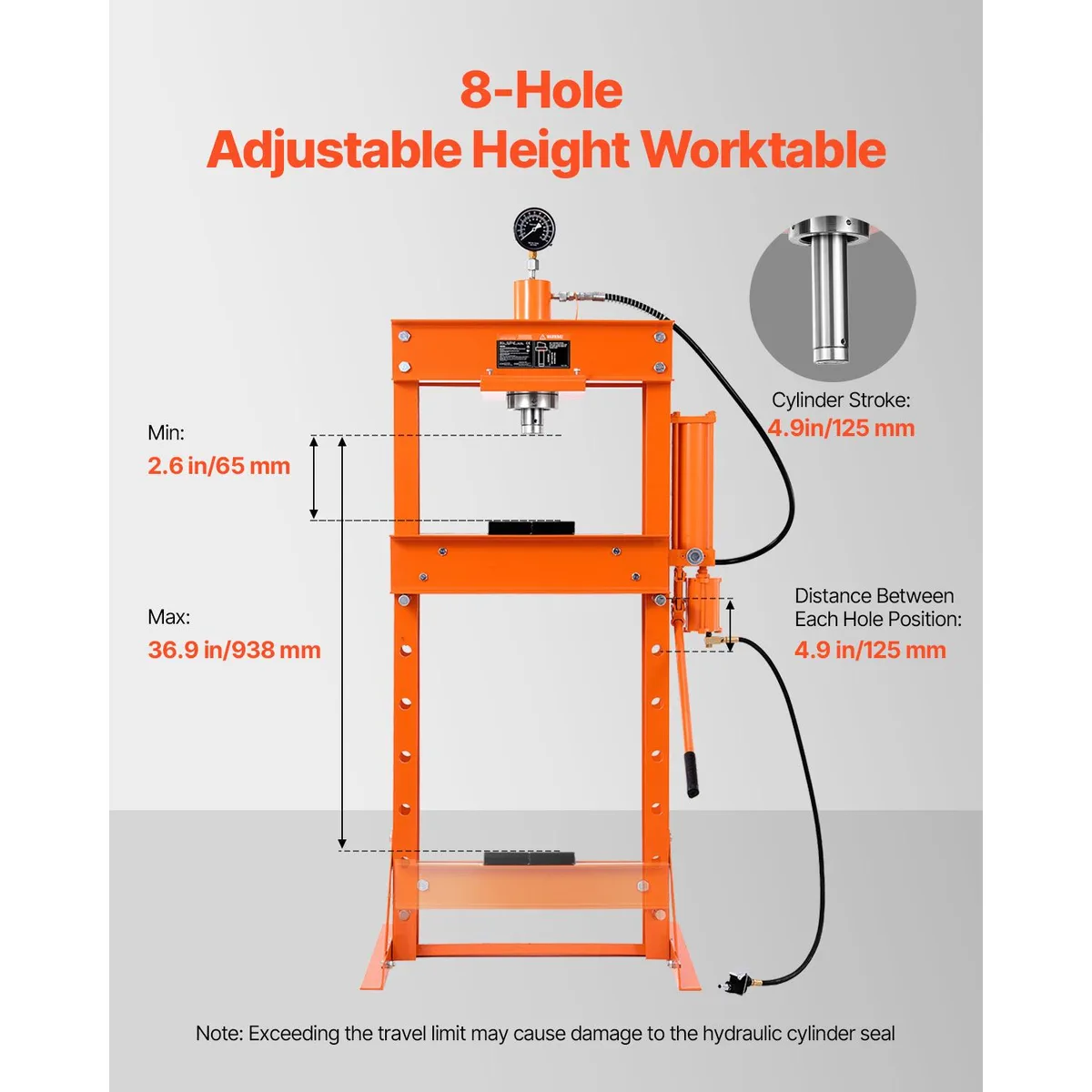

This press suits professional mechanics and serious DIYers who need 30 tonnes of force for suspension components and metal fabrication. The adjustable worktable offers eight height positions from 65 mm to 938 mm, allowing flexible positioning for different jobs. Buyers who only perform light occasional maintenance or who lack a suitable air compressor for the pneumatic pump should consider a smaller manual press instead.

Capacity And Practical Limits

Rated at 30 tonnes with a cylinder stroke of 125 mm, the press comfortably handles pressing bearings, straightening shafts and forming thicker plate within that stroke length. The hydraulic pump operates between 0.8 and 1.2 MPa using 15# hydraulic oil. Workpieces taller than the maximum table height or requiring travel beyond the 125 mm stroke will exceed the press's range, and exceeding the stroke can damage cylinder seals.

Highlights

  • 30 tonne capacity handles heavy bushings, ball joints and metal forming
  • Pneumatic assist pump connects to an air compressor for easier operation
  • Adjustable worktable with eight height positions from 2.6 to 36.9 inches
  • Safety relief valve prevents overload and protects cylinder seals
  • Sturdy H-frame construction weighs 249.7 lbs for stable floor use

Specifications

Width10.63

Questions about this item

What air compressor pressure range is needed to run the pneumatic pump on this 30 T H-frame press?

The pneumatic pump operates between 0.8 and 1.2 MPa, so your compressor must supply air within that pressure band for the press to function correctly.

Will the 855 mm frame width fit between the existing bench legs in my garage?

The press frame measures 855 mm wide, 700 mm deep and 1750 mm high; compare those dimensions to the clear space between your bench legs before positioning the unit.

How do I confirm the press is delivering its rated force after assembly?

Watch the included 30 T pressure gauge while pressing; the needle should rise smoothly up to the 30 T mark without sticking, indicating the hydraulic system is generating the specified load.
