A 10 inch three jaw lathe chuck with silver metal jaws and a dark body, shown with a T key and hex wrench

VEVOR

VEVOR 3-Jaw Lathe Chuck 10'' 0.24-9.84 in Clamping Range

SKU CH-6DPH-XFY6T

Self-centering 10 in chuck with 0.24-9.84 in clamping range and 0.05 mm bearing tolerance for lathe, milling and drilling machines

  • TypeOther Appliances
  • Width12.2
  • HT300 construction with hardened 20Cr jaws and 40Cr scroll resists wear and rust

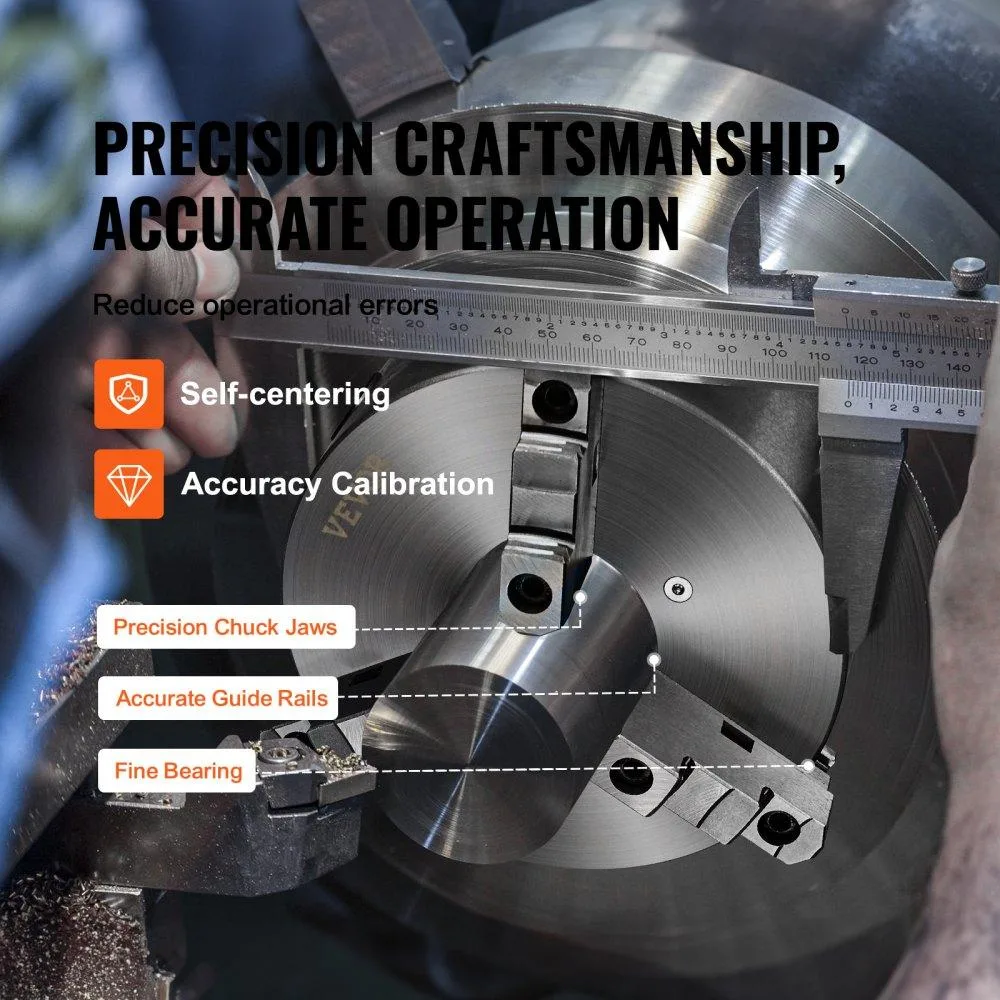

  • 05 mm bearing tolerance and bevel-gear drive deliver precise self-centering
  • Reversible jaws clamp internally from 0.24 in to 4.33 in and externally from 3.15 in to 9.84 in
  • 10 in chuck diameter and 80 mm bore suit lathes, milling and drilling machines
  • Includes T-key, three fixing screws, hex wrench and manual for immediate setup

10-inch Self-Centering Chuck

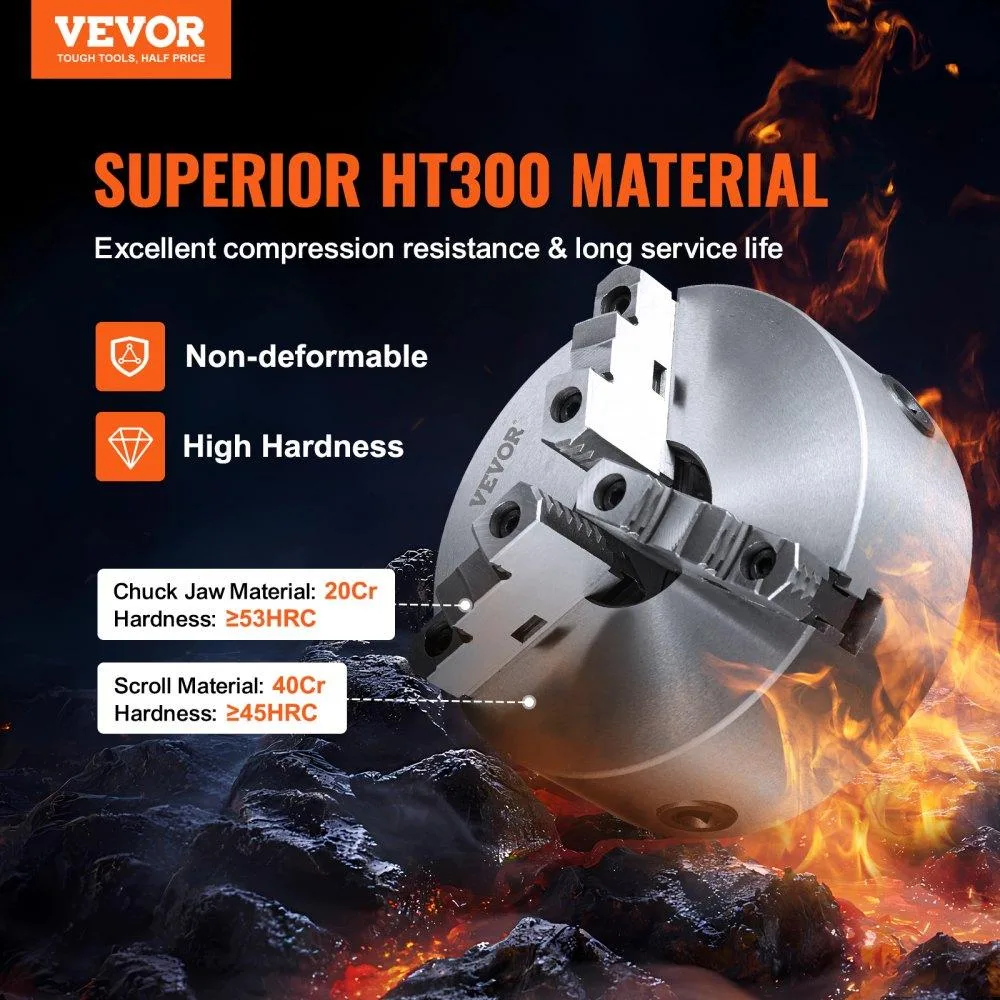

The VEVOR 3-jaw lathe chuck is built from HT300 cast iron with 20Cr steel jaws hardened to 53HRC and a 40Cr scroll at 45HRC. A quenching process adds rust resistance for long service in milling, drilling and 3D-printer machining centres. Bearing tolerance is held to 0.05 mm.

Upgrade from Smaller Chucks

Internal jaws grip workpieces from 0.24 to 4.33 in while external jaws extend the range to 9.84 in, replacing chucks that cannot span both small and large diameters. The jump is worthwhile when a single setup must handle stock from 6 mm up to 250 mm without changing fixtures.

Build Integration

The 80 mm bore and 3-M10 fixed threads mount directly to compatible lathe spindles. A T-key, three fixing screws and a hexagon wrench are included for installation. The 252 by 190 mm footprint and 22.3 kg weight demand a rigid machine base but free the operator from sourcing separate clamping hardware.

Highlights

  • HT300 construction with hardened 20Cr jaws and 40Cr scroll resists wear and rust
  • 05 mm bearing tolerance and bevel-gear drive deliver precise self-centering
  • Reversible jaws clamp internally from 0.24 in to 4.33 in and externally from 3.15 in to 9.84 in
  • 10 in chuck diameter and 80 mm bore suit lathes, milling and drilling machines
  • Includes T-key, three fixing screws, hex wrench and manual for immediate setup

Specifications

TypeOther Appliances
Width12.2

Questions about this item

What spindle bore and mounting threads does the 10 in chuck require?

The chuck needs an 80 mm spindle bore and three M10 fixing screws for mounting.

How do you switch the jaws between internal and external clamping, and what mistake should be avoided?

Remove the jaws with the T-key, reverse their order, and reinstall; do not force the scroll past its 0.05 mm bearing tolerance.

When should the 20Cr jaws or 40Cr scroll be replaced based on their hardness ratings?

Replace jaws if wear exceeds the 53HRC surface or the scroll if the 45HRC gear teeth show pitting or backlash.
