Silver aluminium hydraulic gear pump with black inlet and outlet ports, rectangular body and keyed output shaft

VEVOR

VEVOR 22GPM 2-Stage 4000PSI Hydraulic Log Splitter Pump

SKU CH-Y6ZX-XX8GH

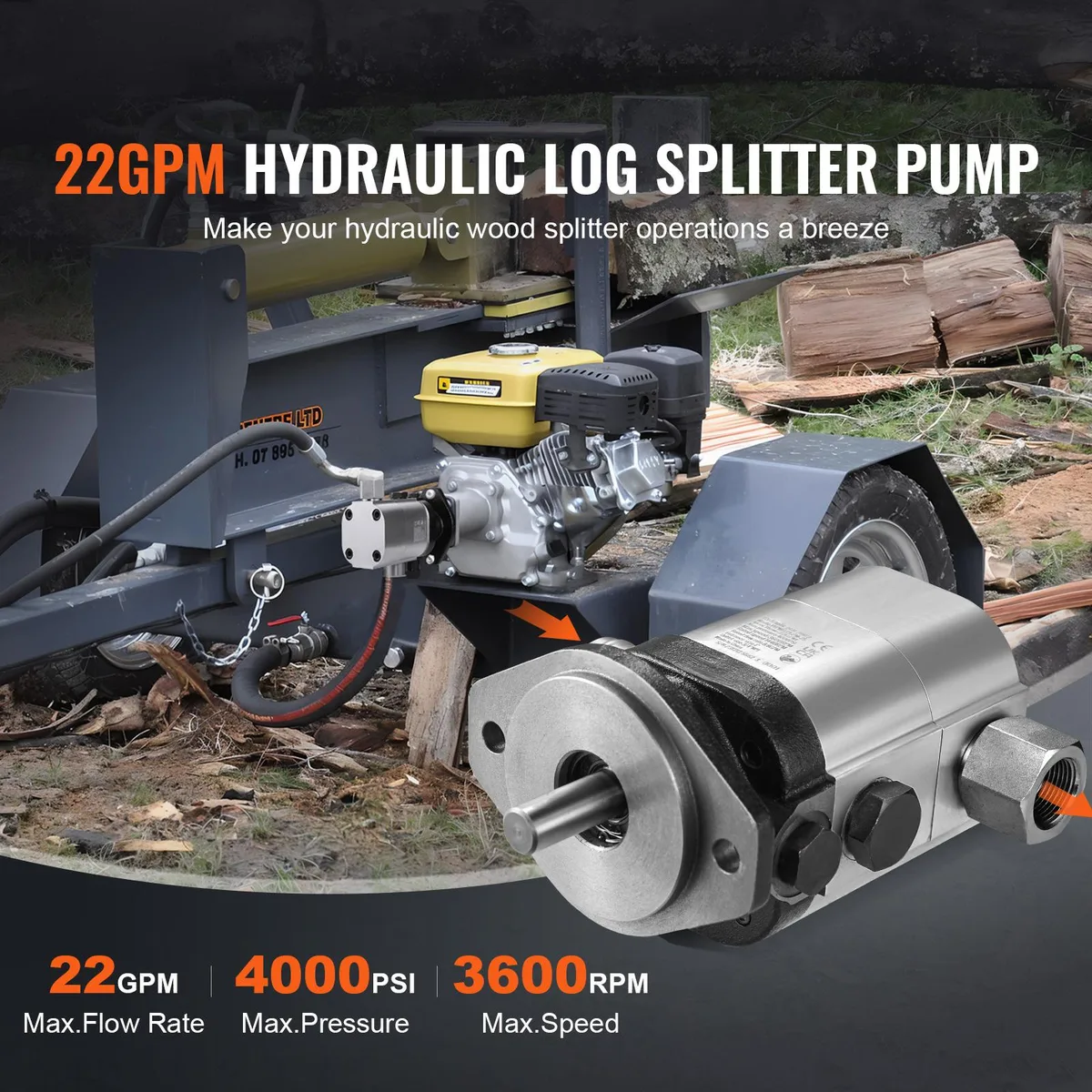

Two-stage hydraulic gear pump delivers 22 GPM at 4000 PSI for small-engine log splitters and snowplows

  • TypeOther Appliances
  • Width9.45
  • Splits wood fast with 22 GPM flow rate
  • Delivers 4000 PSI pressure for tough logs
  • Runs at 3600 RPM for high-speed operation
  • Lightweight aluminium housing weighs 12.3 lbs
  • Fits 5.5 to 7.5 HP small engines

22 GPM Two-Stage Hydraulic Pump

This two-stage hydraulic gear pump delivers a maximum flow of 22 GPM at up to 4000 PSI for log splitters and snowplows. It mounts on small engines rated 5.5 to 7.5 HP with a 3600 RPM idle speed. The aluminum alloy housing weighs 12.3 lbs and measures 4.9 by 5.9 by 8 inches.

Sustained Operation at 3600 RPM

Running continuously at the rated 3600 RPM keeps the pump at its peak 22 GPM output and 4000 PSI pressure limit. The two-stage design shifts from high-volume low-pressure to lower-volume high-pressure flow as the ram meets resistance. Aluminum construction dissipates heat during extended cycles without active cooling.

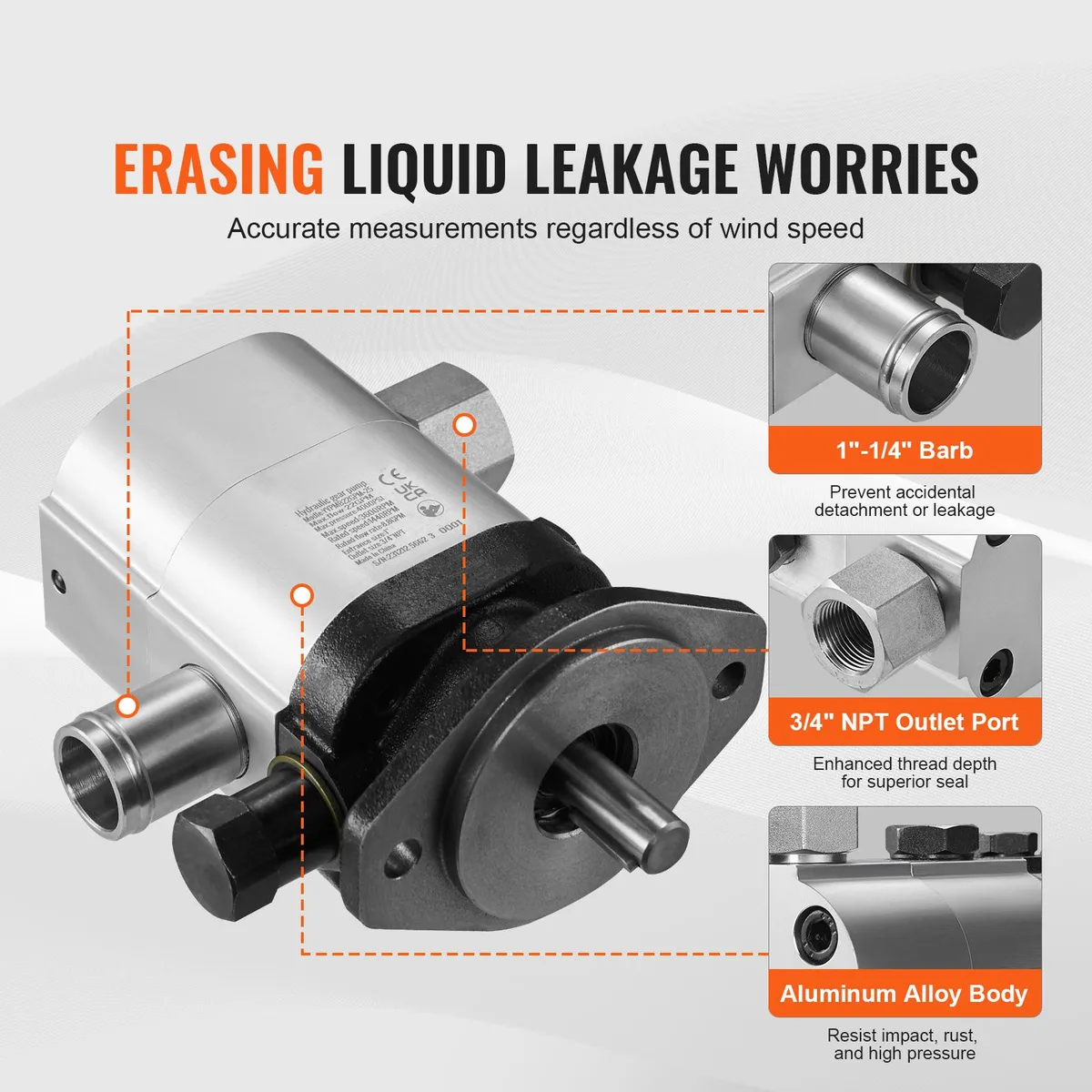

3/4-Inch NPT Outlet and 1-1/4-Inch Inlet Ports

The outlet uses a 3/4-inch NPT thread while the inlet accepts a 1-1/4-inch pipe connection, fixing the maximum hose and fitting sizes. A 0.6-inch diameter by 1.5-inch long output shaft couples directly to the engine. Flow is capped at 22 GPM with a ten-percent tolerance, so system plumbing must accommodate that fixed ceiling.

Highlights

  • Splits wood fast with 22 GPM flow rate
  • Delivers 4000 PSI pressure for tough logs
  • Runs at 3600 RPM for high-speed operation
  • Lightweight aluminium housing weighs 12.3 lbs
  • Fits 5.5 to 7.5 HP small engines

Specifications

TypeOther Appliances
Width9.45

Questions about this item

How much heat and noise does the 3600 RPM aluminum gear pump generate during all-day splitting?

The aluminum-alloy housing runs at up to 3600 RPM with a 22 GPM flow at 4000 PSI; expect typical gear-pump whine and heat proportional to continuous high-pressure load.

What engine and shaft coupling must I already have to bolt this pump on?

You need a 5.5–7.5 HP small engine with a 3600 RPM idle, 1440 RPM rated speed, and a 0.6-inch diameter by 1.5-inch long output shaft for the supplied flat key.

Will the 1-1/4'' inlet and 3/4'' NPT outlet mate with my existing log-splitter valve and hoses?

Yes — the pump uses a standard 1-1/4-inch pipe inlet and 3/4-inch NPT outlet, matching common two-stage splitter manifolds and hose fittings.
