Wall-mounted black metal rack with sixteen horizontal tiers for rolled documents

VEVOR

VEVOR 16-Tier Blueprint Storage Rack, Wall-Mounted File Cabinet

SKU CH-1BGF-33RQP

Wall-mounted metal rack holds 16 tiers of rolled blueprints, maps or posters with two rolls per tier at 22 lbs each, assembling in under 30 minutes

  • typeOther Appliances
  • width4.92
  • 16 tiers keep blueprints organized and instantly accessible
  • Each tier holds two rolls with 22 lbs capacity per tier

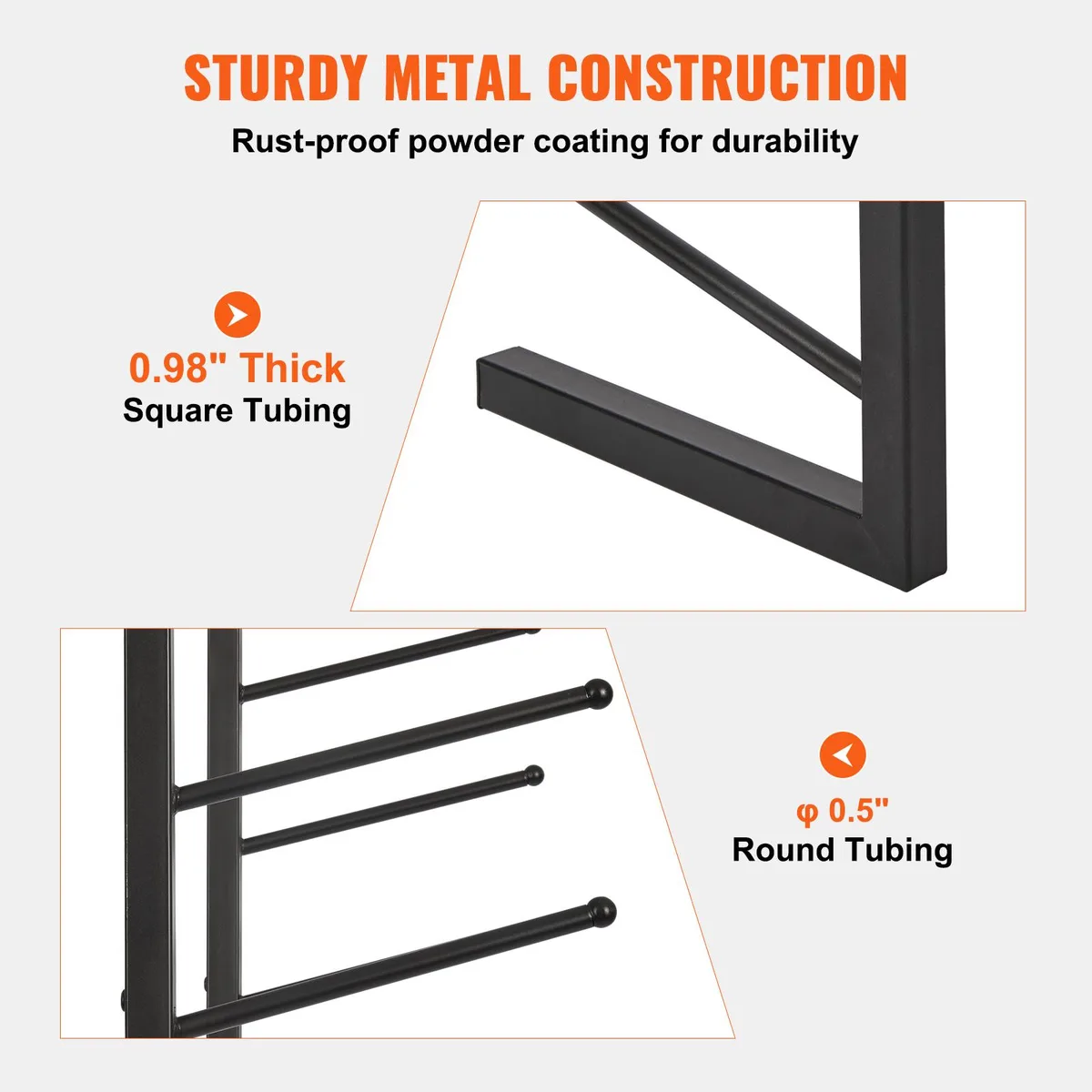

  • Powder-coated metal resists rust and protects document edges
  • Wall-mount design frees floor space in busy work areas
  • Assembles in under 30 minutes with included hardware

16-Tier Blueprint Storage Rack

The VEVOR 16-tier blueprint storage rack organizes blueprints, construction plans and rolled documents in a vertical wall-mounted layout. It suits architects, engineers and print shops that need quick access to large-format originals without consuming floor space. Each of the sixteen tiers holds two rolls, giving a total capacity of thirty-two rolls in a compact footprint. The rack arrives new and ready for assembly.

Easy Assembly and Wall Mounting

The package includes clear instructions, a wrench, a hex key and all required fasteners so no extra tools are needed. Assembly and mounting on a solid wall or sturdy surface typically takes under thirty minutes. Installers must ensure the chosen wall can support the eighteen-point-one kilogram unit plus the loaded document weight; inadequate anchors or weak wall material are the most common causes of instability.

Capacity and Load Limits

Every tier supports up to twenty-two pounds and accommodates two rolled documents, providing comfortable headroom for standard architectural and engineering prints. The overall dimensions of fifty-four centimetres wide by two-hundred-eighty-five millimetres deep by two-thousand-one-hundred-twenty-five millimetres high define the maximum roll width and storage volume. Heavier or wider rolls will exceed the per-tier rating and should not be stored on this rack.

Highlights

  • 16 tiers keep blueprints organized and instantly accessible
  • Each tier holds two rolls with 22 lbs capacity per tier
  • Powder-coated metal resists rust and protects document edges
  • Wall-mount design frees floor space in busy work areas
  • Assembles in under 30 minutes with included hardware

Specifications

typeOther Appliances
width4.92

Questions about this item

How can I confirm the rack is securely mounted and holding plans correctly after installation?

Verify the unit sits level on the wall, all 16 tiers are aligned, and each layer carries up to 22 lbs with two rolls seated without sagging.

What hardware and tools are included, and what must I supply for wall mounting?

The box contains the rack, five M6×35 screws, five M6 nuts, seven M4×30 self-tapping screws, seven plastic expansion anchors, nine M6×12 screws, one M6 wrench and one M6 hex key; you only need a drill for pilot holes.

Which capacity version should I choose for storing large-format drawings?

This single model provides 16 tiers with 2 rolls per tier, each tier rated for 22 lbs, giving 21.3 × 11.2 × 83.7 in overall dimensions.
