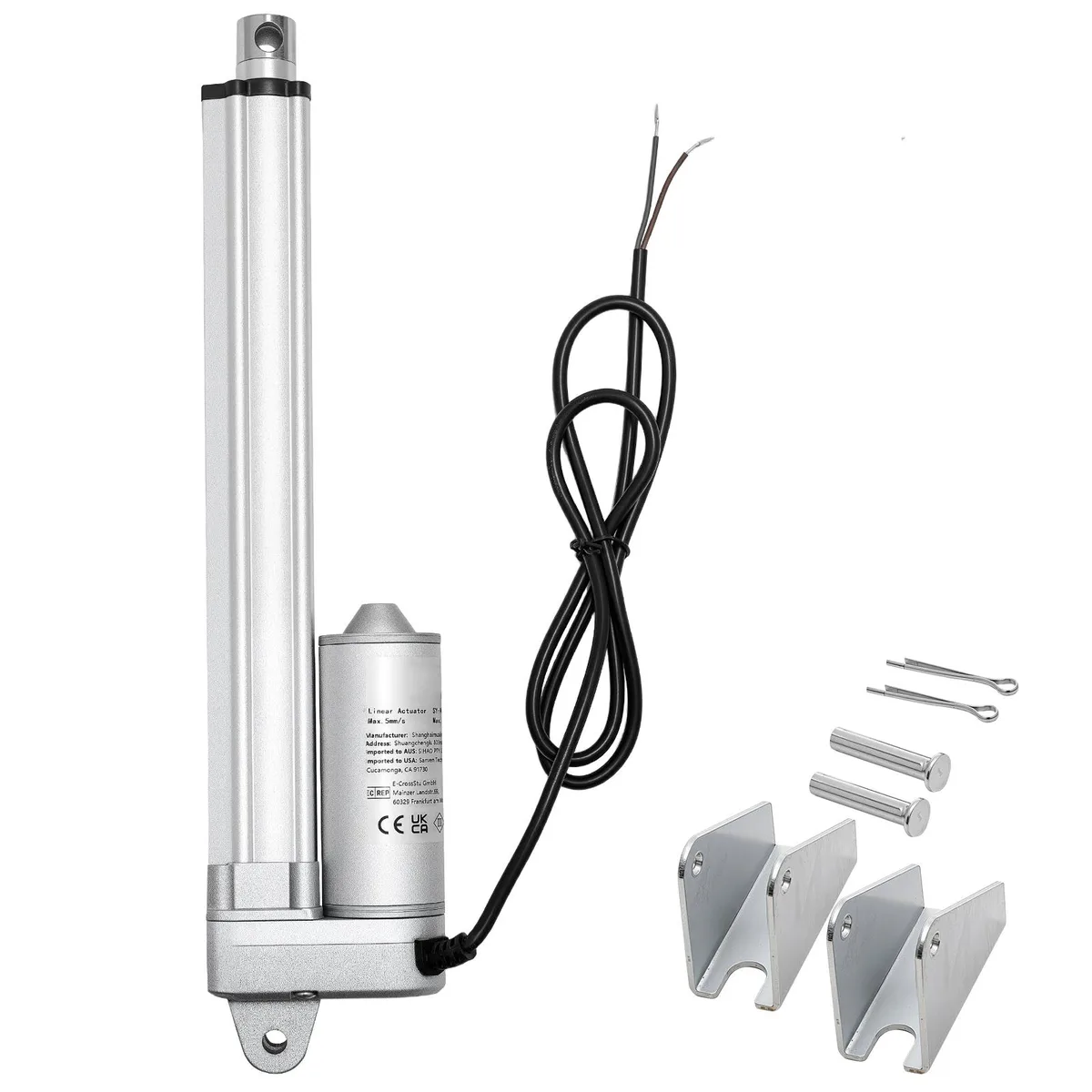

Silver aluminium cylinder with mounting brackets, 13.8 inches long

VEVOR

VEVOR 12V Linear Actuator 8 Inch IP65 675lbs 0.2"/s With Bracket

SKU CH-YEBQ-ZAC56

An IP65-rated 12 V linear actuator delivers 675 lbs thrust at 0.2 in/s over an 8-inch stroke with mounting brackets included

  • TypeOther Appliances
  • Width4.33
  • IP65 rating protects against dust and water for outdoor reliability
  • 675 lbs thrust handles medium-load tasks in agriculture and automation
  • Aluminum alloy housing with precision screw drive resists wear for long service life
  • 2 inch per second travel speed provides controlled linear motion
  • Includes two mounting brackets and hardware for quick installation

12 V linear actuator with 8 inch stroke

This 12 V linear actuator delivers an 8 inch stroke and 675 lbs of thrust at 0.2 inch per second. It is built for outdoor and industrial automation tasks that require reliable linear motion in wet or dusty conditions. The IP65 rated aluminium alloy housing resists water and dust ingress while keeping operating noise under 65 dB. Mounting brackets and hardware are included for quick installation.

Thrust and speed define the application fit

The single specification that decides suitability is the 3000 N thrust combined with a 5 mm per second travel speed. This pairing suits medium-load duties such as solar tracking, irrigation valves or agricultural equipment where high force is needed but rapid cycling is not. Applications demanding faster actuation or significantly higher loads will need a different actuator specification.

Fits 13.8 inch retracted space and 12 V DC supply

The unit retracts to 13.8 inches and extends to 21 inches, so the mounting structure must accommodate that envelope. It operates on a 12 V DC supply and includes two mounting brackets, two screws and two R-type pins, freeing the builder from sourcing separate mounting hardware. The 3.7 lb weight and 4.33 inch width allow integration into compact frames without excessive reinforcement.

Highlights

  • IP65 rating protects against dust and water for outdoor reliability
  • 675 lbs thrust handles medium-load tasks in agriculture and automation
  • Aluminum alloy housing with precision screw drive resists wear for long service life
  • 2 inch per second travel speed provides controlled linear motion
  • Includes two mounting brackets and hardware for quick installation

Specifications

TypeOther Appliances
Width4.33

Questions about this item

What does the 675 lbs thrust rating mean when the actuator is installed in a machine?

The 675 lbs (3000 N) rating is the maximum pushing or pulling force the actuator can deliver at 12 V DC, so the machine frame and mounting points must handle that load without bending.

How does the 12 V DC input limit the actuator's speed and duty cycle in practice?

At 12 V the unit moves at 0.2 inch per second (5 mm/s); running it at higher voltage to gain speed is not supported and would exceed the motor's design limits.

What physical space and mounting hardware are needed to fit the 13 inch retracted body?

The retracted length is 13 inch (330.2 mm) and the housing measures 13.8 x 3.1 x 1.8 inch; two mounting brackets, two screws and two R-type pins are included for clevis-style installation.
