Silver aluminum cylinder actuator with mounting bracket, 12 inch stroke, IP65 rated

VEVOR

VEVOR 12V Linear Actuator 12" IP65 675lbs 0.2"/s with Bracket

SKU CH-GJZE-YESDW

A 12 inch stroke linear actuator delivering 675 lbs thrust at 0.2 inches per second with IP65 waterproof rating and included mounting brackets

  • TypeOther Appliances
  • Width4.33
  • IP65 rating protects against dust and water for reliable outdoor use
  • 675 lbs thrust handles demanding agricultural and industrial tasks
  • Aluminum alloy housing with precision screw drive resists wear for long life
  • Operates below 65 dB to minimise vibration during frequent cycles
  • 12 inch stroke extends from 17 to 29 inches for versatile mounting

12V Linear Actuator 12 Inch IP65

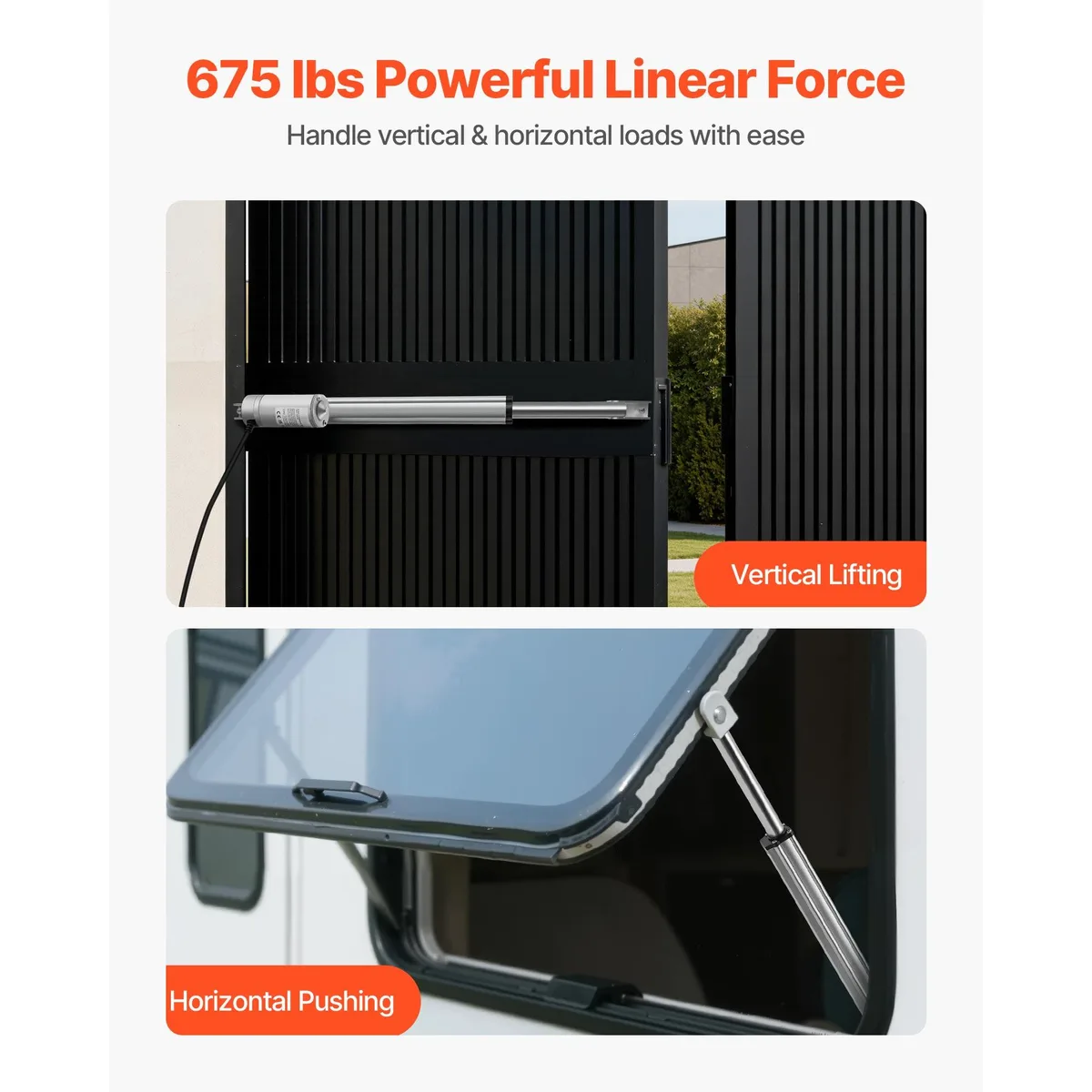

This 12V linear actuator provides a 12 inch stroke and delivers 675lbs of thrust at a speed of 0.2 inch per second. It is built with an aluminum alloy housing and carries an IP65 rating for dust and water resistance. The unit suits outdoor installations such as door openers, solar tracking, or irrigation systems where reliable linear motion is required.

Check Voltage And Mounting Space

Verify that your control system supplies a stable DC 12V input before ordering. Confirm the retracted length of 17 inch and extended length of 29 inch fit within your available mounting envelope. Ensure the 4.33 inch width clearance accommodates the actuator body and the included brackets.

Integrates With Brackets For Outdoor Builds

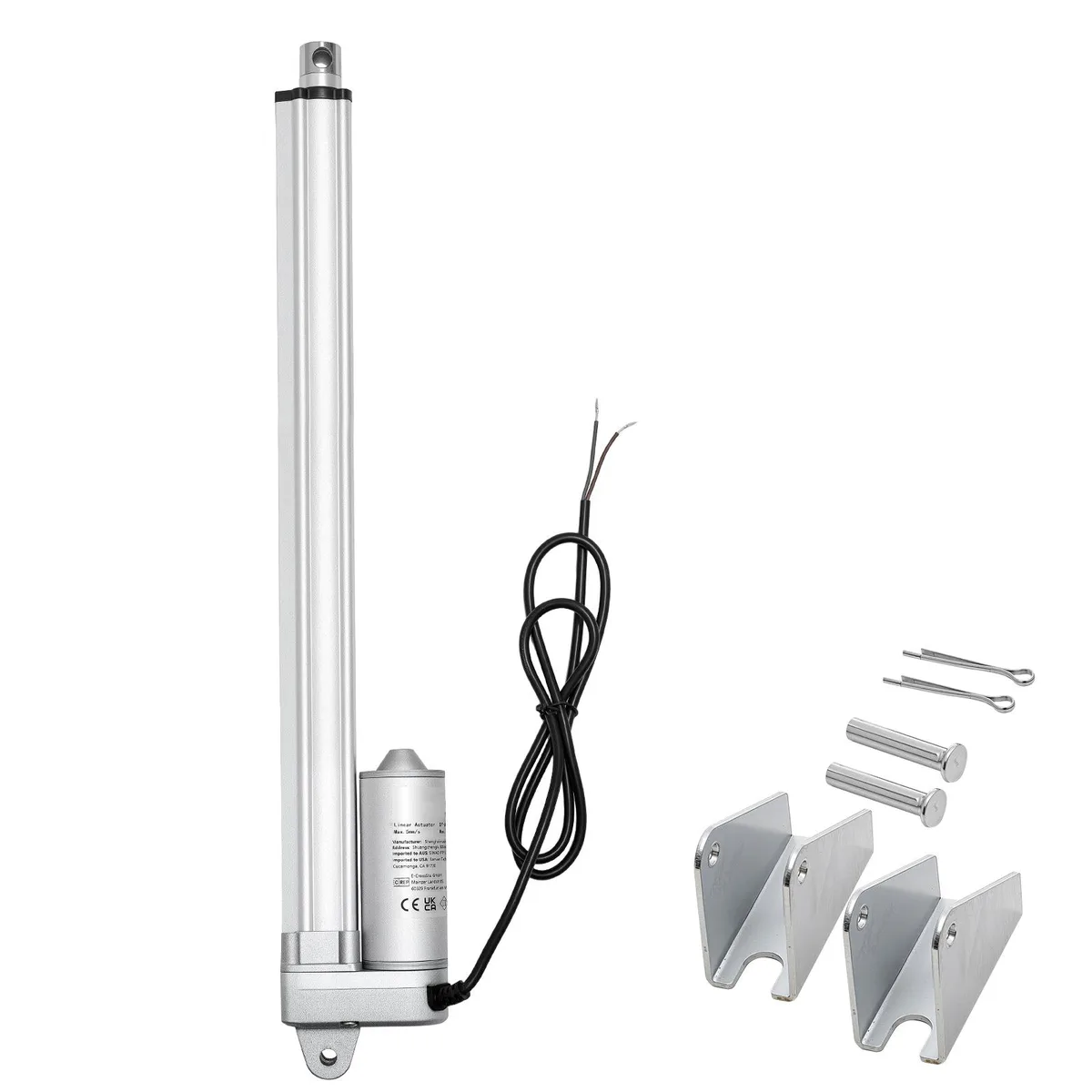

Two mounting brackets, screws, and R-type pins are supplied for direct installation. The IP65 rating allows the actuator to operate in exposed environments without additional sealing. Low operating noise under 65 dB reduces vibration in automated setups. The aluminum construction resists corrosion while the precision screw drive maintains consistent travel over repeated cycles.

Highlights

  • IP65 rating protects against dust and water for reliable outdoor use
  • 675 lbs thrust handles demanding agricultural and industrial tasks
  • Aluminum alloy housing with precision screw drive resists wear for long life
  • Operates below 65 dB to minimise vibration during frequent cycles
  • 12 inch stroke extends from 17 to 29 inches for versatile mounting

Specifications

TypeOther Appliances
Width4.33

Questions about this item

What mounting hardware is included with the actuator and is a power supply supplied?

The package includes two mounting brackets, two screws and two R-type pins; a power supply is not included and must be sourced separately.

Should I choose the 12-inch stroke version or is a different length available?

This model has a fixed 12-inch stroke, a retracted length of 17 inches and an extended length of 29 inches; no other stroke lengths are offered for this SKU.

How fast will the actuator move a load in practice at the rated 0.2 inches per second?

The no-load speed is 0.2 inches per second (5 mm/s); under the maximum 675 lbs thrust the speed will be lower and varies with the applied load and supply voltage.
