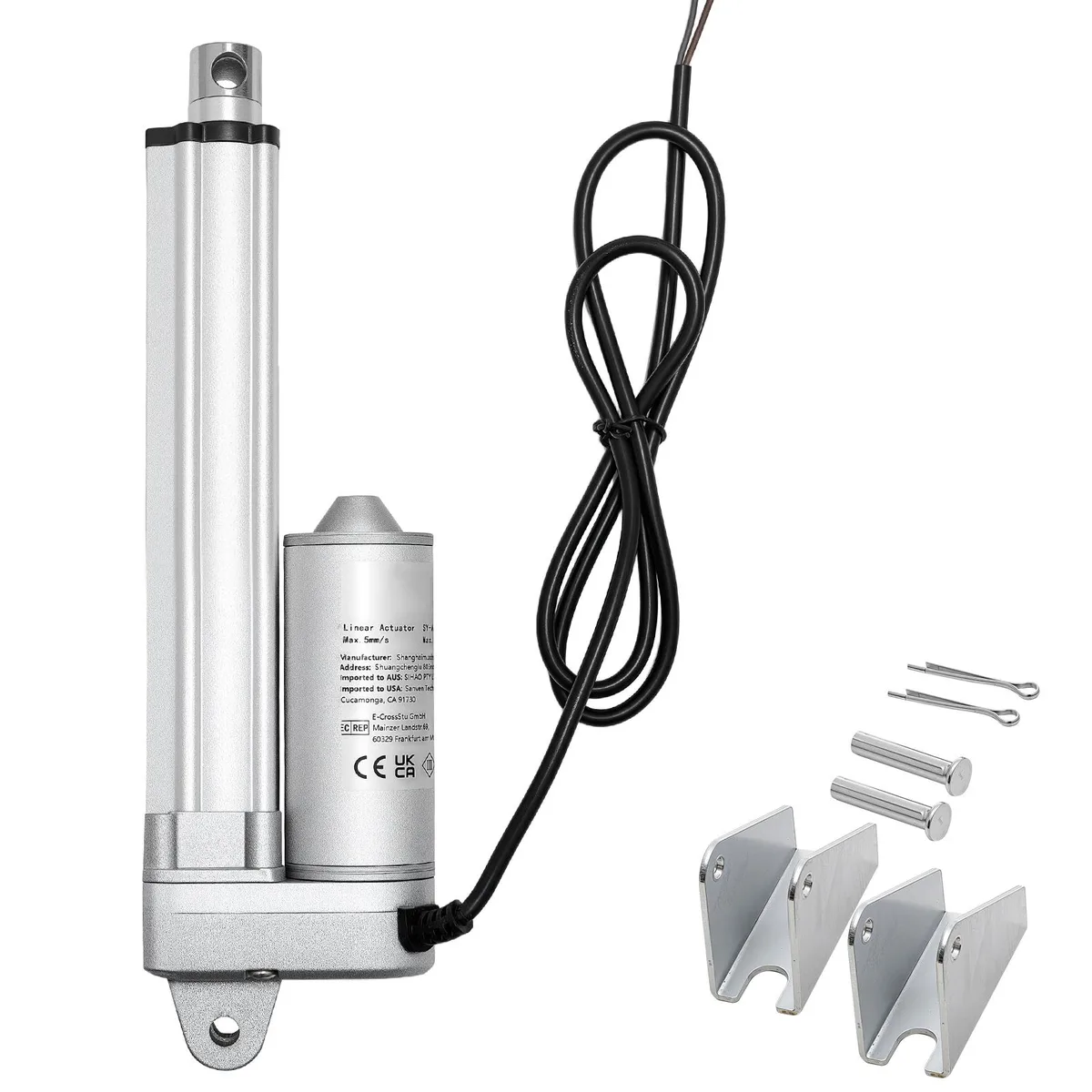

Silver aluminum cylinder with mounting brackets, compact linear actuator form factor

VEVOR

VEVOR 12V 4" IP65 Linear Actuator 675lbs 0.2"/s with Brackets

SKU CH-Q76G-42P4T

A 12 V linear actuator with 4 inch stroke, 675 lbs thrust and IP65 rating for outdoor use

  • TypeOther Appliances
  • Width4.72
  • IP65 rating protects against dust and water for reliable outdoor use
  • 675 lbs thrust handles demanding agricultural and industrial tasks
  • Aluminum alloy housing with precision screw drive resists wear and reduces vibration
  • 2 inch per second travel speed with 4 inch stroke for precise linear motion
  • Includes two mounting brackets, screws and R-type pins for quick installation

Outdoor linear actuator IP65

This 12 V linear actuator carries an IP65 rating for dust and water resistance, making it suitable for outdoor installations such as door openers, solar panel tracking or irrigation systems. It delivers a maximum thrust of 675 lbs (3000 N) at a travel speed of 0.2 inch per second. The unit ships with two mounting brackets, two screws and two R-type pins for immediate fitting.

Sustained load behaviour

Under continuous operation the actuator maintains its rated thrust of 3000 N while running at 5 mm per second, and the aluminium alloy housing helps dissipate heat during long cycles. No-load noise stays below 65 dB, reducing vibration and the risk of jamming when the device cycles repeatedly. The precision screw drive is designed for wear resistance over extended use.

Pre-order checks

Verify that your control system can supply a stable 12 V DC source capable of the actuator’s current draw. Confirm the 4 inch stroke and 9 inch retracted length match the available mounting space, noting the 13 inch extended length. Ensure the 9.8 × 3.1 × 1.8 inch envelope and 3.3 lb weight are compatible with your structure and the supplied brackets.

Highlights

  • IP65 rating protects against dust and water for reliable outdoor use
  • 675 lbs thrust handles demanding agricultural and industrial tasks
  • Aluminum alloy housing with precision screw drive resists wear and reduces vibration
  • 2 inch per second travel speed with 4 inch stroke for precise linear motion
  • Includes two mounting brackets, screws and R-type pins for quick installation

Specifications

TypeOther Appliances
Width4.72

Questions about this item

How loud is the actuator when it runs continuously at 0.2 inch/s?

The unit operates under 65 dB at no load, so noise stays low even during long cycles.

What power source and wiring do I need to run the 12 V DC motor?

A 12 V DC supply capable of the actuator's current draw and two leads to the motor terminals are required.

Will the 9.8 x 3.1 x 1.8 inch body and included brackets fit the mounting points on my existing equipment?

The aluminium housing measures 250 x 78 x 45 mm and the kit supplies two brackets with screws and R-type pins for bolting on.
