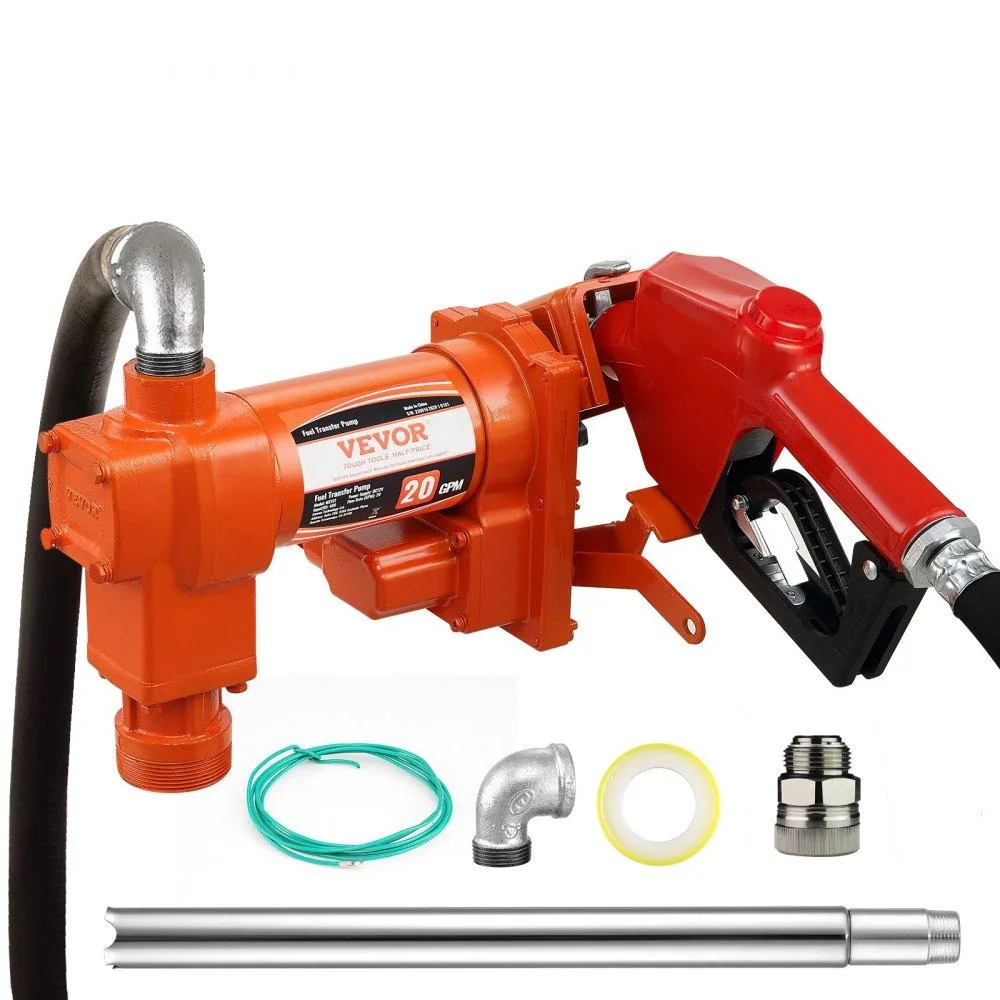

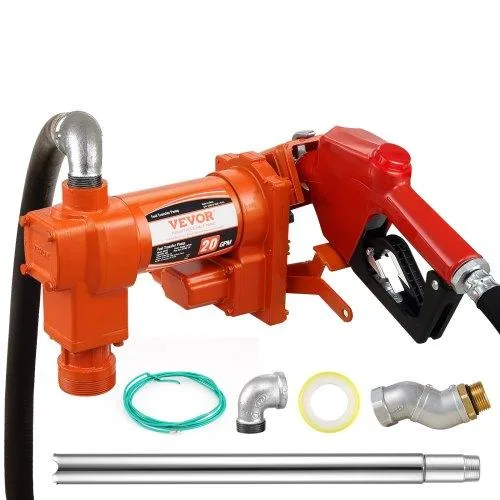

VEVOR 12V fuel transfer pump with hose, nozzle and suction pipe

VEVOR

VEVOR 12V 20 GPM 1/4 HP Fuel Transfer Pump EX56A-12

SKU CH-B1T8-ZEPPV

A 12 V DC pump transfers up to 20 GPM of gasoline, diesel, kerosene, ethanol blends or biodiesel and includes an automatic shut-off nozzle, 13 ft discharge hose.

  • TypeOther Appliances
  • Width15.35
  • Up to 20 GPM flow rate fills tanks in about 22 seconds
  • Automatic shut-off nozzle stops flow when the tank is full
  • 12 V DC power runs from standard vehicle or equipment batteries
  • Fuel collection box catches drips to keep the work area clean
  • 13 ft outlet hose and telescopic suction pipe reach up to 3.07 ft depth

Efficient Fuel Transfer

The VEVOR 12V DC pump moves gasoline, diesel, kerosene, ethanol blends and biodiesel at up to 20 GPM with a 1/4 HP motor running at 3000 r/min. A head lift of 26.2 ft and suction lift of 9.8 ft fill a tractor tank in roughly 22 seconds, making it practical for farm, workshop or fleet refuelling tasks.

Build and Connections

Cast iron and aluminum alloy housing resists corrosion while the 1 in inlet and outlet match the supplied 13 ft outlet hose and telescopic suction pipe that extends from 1.57 to 3.07 ft. An 18 ft power cord with alligator clips reaches a vehicle battery, and the automatic shut-off nozzle enables hands-free filling without watching the tank level.

Thermals and Power Draw

The 12V motor draws moderate current during continuous operation, and the metal casing dissipates heat without an external fan. Noise stays at a typical electric-pump hum, and the included ground wire provides a safe path for static discharge during fuel handling.

Highlights

  • Up to 20 GPM flow rate fills tanks in about 22 seconds
  • Automatic shut-off nozzle stops flow when the tank is full
  • 12 V DC power runs from standard vehicle or equipment batteries
  • Fuel collection box catches drips to keep the work area clean
  • 13 ft outlet hose and telescopic suction pipe reach up to 3.07 ft depth

Specifications

TypeOther Appliances
Width15.35

Questions about this item

What is the input voltage and maximum flow rate of the EX56A-12 pump?

The pump runs on 12 V DC and delivers up to 20 GPM (75.7 LPM) for gasoline, diesel, kerosene, ethanol/methanol blends, and biodiesel.

What are the overall dimensions and weight of the unit?

It measures 13 x 8.9 x 9.6 in (330 x 225 x 245 mm) and weighs 35.9 lbs (16.3 kg).

How do I connect the power cord and ground wire, and what mistake should I avoid?

Attach the 18 ft (5.4 m) power cord to a 12 V DC source with correct polarity, then secure the ground wire to a clean metal surface; the common error is reversing the power leads.
