Black wall-mount server cabinet, 12U height, 15.5in depth, vented panels, locked glass door

VEVOR

VEVOR 12U Wall Mount Server Cabinet 15.5" Depth Black

SKU CH-FKJ6-Y5PE6

A 12U wall-mount rack with 15.5 in depth, 19 in mounting width and lockable glass door holds up to 100 lbs on the wall or 200 lbs on the floor

  • TypeOther Appliances
  • Width24.8

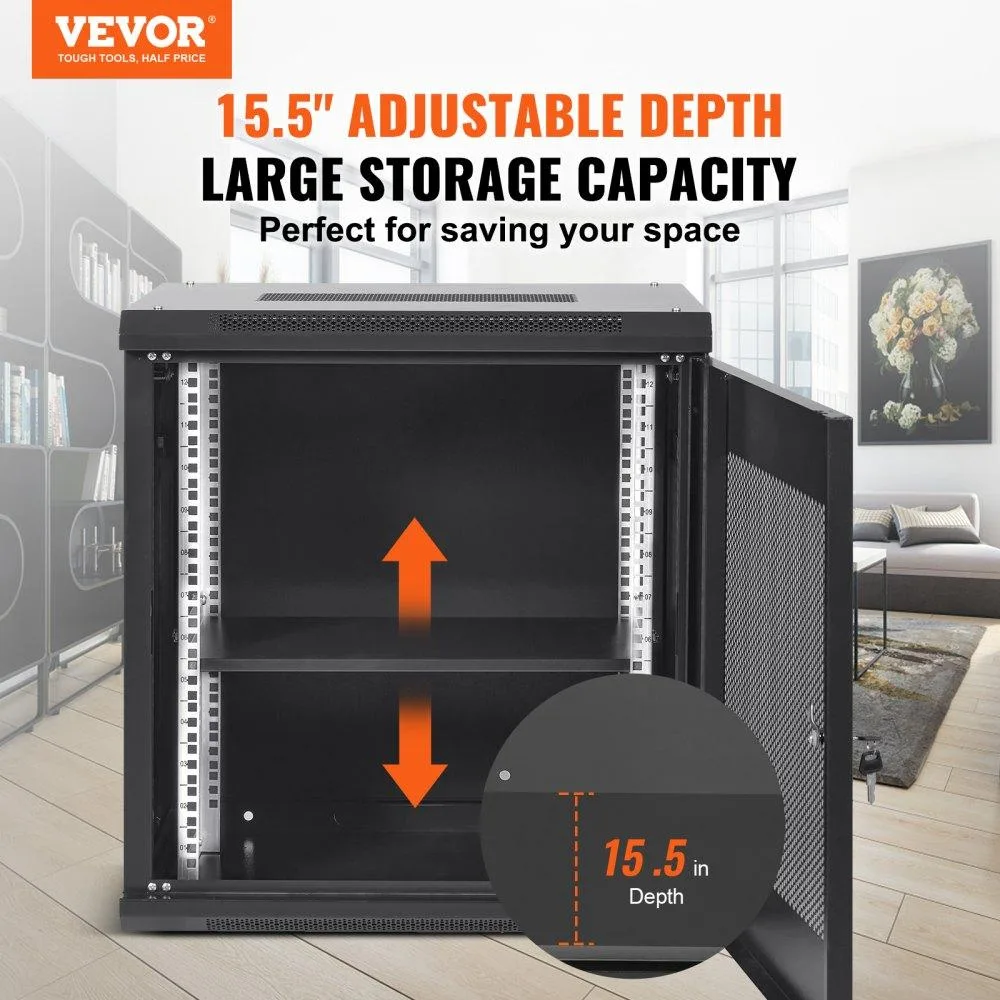

  • Space-saving 15.5" depth fits tight retail or classroom walls
  • Vents on top, bottom and rear panels promote fast heat dissipation
  • Welded steel frame carries 100 lbs wall-mounted or 200 lbs floor-mounted
  • Locked glass door secures servers and AV gear in public areas
  • Includes 15 cage nuts, 40 screws and expansion bolts for 19" rack mounting

12U Wall-Mount Cabinet

The VEVOR 12U wall-mount server cabinet provides 15.5 inches of depth in a black finish. It suits IT professionals and AV installers who need to secure network switches, patch panels or audio gear in tight corridors, classrooms or retail back offices. The welded steel frame carries up to 100 lbs when hung on the wall and 200 lbs when supported on the floor. A lockable tempered-glass door protects equipment in publicly accessible areas.

Vented Panels Replace Sealed Enclosures

Perforated top, bottom and rear panels replace solid sides to move heat away from active gear without adding active cooling. The jump is worthwhile when rack-mounted devices generate steady heat but the site cannot accommodate a full-depth floor rack or ducted airflow. The 19-inch mounting width accepts standard EIA equipment, so existing rails and shelves transfer directly.

Installers With Limited Depth

This cabinet fits installers who have 15.5 inches of wall clearance and need 12U of rack space. It does not suit deployments requiring deeper servers, high-density blade chassis or cable-management accessories that exceed the usable depth. Buyers needing front-to-rear cable routing beyond the given depth should evaluate larger enclosures.

Highlights

  • Space-saving 15.5" depth fits tight retail or classroom walls
  • Vents on top, bottom and rear panels promote fast heat dissipation
  • Welded steel frame carries 100 lbs wall-mounted or 200 lbs floor-mounted
  • Locked glass door secures servers and AV gear in public areas
  • Includes 15 cage nuts, 40 screws and expansion bolts for 19" rack mounting

Specifications

TypeOther Appliances
Width24.8

Questions about this item

What wall spacing and hardware does the 15.5 in deep cabinet need for mounting?

The unit requires four M10×50 expansion screws for wall mounting and supports up to 100 lbs when fixed to the wall; it also includes a grounding wire for electrical bonding.

Which screws and cage nuts secure 19 in rack gear inside the 12U enclosure, and what step is often missed?

Use the 40 M5×10 cross-head screws with the 15 M6×12 cage nuts; the step often missed is seating each cage nut fully in the square hole before threading the equipment screws.

What ongoing care does the locked glass door and vented steel frame require?

Wipe the glass door and vent panels regularly to keep airflow clear, check that all M5 and M6 fasteners stay tight after equipment changes, and verify the grounding wire remains attached.
