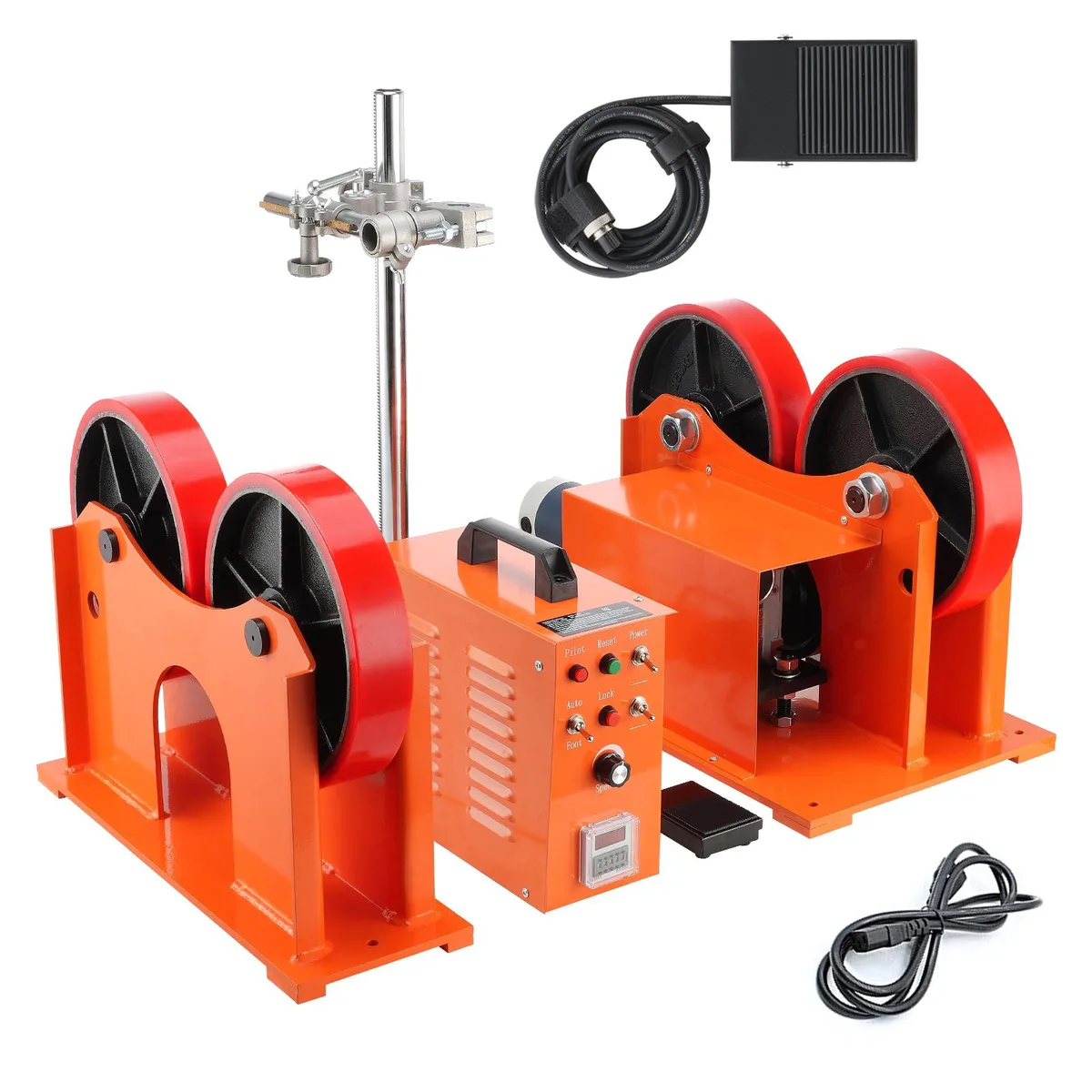

VEVOR 110V welding turning roll with 250mm PU rollers on carbon steel frame

VEVOR

VEVOR 110V Welding Turning Roll 1000KG 250mm Roller 80-1600mm/min

SKU CH-HNAV-8HF4K

Rotates workpieces up to 1000 kg at 80–1600 mm/min with a 250 mm PU roller adjustable for 25–1400 mm diameters, plus a torch stand and foot-switch control

  • TypeOther Appliances
  • 600 W motor delivers 1 000 kg load capacity for heavy workpieces
  • Adjustable 80–1 600 mm/min speed range matches welding process needs
  • 250 mm PU rollers handle 25–1 400 mm diameters via inner and outer holes
  • Carbon-steel frame and wear-resistant rollers give stable, long-lasting support
  • Manual control box plus foot switch offers two convenient operating modes

Purpose and capacity

The VEVOR 110V turning roll supports cylindrical workpieces up to 1000 kg horizontal loading capacity with a 600 W motor. It is built for welding shops that need steady rotation of pipes or tanks during seam welding. The unit includes a torch stand to hold the gun in a fixed position while the workpiece turns.

Speed range and diameter limits

Rotation speed adjusts between 80 and 1600 mm/min to suit different weld procedures. The 250 mm diameter PU rollers accept workpieces from 25 to 800 mm outer diameter on the inner hole setting and 600 to 1400 mm on the outer hole setting. The 50 mm roller width and 315 mm turntable diameter define the contact area for load distribution.

Installation notes

The package supplies a control box, foot pedal, power cord, aviation plug for the welding machine, gun holder and user manual. Wiring the aviation plug to the welder and positioning the heavy 166.7 kg frame on a level floor are the main steps. Misaligned roller gaps or an uneven floor can cause workpiece wobble during rotation.

Highlights

  • 600 W motor delivers 1 000 kg load capacity for heavy workpieces
  • Adjustable 80–1 600 mm/min speed range matches welding process needs
  • 250 mm PU rollers handle 25–1 400 mm diameters via inner and outer holes
  • Carbon-steel frame and wear-resistant rollers give stable, long-lasting support
  • Manual control box plus foot switch offers two convenient operating modes

Specifications

TypeOther Appliances

Questions about this item

Should I use the inner or outer roller holes for a 25 mm diameter workpiece?

Use the inner roller holes; they are designed for workpieces with an outside diameter of 25-800 mm.

What does the 1000 kg horizontal loading capacity mean for my welding jobs?

The unit can support and rotate workpieces weighing up to 1000 kg, providing stable rotation for heavy fabrication tasks.

How does the 110 V power input affect the 600 W motor performance?

The 110 V supply powers the 600 W motor to deliver the full 80-1600 mm/min speed range and 1000 kg load capacity.
