White PVC mini-split line cover kit with four straight ducts, bends, joints, caps and wall guards

VEVOR

VEVOR 1100061671 Mini Split Line Set Cover 3 in W 17.6 Ft L PVC

SKU CH-Z8BQ-S4RPJ MPN 1100061671

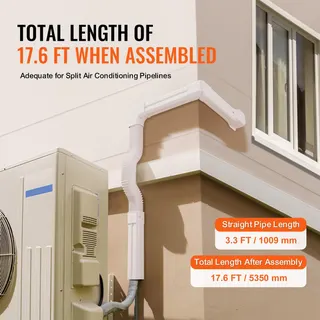

A 17.6 ft PVC duct kit with four straight sections and full fittings covers and protects mini-split refrigerant lines

  • TypeOther Appliances
  • Width7.87
  • Protects refrigerant lines with 17.6 ft total coverage
  • 3 in x 2.4 in opening fits standard mini-split pipes
  • Four 3.3 ft straight ducts snap together fast

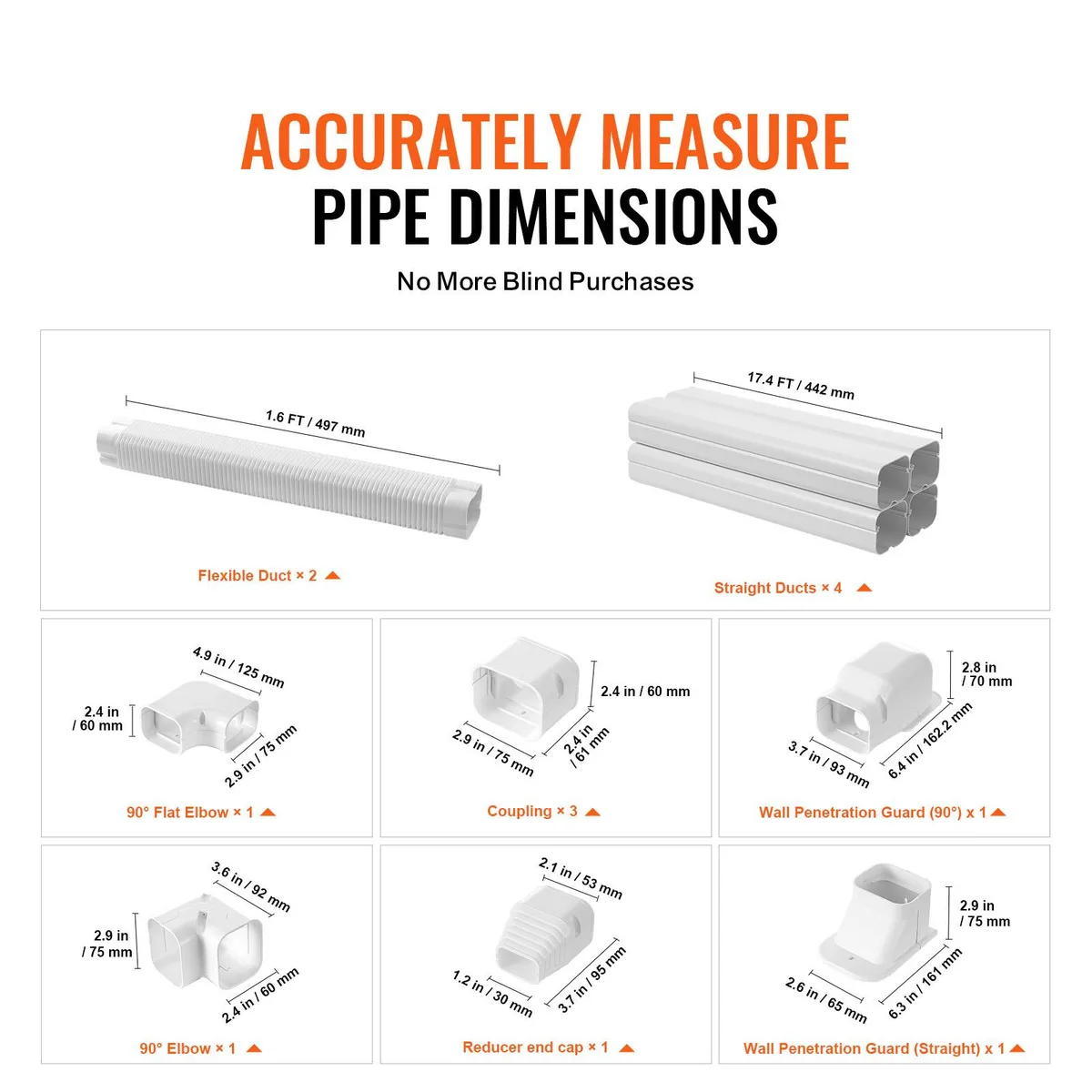

  • Includes 90° and straight wall guards plus bends
  • Paintable white PVC matches any exterior finish

What this cover does

The VEVOR 1100061671 is a PVC line-set cover for mini-split air-conditioner and heat-pump installations. It bundles four 3.3 ft straight ducts with bends, joints, end caps, wall-penetration guards and mounting hardware so the refrigerant pipes and cables are protected and concealed in a single run.

Material and installation impact

The white PVC ducts are paintable and rated for indoor or outdoor exposure. At 8.8 lb total weight the assembled 17.6 ft run adds minimal load to the wall, and the snap-together joints with supplied ST 3.5 x 16 and ST4 x 25 screws allow a secure fit without specialised tools.

Sizing constraint that decides fit

The cover accepts pipe bundles up to 3.0 x 2.4 in (75 x 60 mm) inside its rectangular channel. Installations with larger trunking or multiple line sets will exceed this opening and require a different cover size.

Highlights

  • Protects refrigerant lines with 17.6 ft total coverage
  • 3 in x 2.4 in opening fits standard mini-split pipes
  • Four 3.3 ft straight ducts snap together fast
  • Includes 90° and straight wall guards plus bends
  • Paintable white PVC matches any exterior finish

Specifications

TypeOther Appliances
Width7.87

Questions about this item

How do I mount the 3 in wide PVC line set cover on an exterior wall and which step is often missed?

Fasten the straight pipes with the 17 ST3.5×16 screws and the 13 ST4×25 screws, fit the wall penetration guard and both bends, then secure the refrigerant lines with the 10 cable ties — the step most often missed is tightening every cable tie after the cover is assembled.

What parts of the 17.6 ft cover kit will need inspection or replacement over time?

The white PVC ducts, four straight pipes, two swivel joints, three pipe joints, two wall guards and the end cap should be checked each season; replace any cable ties or screws that have become brittle or corroded.

What is the first limit you hit when the 3 in cover runs continuously in direct sun?

The PVC material softens above its rated temperature, so the 75×60 mm pipe opening can deform if the cover is exposed to sustained high heat without shade.
