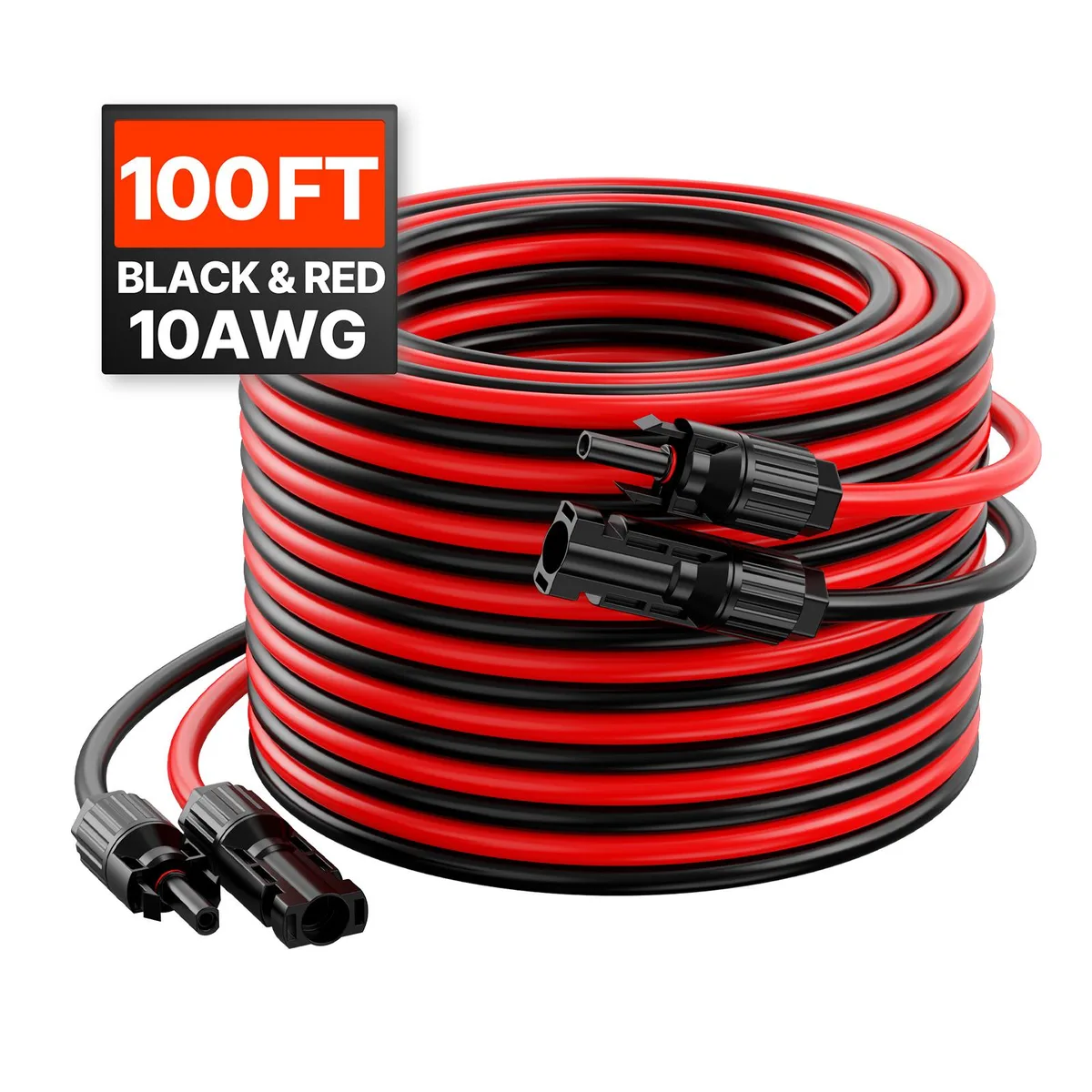

Coiled pair of red and black 10AWG solar cables with MC4 connectors

VEVOR

VEVOR 100FT 10AWG Solar Extension Cable Pair

SKU CH-FWNP-E3RQR

A 100 ft pair of 10AWG solar extension cables with pre-installed MC4 connectors, rated for DC 1500 V, 30 A and IP67 protection

  • TypeOther Appliances
  • Width8.27

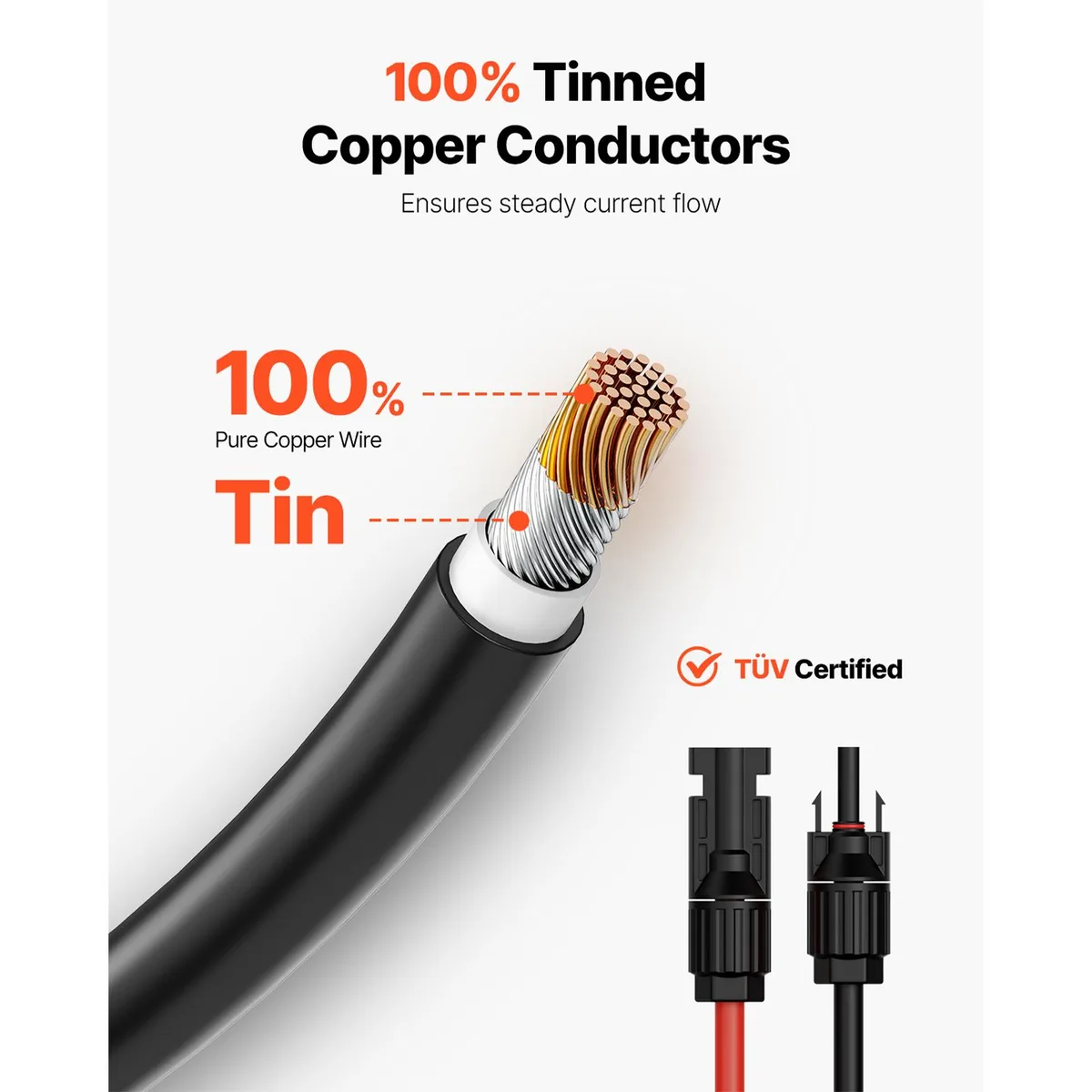

  • Efficient power transfer with 100 % tinned copper conductors
  • 10 AWG gauge rated for 30 A at 1500 V DC
  • IP67 protection resists water and dust ingress
  • Pre-fitted MC4 connectors enable tool-free plug-and-play setup
  • 5 m twin cable set weighs 5.19 kg

100 ft 10AWG Solar Cable Pair

This set provides two 100 ft cables, one red and one black, each built with 10AWG tinned copper conductors. It is designed for installers and DIY owners who need long, low-loss runs between photovoltaic modules and charge controllers or inverters in home, RV or marine systems. The dual-wire construction simplifies polarity management on site.

IP67 Rated for Outdoor Durability

The XLPE jacket and IP67 rating protect the conductors from water ingress and dust across an operating range of -40 °C to 105 °C. Rated for 1500 V DC and 30 A, the cables handle typical array voltages and currents without excessive heating, keeping resistive losses low over the full 30.48 m length.

Pre-Fitted MC4 Connectors and Manual

Each cable arrives with MC4 male and female connectors already crimped, enabling tool-free, plug-and-play connections between panels or to combiner boxes. The included user manual guides correct mating and sealing so the IP67 integrity is maintained after installation.

Highlights

  • Efficient power transfer with 100 % tinned copper conductors
  • 10 AWG gauge rated for 30 A at 1500 V DC
  • IP67 protection resists water and dust ingress
  • Pre-fitted MC4 connectors enable tool-free plug-and-play setup
  • 5 m twin cable set weighs 5.19 kg

Specifications

TypeOther Appliances
Width8.27

Questions about this item

How do I install the 10AWG cable pair with the pre-attached MC4 connectors, and what step do people often get wrong?

Push each MC4 male connector into its matching female socket until you hear a distinct click that locks the internal latch; the common mistake is stopping when the housings touch but before the latch engages, which leaves a high-resistance joint.

What maintenance or replacement will the 100 ft cable set need over time?

Inspect the XLPE insulation and IP67 seals once a year for UV cracking or connector corrosion; replace any section where the jacket is brittle or the MC4 latch no longer clicks securely.

What limit appears first when the 30 A rated cable runs continuously in high ambient heat?

The XLPE jacket is rated to 105 °C; sustained loads near 30 A in hot environments will hit that conductor-temperature ceiling before the 1500 V voltage rating becomes a concern.
