Vertiv SC945D-001 4-Port Dual-Head DisplayPort KVM Switch
A secure 4-port dual-head DisplayPort KVM switch supporting 3840x2160 at 30 Hz with NIAP 3.0 certification and dedicated peripheral port
- TypeDisplayPort, USB
- Console ConnectorsUSB Type-A
- Computer Connections4 Ports
- Monitor Connections4 Ports
- Video ResolutionUHD 4K resolutions up to 3840x2160 @ 30 Hz

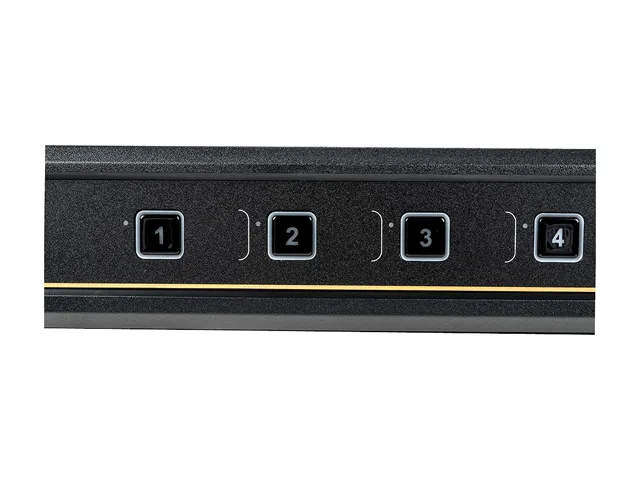

- PC SelectionPush Buttons
- NIAP 3.0 and EAL4+ certified for high-assurance peripheral sharing
- Zero-delay switching via full USB emulation for instant source changes
- Hardware peripheral isolation with optical data diodes prevents data leakage
- Dual-head DisplayPort 1.2 supports 3840x2160 at 30 Hz UHD
- Dedicated peripheral port secures CAC readers and biometric devices
Secure 4-Port KVM Switch

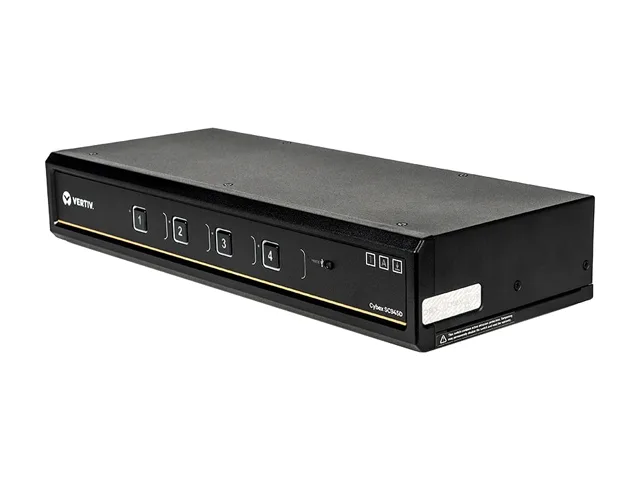

The Vertiv Cybex SC945D-001 is a NIAP 3.0 and EAL4+ certified KVM switch built for high-security desktop environments. It enables a single operator to control four isolated computers using dual-head DisplayPort monitors at UHD 4K resolution. Hardware-enforced peripheral isolation and unidirectional optical data diodes prevent data leakage between connected sources. This TAA-compliant unit is designed for government and defence workspaces that mandate certified peripheral sharing.
Suited for classified or multi-domain desktops
This switch serves users who must operate across separate security domains without cross-contamination of keyboard, mouse, audio or USB authentication devices. The dedicated peripheral port supports CAC readers and biometric hardware while maintaining strict data-flow control. Buyers who require HDMI video input, DisplayPort 1.4 bandwidth or switching via hotkeys should evaluate other solutions, as this model provides DisplayPort 1.2 connectivity and front-panel push-button selection only.
Dual-head 4K at 30 Hz video
The console supports two DisplayPort monitors at 3840x2160 resolution running at 30 Hz per head. This specification determines whether the switch can drive the required dual-head UHD workspace; higher refresh rates or single-monitor 60 Hz operation are not supported by this hardware.
Highlights
- NIAP 3.0 and EAL4+ certified for high-assurance peripheral sharing
- Zero-delay switching via full USB emulation for instant source changes
- Hardware peripheral isolation with optical data diodes prevents data leakage
- Dual-head DisplayPort 1.2 supports 3840x2160 at 30 Hz UHD
- Dedicated peripheral port secures CAC readers and biometric devices
Specifications
| Brand | Cybex |
|---|---|
| Model | SC945D-001 |
| Type | DisplayPort, USB |
| Console Connectors | USB Type-A |
| Computer Connections | 4 Ports |
| Monitor Connections | 4 Ports |
| Video Resolution | UHD 4K resolutions up to 3840x2160 @ 30 Hz |
| PC Selection | Push Buttons |
| Monitors Supported | DP 1.2 |
| Temperature | Operating Temperature: 32° to 104° F; 0° to 40° C Storage Temperature: "-4° to 140° F; -20° to 60° C" |
| Humidity | 0-80% RH, non-condensing |
| Audio Features | with Audio |
| Power Features | Power Requirements: 35W Max Internal AC Input Voltage: 100 to 240V AC |
| USB Features | with USB support |
| Features | Outstanding security. Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for peripheral-sharing devices. Support for USB authentication devices. A dedicated peripheral port supports CAC and additional types of authentication devices, such as facial recognition and fingerprint readers. Discrete processing paths. Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports. Unique NUM Lock, CAPS Lock and Scroll Lock indicators. W |
| Dimensions | 2.20" x 13.70" x 5.00" |
| Weight | 3.70 lbs. |
| Shipping weight | 2.54 kg |
| Package size | 610 × 432 × 279 mm |
Questions about this item
What resolution and refresh rate does the DisplayPort 1.2 connection actually deliver on each head?
The switch supports UHD 4K up to 3840x2160 at 30 Hz per head over DisplayPort 1.2.
What are the exact dimensions and weight so I can confirm it fits my desk or rack shelf?
It measures 2.20 inches high, 13.70 inches wide, 5.00 inches deep and weighs 3.70 lbs.
How do I connect the four computers and dual monitors, and which cables go where?

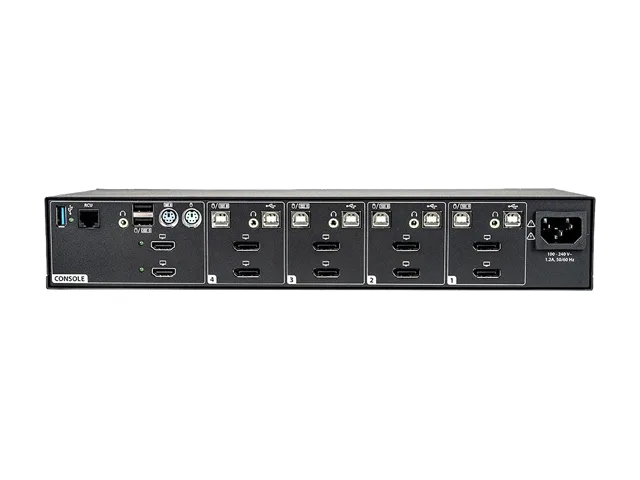

Connect each computer to one of the four DisplayPort and USB ports on the rear; attach two monitors to the two console DisplayPort outputs and plug keyboard and mouse into the front USB Type-A ports.
