Vertiv
Vertiv SC840D-001 4-port DisplayPort KVM switch
A 4-port DisplayPort KVM switch supporting UHD 4K at 30 Hz with NIAP Protection Profile V3.0 certification and isolated processing paths
- TypeDisplayPort, USB
- Console ConnectorsUSB Type-A
- Computer Connections4 Ports
- Monitor Connections4 Ports
- Video ResolutionUHD 4K resolutions up to 3840x2160 @ 30 Hz
- PC SelectionPush Buttons
Style 4-Port DisplayPort
- 4-Port DVI-I
- 4-Port DisplayPort
- NIAP PP 3.0 certification meets strict government security standards
- Isolated processing paths prevent data leakage between the four connected computers
- UHD 4K resolution up to 3840x2160 at 30 Hz delivers sharp single-head video
- CAC port enables secure authentication with common access cards
- Front-panel push buttons and lock-status LEDs simplify port selection
Secure 4-port KVM for DisplayPort workstations

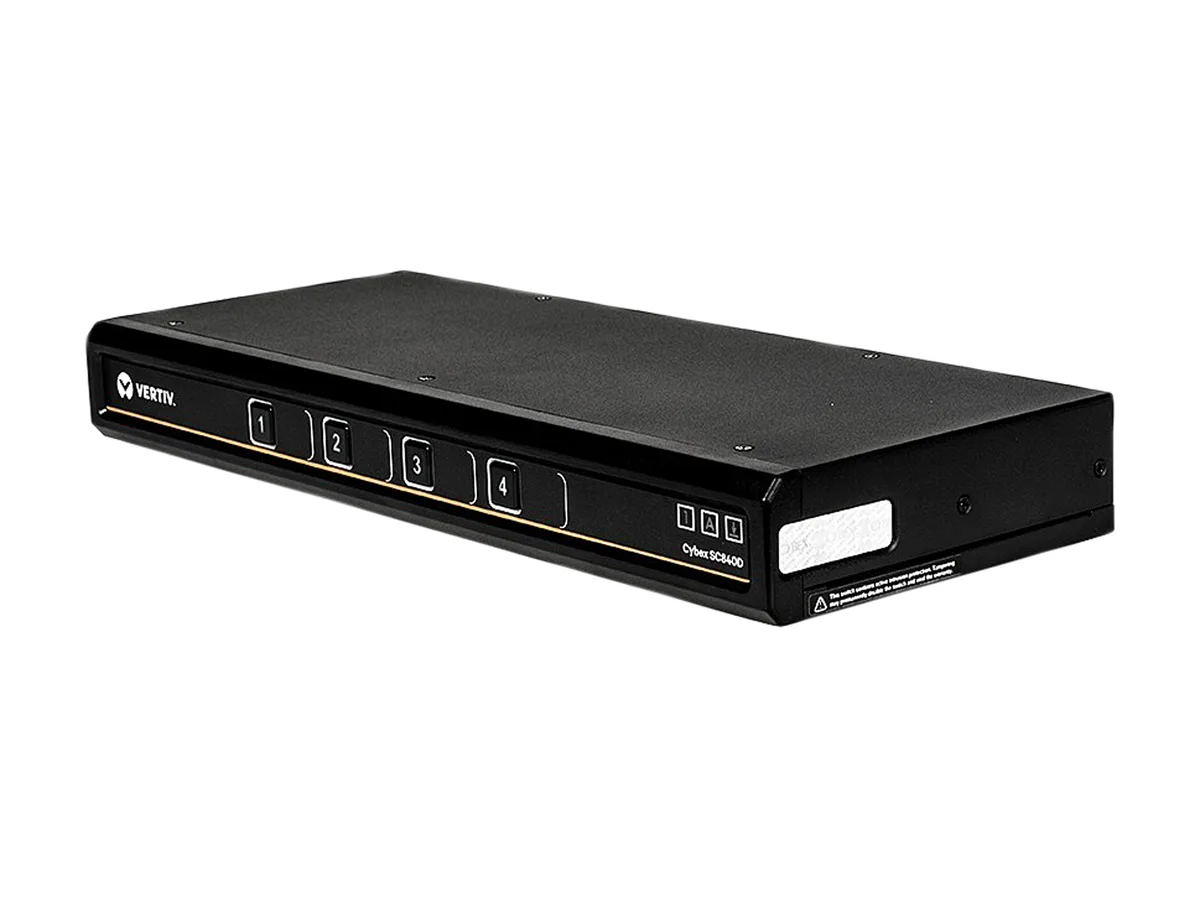

The Vertiv SC840D-001 is a single-head KVM switch that lets one user control four computers through a single DisplayPort monitor, USB keyboard and mouse. It supports UHD 4K resolution up to 3840x2160 at 30 Hz and includes audio switching for a complete desktop experience. The unit is designed to meet NIAP Protection Profile V3.0 requirements for secure peripheral sharing.
Verify DisplayPort 1.2 sources
Each of the four computer ports requires a DisplayPort 1.2 output capable of 3840x2160 at 30 Hz, plus a USB Type-A connection for keyboard and mouse signals. The console side uses USB Type-A for peripherals and a single DisplayPort input for the monitor. Ensure your cables match these connectors and that your displays support the stated resolution and refresh rate.
Fanless 35 W design runs silently within 0–40 °C
The switch draws a maximum of 35 W from a 100–240 V AC supply and operates without fans, so it adds no audible noise to the workspace. Operating temperature range is 0 to 40 °C with humidity up to 80 % RH non-condensing. Isolated processing paths prevent data leakage between ports while maintaining stable video and USB performance under continuous use.
Highlights
- NIAP PP 3.0 certification meets strict government security standards
- Isolated processing paths prevent data leakage between the four connected computers
- UHD 4K resolution up to 3840x2160 at 30 Hz delivers sharp single-head video
- CAC port enables secure authentication with common access cards
- Front-panel push buttons and lock-status LEDs simplify port selection
Specifications
| Brand | Cybex |
|---|---|
| Model | SC840D-001 |
| Type | DisplayPort, USB |
| Console Connectors | USB Type-A |
| Computer Connections | 4 Ports |
| Monitor Connections | 4 Ports |
| Video Resolution | UHD 4K resolutions up to 3840x2160 @ 30 Hz |
| PC Selection | Push Buttons |
| Monitors Supported | DP 1.2 |
| Temperature | Operating Temperature: 32° to 104° F; 0° to 40° C Storage Temperature: "-4° to 140° F; -20° to 60° C" |
| Humidity | 0-80% RH, non-condensing |
| Audio Features | with Audio |
| Power Features | Power Requirements: 35W Max Internal AC Input Voltage: 100 to 240V AC |
| USB Features | with USB support |
| Features | Outstanding security - Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for peripheral-sharing devices. Discrete processing paths - Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports. Unique NUM Lock, CAPS Lock and Scroll Lock indicators - While the Cybex™ series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use. |
| Dimensions | 1.70" x 13.70" x 5.00" |
| Weight | 3.20 lbs. |
| Shipping weight | 2.27 kg |
| Package size | 417 × 254 × 76 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
What cables and accessories come with the Vertiv SC840D-001, and which ones must be purchased separately?
The switch ships as the main unit only; four DisplayPort cables and four USB cables for the computer links are not included and must be bought separately.
How do I decide between the available versions of this KVM switch?
The SC840D-001 is a single 4-port DisplayPort model with audio and CAC support; no other port-count or video-interface versions are offered for this part number.
What does the 3840 x 2160 @ 30 Hz rating mean when the switch is connected to my monitors?
Each of the four ports can drive a single DisplayPort 1.2 monitor at up to 3840 x 2160 resolution at 30 Hz, providing UHD 4K video to the shared console.
