Vertiv LV5500T-400 single-head KVM extender 4096x2160 60Hz
Single-head KVM extender transmits 4096x2160 60Hz video over CATx or fiber with USB, audio and serial support
- TypeSingle head KVM (keyboard, video, mouse) extender
- Console Connectors4 x Tri-color status LEDs DisplayPort in and local pass-thro
- Video Resolution4096x2160 @ 60Hz
- LED Indicators4 x Tri-color status LEDs
- TemperatureStorage Temperature: -10°C to 50°C/14°F to 122°F Operating T
- HumidityHumidity: 0% to 80% (non-condensing)
- 4K video at 60 Hz via DisplayPort input and local pass-through
- Driver-free operation across all major operating systems
- Extends keyboard, video, mouse and audio over CATx or fibre
- Compact 186 mm × 39 mm × 148 mm form factor fits tight spaces
- Wide 100 – 240 VAC input with 12 VDC 18 W supply for global use
Single-head KVM extender for 4K workstations
The Vertiv LV5500T-400 transmits keyboard, video, mouse and analog audio signals from a single DisplayPort source at 4096x2160 60Hz. It connects over CATx at 5Gb/s or fiber at 10Gb/s using ultra-low latency adaptive compression. No drivers are required and the unit is compatible with all known operating systems. Two USB2.0 Type B ports and an RJ12 serial port complete the console interface.
Plug-and-play installation with status LEDs

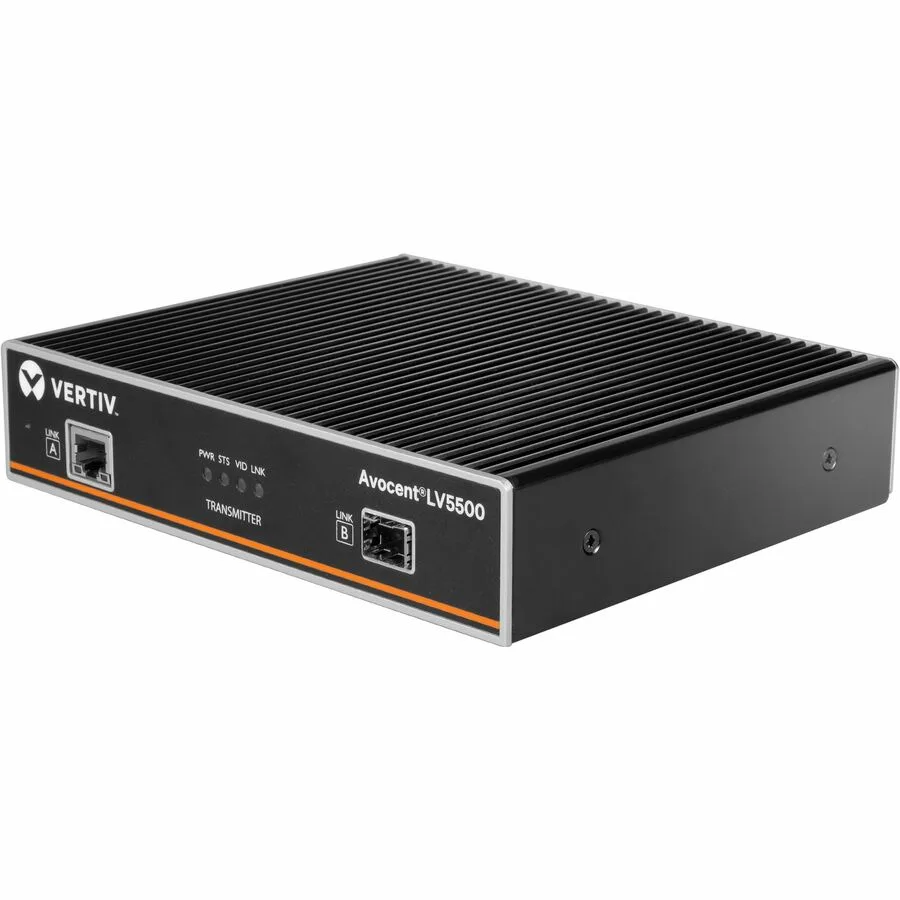

The transmitter installs without software or on-site configuration. Four tri-color status LEDs provide immediate link and power feedback. A local DisplayPort pass-through allows a monitor to remain at the source. The 12 VDC 18W power supply accepts 100 – 240 VAC at 47/63Hz. Fiber deployments require an SFP+ module, which is not included.
Extends 4K60 video with USB and audio headroom
The link comfortably handles 4096x2160 at 60Hz with two channels of 24-bit 96kHz PCM audio and USB2.0 peripheral traffic. Bandwidth is limited to 5Gb/s over copper or 10Gb/s over fiber, so higher resolutions, refresh rates or USB3.0 speeds are not supported. Operating temperature range is 0°C to 40°C with 0% to 80% non-condensing humidity.
Highlights
- 4K video at 60 Hz via DisplayPort input and local pass-through
- Driver-free operation across all major operating systems
- Extends keyboard, video, mouse and audio over CATx or fibre
- Compact 186 mm × 39 mm × 148 mm form factor fits tight spaces
- Wide 100 – 240 VAC input with 12 VDC 18 W supply for global use
Specifications
| Brand | Vertiv |
|---|---|
| Series | LV5500 |
| Model | LV5500T-400 |
| Part Number | LV5500T-400 |
| Type | Single head KVM (keyboard, video, mouse) extender |

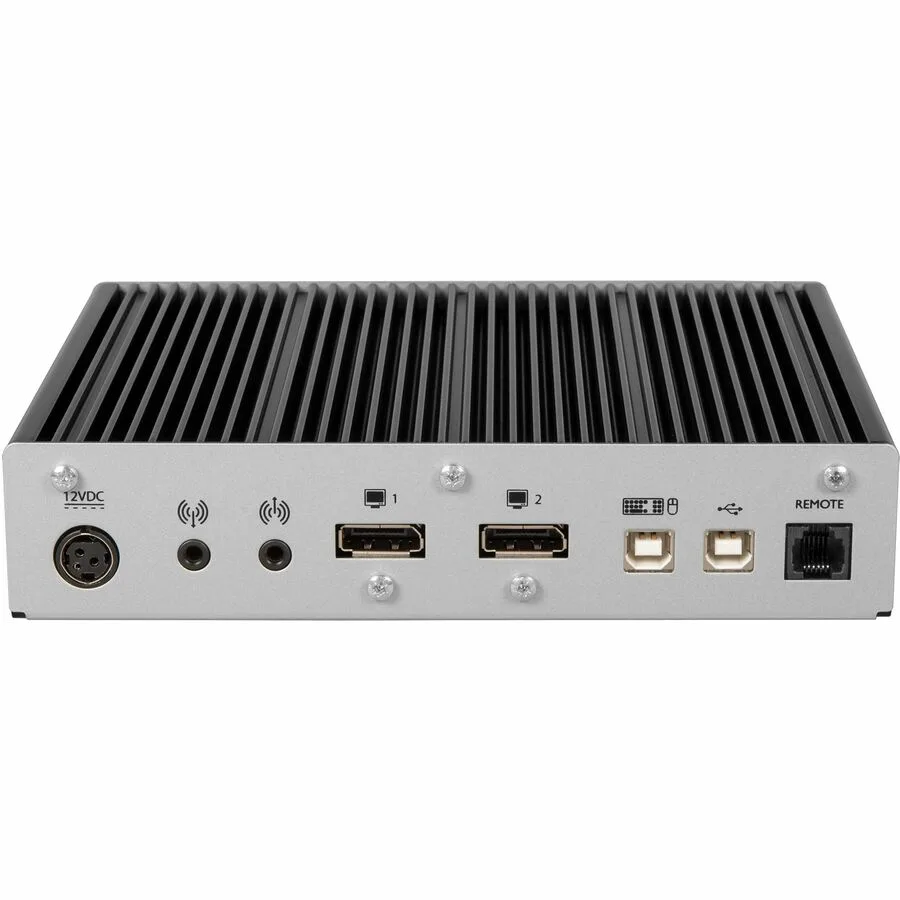

| Console Connectors | 4 x Tri-color status LEDs DisplayPort in and local pass-through out 2 x USB2.0 Type B Line in and out analog audio RJ12 serial port RJ45 and SFP+ ports |
| Video Resolution | 4096x2160 @ 60Hz |
| LED Indicators | 4 x Tri-color status LEDs |
| Temperature | Storage Temperature: -10°C to 50°C/14°F to 122°F Operating Temperature: 0°C to 40°C/32°F to 104°F |
| Humidity | Humidity: 0% to 80% (non-condensing) |
| Power Features | 100 – 240 VAC, 47/63Hz 12 VDC 18W output from power supply unit |
| USB Features | USB or Stereo (Line In, Line Out) |
| Features | Single-head keyboard, video, and mouse extender Compatible with all known operating systems No drivers required 5Gb/s CATx or 10Gb/s fiber with ultra-low latency adaptive video stream compression USB: Up to two channels of 24-bit, 96kHz sampled PCM audio |
| Dimensions | 186mm/7.32” , 39mm/1.54” , 148mm/5.83” |
| Weight | 2.84 lbs |
| Shipping weight | 1.91 kg |
| Package size | 262 × 236 × 143 mm |
Questions about this item
How can I confirm the LV5500T-400 transmitter is sending a 4096x2160 60Hz signal correctly?
The four tri-color status LEDs on the front panel show link state, video activity and USB status; a steady green video LED means the 4096x2160 60Hz stream is passing over CATx or fiber without errors.
Which cables and accessories come with the LV5500T-400 and what must I source separately?
The box includes the transmitter unit, a 12 VDC 18W power supply and a quick-start guide; you must supply DisplayPort cables, USB 2.0 Type B cables, analog audio leads, CATx or SFP+ fiber patch cords and the matching receiver unit.
Should I choose the RJ45 CATx path or the SFP+ fiber path for my LV5500T-400 installation?
Use RJ45 with CATx cable for runs up to 100 metres at 5 Gb/s; switch to SFP+ fiber modules for distances beyond 100 metres at 10 Gb/s with the same ultra-low latency adaptive compression.
