Vertiv
Vertiv Avocent SV220-001 2-Port DVI-I KVM Switch
Control two computers from one keyboard, monitor and mouse with DVI-I video up to 3840x2160 at 30 Hz and independent audio switching
- TypeDVI, USB
- Console ConnectorsUSB Type-A
- Computer Connections2 Ports
- Video ResolutionUHD 4K - 3840X2160 pixels @ 30 Hz (via DVI to HDMI cable) DV
- PC SelectionPush Buttons
- Monitors Supported1 x DVI-I (HDMI and VGA with adapter)
- Control two computers from one keyboard, monitor and mouse
- UHD 4K at 30 Hz via DVI-to-HDMI or 2560x1600 at 60 Hz via DVI dual-link
- Instant switching with zero delay through keyboard and mouse emulation
- Independent audio and USB switching lets you freeze sound while working elsewhere
- Compact 1.40" x 7.00" x 2.40" design weighing 1.00 lbs
Two-computer desktop KVM
The Avocent SV220-001 lets one operator control two computers from a single USB keyboard, mouse and DVI-I monitor. Front-panel push buttons give instant system selection without software or hot-key sequences. It targets offices and small server rooms where desk space and peripheral count must stay minimal.
DVI-I video with audio and USB

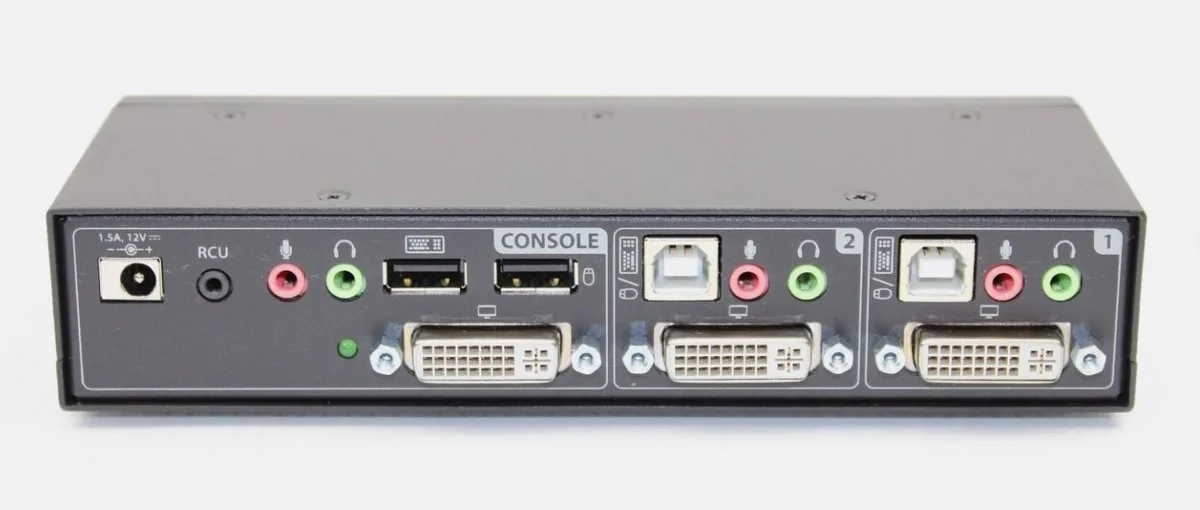

A single DVI-I console port accepts native DVI dual-link at 2560x1600 60 Hz or, with a passive adapter, HDMI at 3840x2160 30 Hz and VGA at 2048x1536. Independent audio and USB switching means sound stays on one machine while the keyboard and mouse move to the other. The unit draws up to 35 W from 100-240 V AC and operates from 0 to 40 °C.
Managed copy-paste and emulation

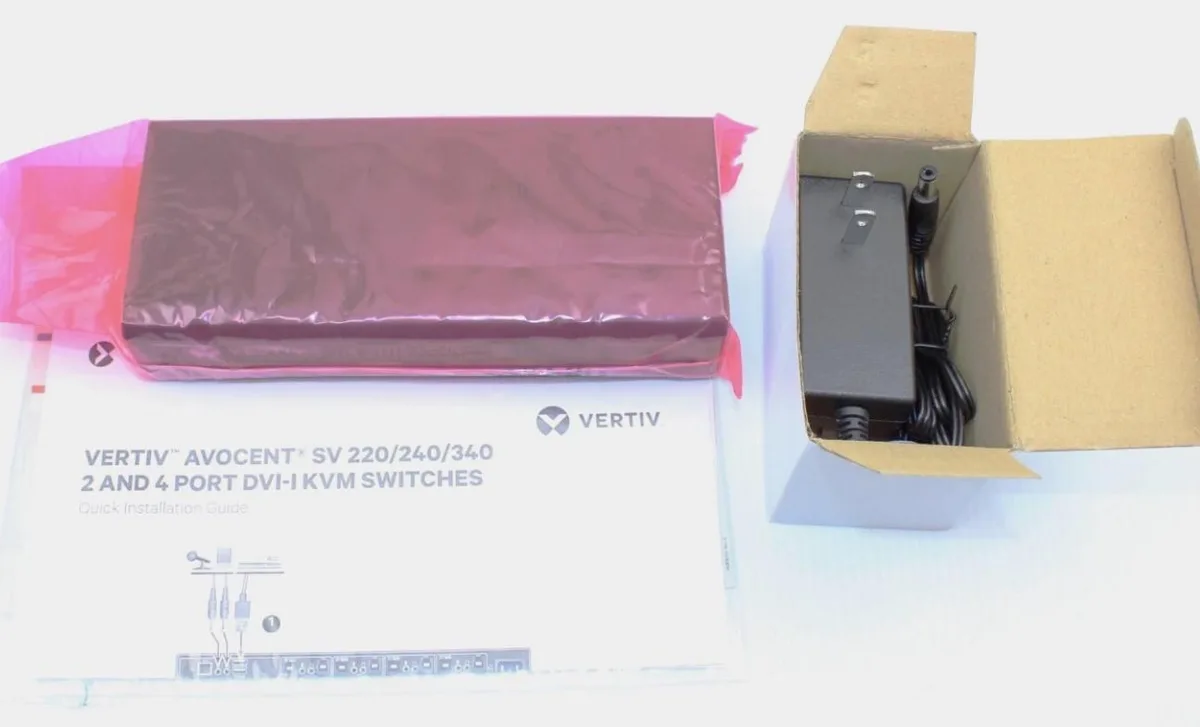

Built-in managed copy and paste moves text and files between the two connected systems without network shares. Keyboard and mouse emulation maintains enumeration on both ports, eliminating re-detection lag when switching. The compact 1.4 x 7.0 x 2.4 inch metal chassis weighs 1.0 lb and includes all required cables for immediate deployment.
Highlights
- Control two computers from one keyboard, monitor and mouse
- UHD 4K at 30 Hz via DVI-to-HDMI or 2560x1600 at 60 Hz via DVI dual-link
- Instant switching with zero delay through keyboard and mouse emulation
- Independent audio and USB switching lets you freeze sound while working elsewhere
- Compact 1.40" x 7.00" x 2.40" design weighing 1.00 lbs
Specifications
| Brand | Avocent |
|---|---|
| Model | SV220-001 |
| Type | DVI, USB |
| Console Connectors | USB Type-A |
| Computer Connections | 2 Ports |
| Video Resolution | UHD 4K - 3840X2160 pixels @ 30 Hz (via DVI to HDMI cable) DVI dual-link - 2560X1600 pixels @ 60 Hz (via DVI cable) VGA - 2048X1536 pixels |
| PC Selection | Push Buttons |
| Monitors Supported | 1 x DVI-I (HDMI and VGA with adapter) |
| Temperature | Operating Temperature: 32° to 104° F; 0° to 40° C Storage Temperature: "-4° to 140° F; -20° to 60° C" |
| Humidity | 0-80% RH, non-condensing |
| Audio Features | with Audio |
| Power Features | Power Requirements: 35W Max Internal AC Input Voltage: 100 to 240V AC |
| USB Features | with USB support |
| Features | Advanced video support for resolutions up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible. Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format. Independent audio and USB switching lets users freeze audio and USB 3.0 peripherals while simultaneously working on a different system. Instant monitor, mouse and keyboard switching via emulation assures zero delay |
| Dimensions | 1.40" x 7.00" x 2.40" |
| Weight | 1.00 lbs. |
Questions about this item
What video resolution does the DVI-I port support at 30 Hz?
The DVI-I console port delivers UHD 4K at 3840×2160 pixels @ 30 Hz when used with a DVI-to-HDMI cable.
What are the physical dimensions and weight of the switch?
The unit measures 1.40" × 7.00" × 2.40" and weighs 1.00 lbs.
How do you switch between the two connected computers?
Press the front-panel push buttons to change the active PC; the switch uses keyboard and mouse emulation for zero-delay transitions.
