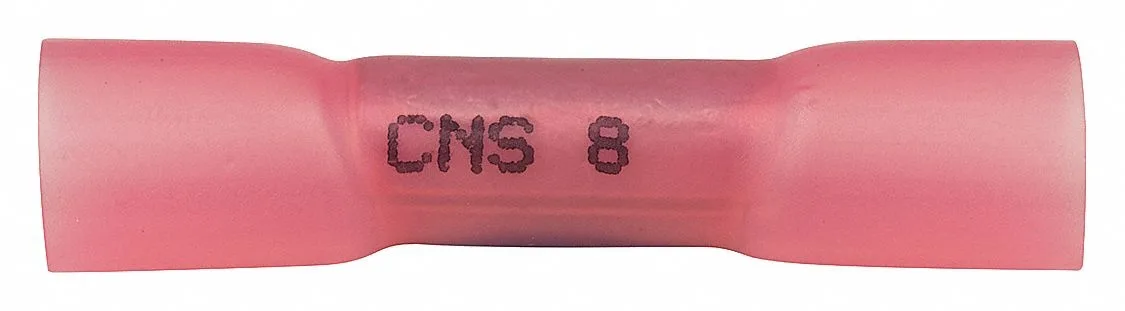

Ten pink nylon polyolefin butt splice connectors in a row

Velvac

Velvac 055068-10 Butt Splice Wire Connector 8 AWG Pink Nylon Polyolefin 10 Pack

SKU CH-SYHQ-PPE90

Eight-gauge butt splice connectors with pink nylon-polyolefin insulation, crimp termination and 600-volt rating, supplied in a 10-pack

  • TypeElectrical Connectors
  • 8 AWG splice ready for 600 V systems
  • Nylon and polyolefin insulation rated to 221 °F
  • Brazed seam and copper barrel for strong crimp
  • UL approved and RoHS compliant for code work
  • Ten connectors in one pack for multiple jobs

8 AWG Butt Splice Connector Pack

This pack contains ten crimp-style butt splice connectors rated for 8 AWG wire. Each connector uses a copper barrel with a brazed seam and a pink nylon polyolefin insulation sleeve. The insulation is rated for up to 221 degrees Fahrenheit and 600 volts. UL approval and RoHS compliance are confirmed.

Suited for 8 AWG automotive and marine wiring

These splices are designed for single-size 8 AWG conductors in crimp-termination applications. They are not suitable for smaller or larger wire gauges, solder-only joints, or high-vibration environments that require sealed heat-shrink sleeves. Installers needing a different wire range or adhesive-lined insulation should select another product.

Verify wire gauge and crimp tool compatibility

Confirm that all conductors are 8 AWG before ordering. Ensure your crimping tool accepts the .178 inch barrel inside diameter and can produce a secure crimp on a brazed-seam copper barrel. Check that the 1.85 inch overall length fits within your wiring harness or junction box.

Highlights

  • 8 AWG splice ready for 600 V systems
  • Nylon and polyolefin insulation rated to 221 °F
  • Brazed seam and copper barrel for strong crimp
  • UL approved and RoHS compliant for code work
  • Ten connectors in one pack for multiple jobs

Specifications

BrandVELVAC
TypeElectrical Connectors

Questions about this item

What wire gauge is required for the 8 AWG butt splice connectors?

These connectors accept 8 AWG wire only; the minimum and maximum wire size are both 8 AWG.

Will the pink nylon insulation hold up near a 221 °F engine bay?

Yes, the polyolefin insulation is rated to 221 degrees F and is UL approved for that temperature.

How can I confirm a solid crimp on each of the 10 connectors?

After crimping, tug the wire firmly; a proper joint will not pull free and the barrel inside diameter of .178 in should fully surround the conductor.
