Silver anodized aluminum M.2 NVMe enclosure with USB-C cable

Vantec

Vantec NST-205C3-SG M.2 NVMe drive enclosure

SKU CH-CXZM-WF7B9 MPN NST-205C3-SG

Tool-free enclosure turns an M.2 NVMe drive into a USB 3.1 Gen 2 Type-C portable drive with a hardware read-only switch and anodized-aluminium heatsink

  • ColorSilver
  • SizeM.2 (Length support 2230, 2242, 2260, 2280)
  • TypeEnclosure
  • AC AdapterNo
  • MaterialAnodized Aluminum with Heat Sink
  • Internal Interface1 x M.2 (NVMe , M-Key)
  • USB 3.1 Gen 2 enables rapid file transfers
  • Write-protect switch blocks unauthorised changes to data
  • Anodized aluminium heatsink keeps the drive cool under load
  • Supports M.2 2230, 2242, 2260 and 2280 NVMe modules
  • Bus-powered design needs no external power supply

Portable NVMe Enclosure

The Vantec NST-205C3-SG is a bus-powered M.2 NVMe enclosure that connects to a host via USB 3.1 Gen 2 Type-C. Its anodised aluminium shell acts as a heatsink for the installed module. The package includes a USB-C to USB-C cable, thermal pad, heat-transfer plate, screwdriver and mounting screws. It supports module lengths 2230, 2242, 2260 and 2280 with an M-key interface.

Who It Suits

Travellers and technicians who want a compact, driver-free way to read or write a single NVMe module on Windows 10, Mac OS X 10.10 or later, Chrome OS or Linux. A physical switch sets read-only mode to guard data against modification. Buyers who need to house more than one module at a time should look at multi-bay alternatives. The enclosure has no fan and relies on passive cooling alone.

M-Key Only Constraint

The internal slot accepts M.2 NVMe modules with an M-key notch only; B-key or B+M-key drives will not fit. This single specification decides whether your existing SSD is compatible. Supported lengths are 2230, 2242, 2260 and 2280. No external power adapter is required.

Highlights

  • USB 3.1 Gen 2 enables rapid file transfers
  • Write-protect switch blocks unauthorised changes to data
  • Anodized aluminium heatsink keeps the drive cool under load
  • Supports M.2 2230, 2242, 2260 and 2280 NVMe modules
  • Bus-powered design needs no external power supply

Specifications

BrandVANTEC
ModelNST-205C3-SG
ColorSilver
SizeM.2 (Length support 2230, 2242, 2260, 2280)
TypeEnclosure
AC AdapterNo
MaterialAnodized Aluminum with Heat Sink
Internal Interface1 x M.2 (NVMe , M-Key)
External Interface1 x USB 3.1 Gen 2 USB-C
Number of Bay1
FanNo
PowerBus-powered, no external power supply needed
SpecificationsM.2 size: Length support 2230, 2242, 2260, 2280
M.2 Support: M.2 NVMe with "M" Key Only
USB cable connector: USB-C to USB-C
USB cable length: 300mm / 11.8 inches
Operating Systems SupportedMac OS X 10.10 or higher, Windows 10, Latest Chrome OS, Latest Linux kernel

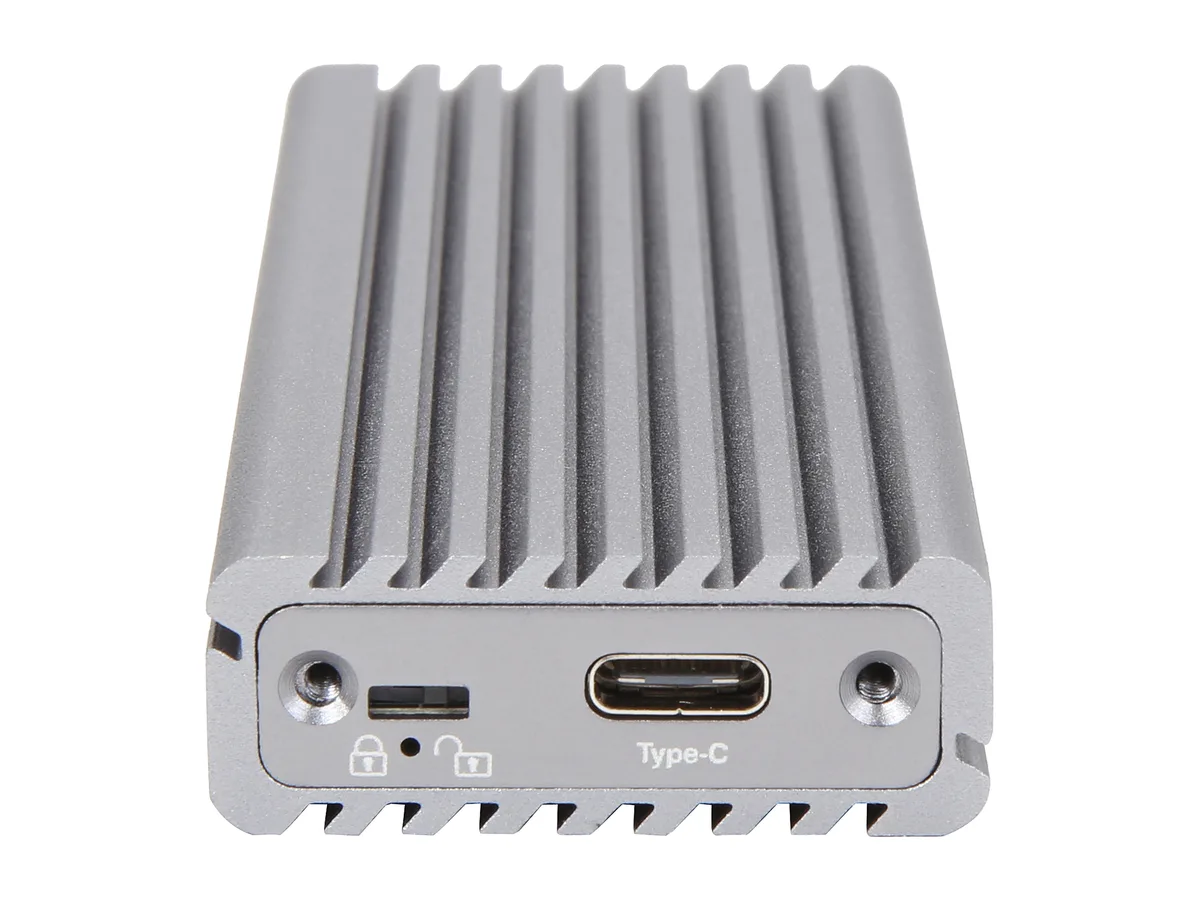

USB Type-C port
Latest OS support for USB-C
M.2 NVMe module with "M" Key only
FeaturesDesign For Ultra-Fast NVMe module
Latest NVMe Storage solution with USB 3.1 Gen2 for Speed
Write Protect Function
Switch to Read Only to Protect against Virus
Anodized Aluminum to Keep Cool
Strong, durable and heat dissipation properties
Small Pocket size
104x40x15mm and Fit Big Capacity NVMe
USB 3.1 Gen 2 with USB-C interface
Next Gen USB, designed to very fast
LED Clear indication for protected data
Red for Read Only, White for Read/Write
Design for Multi-OS compatibility
Windows 10, Chrome OS, OS X 10.10 or Better, Latest Linux Kernel
Support multi-size M.2; USB-C to C cable
Modul
Dimensions104 x 40 x 15 mm / 4.1 x 1.6 x 0.6 inches
Weight142 grams / 5.0 oz.
Package ContentsM.2 NVMe SSD to USB 3.1 Gen 2 Type C Enclosure, USB-C to USB-C cable, Screw Driver, Heat Transfer Plate, Thermal Pad, Screws set, Quick Guide
Shipping weight0.16 kg
Package size135 × 89 × 38 mm

Questions about this item

Will this enclosure work with my older laptop that only has USB-A ports?

The enclosure uses a USB-C connector and includes a USB-C to USB-C cable; you will need a USB-C to USB-A adapter or cable to connect to a USB-A port.

How do I confirm the enclosure is running at USB 3.1 Gen 2 speed after I install my NVMe drive?

Check the operating system device manager or system report for a 10 Gbps link speed, and verify sustained transfer rates approach the drive's rated maximum.

Does the package include a thermal pad and screwdriver for installing a 2280 NVMe module?

Yes, the box contains a thermal pad, heat transfer plate, screwdriver, screw set and quick guide along with the enclosure and USB-C cable.
