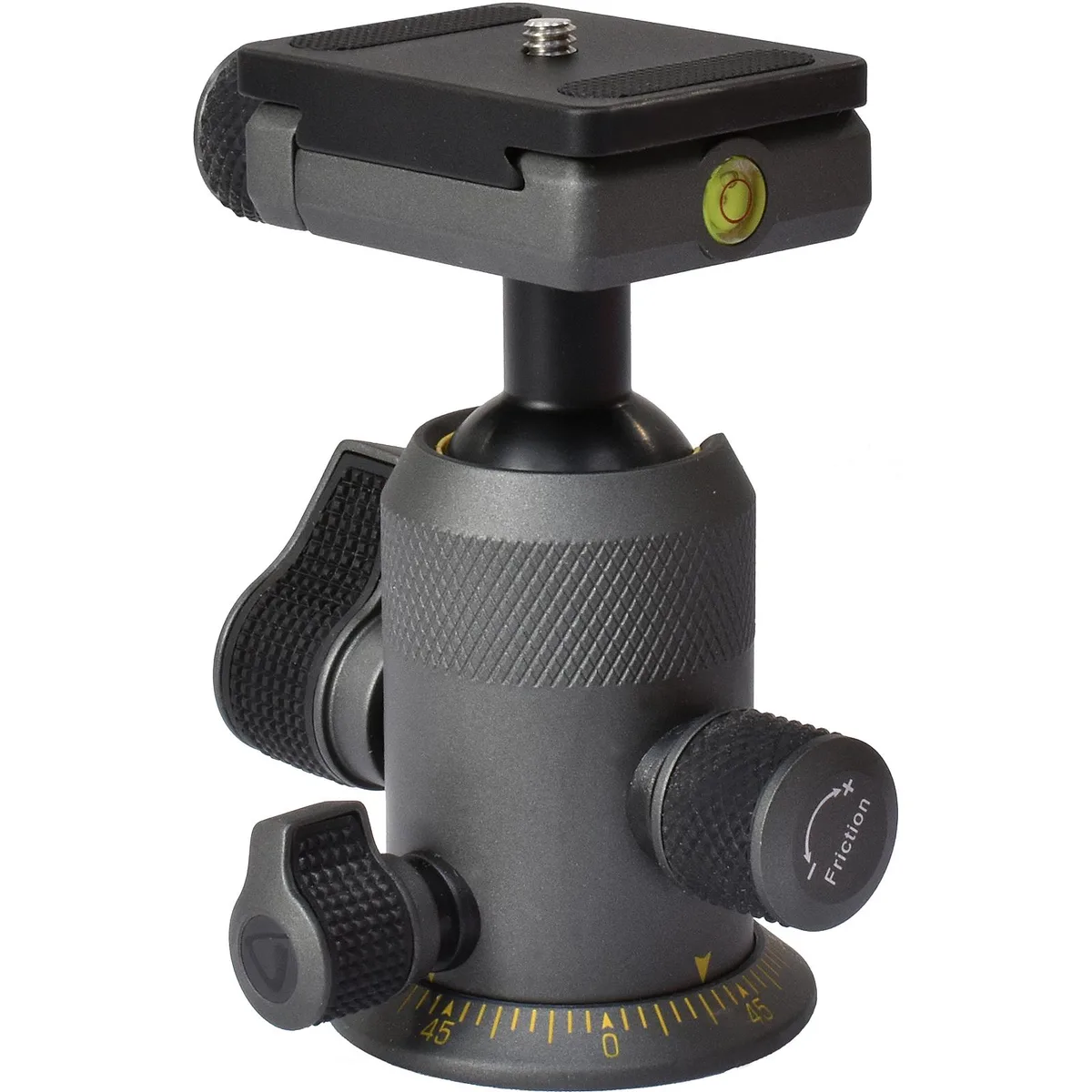

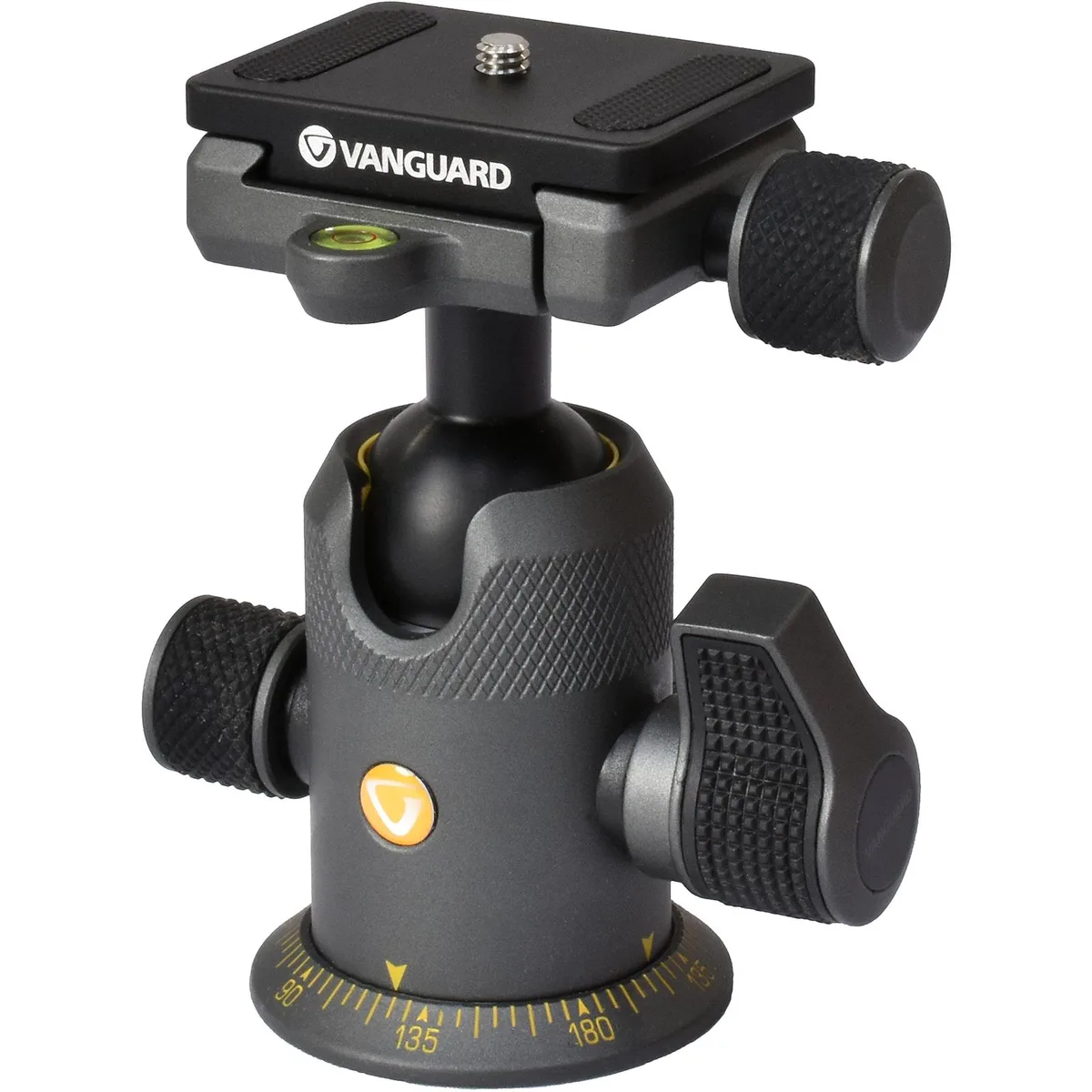

Aluminum ball head with anodized finish, quick-release plate and two bubble levels

VANGUARD

VANGUARD Alta BH-100 Aluminum Ball Head 22 lb 2 Bubble Levels

SKU CH-KB80-DMCGX

A lightweight aluminum ball head supports 22 lb loads and includes two bubble levels for precise camera positioning

  • PartBall Head
  • TypeAccessory
  • Max Load22.0 lbs
  • Max Height4.5
  • Min Height4.5
  • Head MountBall Head
  • Supports 22 lb payload for heavy camera kits
  • Aircraft aluminum body weighs 470 g for easy transport
  • Arca-Swiss compatible QR plate with safety pin
  • Dual bubble levels ensure precise horizon alignment
  • Oxidization anodized surface resists wear and corrosion

Ball Head for Tripods

The Vanguard Alta BH-100 is an aluminum ball head rated for a 22 lb maximum load. It mounts on a standard 3/8"-16 thread and includes an Arca-Swiss compatible quick-release plate with a built-in safety pin. The 55mm base uses dual reducer bushings for broad tripod compatibility.

Precision Shooters and Multi-Gear Users

Photographers who need fine friction control for exact composition will benefit from the independent micro-adjustment knob. Buyers who require a leveling base, panoramic rotation scale, or a load rating above 22 lb should look at a different head.

Quick Setup with Standard Threads

Installation is straightforward: thread the head onto any 3/8"-16 tripod, attach the supplied QS-60 V2 plate to the camera, and lock it into the clamp. The most common issue is forgetting to engage the safety pin, which can allow the plate to slide out under tilt.

Highlights

  • Supports 22 lb payload for heavy camera kits
  • Aircraft aluminum body weighs 470 g for easy transport
  • Arca-Swiss compatible QR plate with safety pin
  • Dual bubble levels ensure precise horizon alignment
  • Oxidization anodized surface resists wear and corrosion

Specifications

BrandVANGUARD
ModelAlta BH-100
PartBall Head
TypeAccessory
Max Load22.0 lbs
Max Height4.5
Min Height4.5
Head MountBall Head
MaterialAluminum
Pan2 bubble levels
TiltOxidization anodized surface
QR Plate SuppliedYes
FeaturesAircraft aluminum for lightweight and long-lasting performance
Weight1.20

Questions about this item

What thread size must my tripod have to mount the Alta BH-100 ball head?

The ball head uses a 3/8"-16 tripod mount thread and includes dual 3/8 to ¼ reducer bushings for compatibility with different tripod studs.

Will the supplied QS-60 V2 plate fit my existing Arca-Swiss clamp?

Yes, the 38 mm Arca-compatible quick-release plate works with any Arca-Swiss type clamp and includes a 1/4" D-ring screw for camera attachment.

How do I verify the head is level before shooting?

Use the two built-in bubble levels on the panning base to confirm the head is perfectly level in both axes after mounting and tightening.
