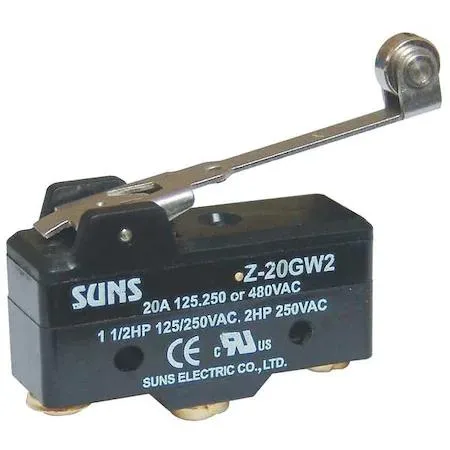

Value Brand Snap Action Switch Hinge Roller Lever Actuator SPDT 20 A
A snap-action switch with hinge roller lever actuator, SPDT contact form and 20 A rating at 480 V, screw terminals and 1.00 in mounting centres
- Reliable switching up to 20 A at 480 V
- SPDT contact form enables versatile circuit control
- Hinge roller lever provides smooth mechanical actuation
- 91 in lever length suits precise positioning needs
- Compact 0.69 in depth fits tight panel spaces
Snap Action Switch for Industrial Control
This ZORO SELECT snap action switch uses a hinge roller lever actuator to open and close a single pole double throw circuit. It is built for machinery and machine shop applications where a reliable mechanical trigger is required. The unit ships new and mounts on one inch centers.
20 A at 480 V AC Contact Rating
The switch carries a 20 ampere rating at 480 volts AC, which is the decisive figure for selecting this part. It uses screw terminals for secure electrical connection. The SPDT contact form provides both normally open and normally closed paths in one device.
1.91 Inch Lever with Compact Body
The 1.91 inch lever actuator gives enough reach for cam or door actuation while the body measures 2.02 by 1.94 by 0.69 inches. This footprint fits tight panels and enclosures. It handles standard industrial control duties but lacks the higher amperage or sealed construction needed for heavy motor starting or harsh wash down environments.
Highlights
- Reliable switching up to 20 A at 480 V
- SPDT contact form enables versatile circuit control
- Hinge roller lever provides smooth mechanical actuation
- 91 in lever length suits precise positioning needs
- Compact 0.69 in depth fits tight panel spaces
Specifications
| Brand | ZORO SELECT |
|---|
Questions about this item
What does the 20 A @ 480 V rating mean when the switch is installed in a machine?
The switch contacts are rated to carry up to 20 amps at 480 volts AC, so the circuit it controls must not exceed those limits.
How does the screw-terminal connection affect wiring in practice?
Screw terminals accept stripped wire ends tightened by hand or tool, giving a secure connection without soldering or special crimp tools.
What clearance is needed to mount the switch on a panel?
The switch mounts on 1.00 in centers and measures 1.94 in wide, 2.02 in high and 0.69 in deep, so the cut-out and surrounding space must accommodate those dimensions.
