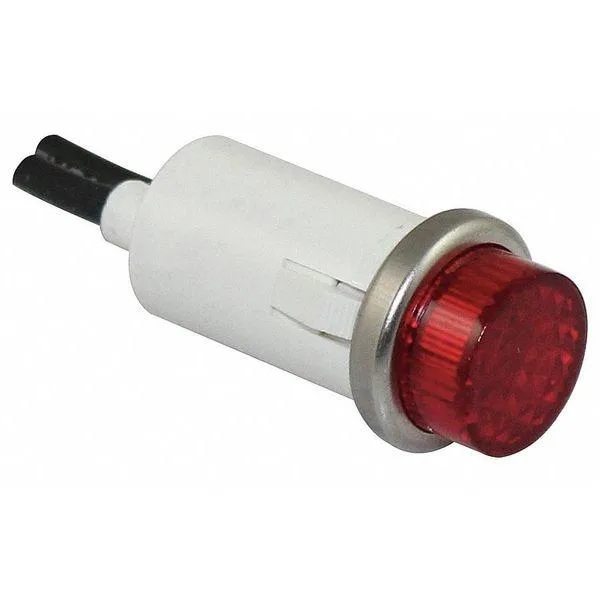

Round red raised panel light with stainless steel bezel and wire leads

Value Brand

Value Brand Raised Panel Light Red 24 V AC/DC fluid

SKU CH-PHF4-KSJ2Z

A 24 V AC/DC raised panel indicator light with a red polycarbonate lens, stainless steel bezel, 40 mA draw and 25,000-hour rated life

  • Reliable 24 V AC/DC operation for consistent signalling
  • 40 mA current draw keeps energy use low
  • 25 000 hour average life reduces replacement frequency
  • CSA and UL listed for verified safety compliance
  • IP40 rated nylon body with polycarbonate lens resists dust ingress

Raised Panel Light 24 V AC/DC

This raised panel indicator light operates on 24 V AC or DC power and features a red polycarbonate lens with a stainless steel bezel. The round nylon body mounts in a 1/2 in diameter cut-out and connects via 6 in wire leads. It is UL listed and CSA certified for industrial control panels.

Upgrade from basic indicators

The unit replaces simple pilot lights that lack sealed construction or certified ratings. Its IP40 rating and NEMA 1 enclosure suit indoor machinery where dust ingress is a concern. The 40 mA current draw and 25,000 hr average life reduce maintenance cycles on continuous-run equipment.

Check mounting and voltage before ordering

Verify the panel thickness falls between 0.030 in and 0.093 in to ensure a secure fit. Confirm the control circuit supplies 24 V AC or DC, as other voltages are not supported. The IP40 rating is not suitable for wash-down or outdoor environments.

Highlights

  • Reliable 24 V AC/DC operation for consistent signalling
  • 40 mA current draw keeps energy use low
  • 25 000 hour average life reduces replacement frequency
  • CSA and UL listed for verified safety compliance
  • IP40 rated nylon body with polycarbonate lens resists dust ingress

Specifications

BrandZORO SELECT

Questions about this item

What is the mounting hole diameter for the 1/2 in raised panel light?

The light requires a 1/2 inch mounting diameter and fits panel thicknesses from 0.030 in to 0.093 in.

How do you connect the 6 in wire leads on the 24 V AC/DC panel light?

Strip the 6 inch wire leads and connect them to a 24 V AC or DC supply; the light draws 40 mA.

When should the incandescent bulb in the 25,000 hr rated panel light be replaced?

Plan replacement around 25,000 hours of operation; the incandescent lamp is not user-serviceable without removing the unit.
