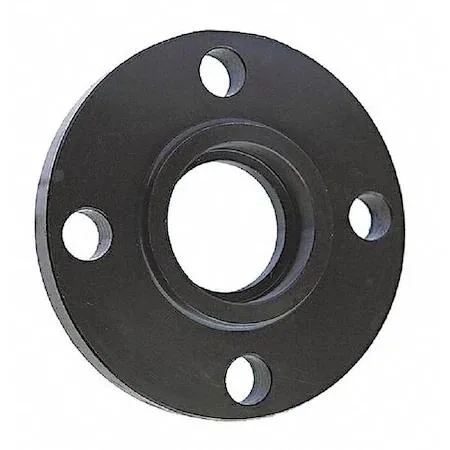

Black steel raised flange socket weld fitting with four bolt holes

Value Brand

Value Brand Flange Socket Weld Flange 2-1/2" Black

SKU CH-79SD-6FWSC

A raised-face flange for 2-1/2 inch Schedule 40 pipe with socket-weld connection, rated 150 psi at temperatures from -29 to 425 degrees Fahrenheit

  • Raised-face design ensures secure seal
  • Socket-weld connection suits Schedule 40 pipe
  • A105 steel construction handles 150 psi pressure
  • Operates reliably from -29 °F to 425 °F
  • Four bolt holes on 5-1/2 in circle simplify alignment

Product Identity

The Value Brand Flange Socket Weld Flange is a 2-1/2 inch nominal pipe size fitting designed for welded pipeline assemblies. It suits installers and maintenance teams who need a raised-face steel flange rated for Class 150 service.

Installation Notes

The flange connects by socket welding to Schedule 40 pipe, requiring standard welding preparation and alignment with the 5-1/2 inch bolt circle. Misalignment of the four 3/4 inch bolt holes or incomplete weld penetration are the most common issues that lead to leaks or stress concentration.

Critical Specification

The fitting carries a maximum operating pressure of 150 psi across a temperature range of -29 to 425 degrees Fahrenheit, making this pressure-temperature envelope the decisive factor for selecting the part.

Highlights

  • Raised-face design ensures secure seal
  • Socket-weld connection suits Schedule 40 pipe
  • A105 steel construction handles 150 psi pressure
  • Operates reliably from -29 °F to 425 °F
  • Four bolt holes on 5-1/2 in circle simplify alignment

Specifications

BrandZoro Select

Questions about this item

How can I confirm the flange is sealing correctly after installation?

Perform a hydrostatic test at up to 150 psi and inspect the raised-face joint for leaks; the steel A105 body and anodized finish are rated for -29 to 425 °F operating range.

What components are included and what must be sourced separately?

The box contains the single 2-1/2 inch raised-face socket-weld flange; you must supply Schedule 40 pipe, four 3/4 inch bolts, gaskets and any required welding consumables.

Which pressure class and pipe schedule does this flange match?

It is a Class 150 flange designed for Schedule 40 pipe with a 2-1/2 inch nominal bore, 7 inch outside diameter and 5-1/2 inch bolt-circle diameter.
