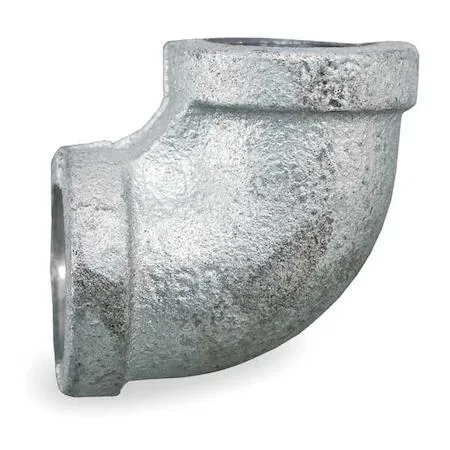

Galvanised malleable iron 90 degree elbow with threaded ends

Value Brand

Value Brand 5P803 Malleable Iron 90° Elbow 2" NPT Coupling

SKU CH-GQMQ-BP5QT

Malleable iron 90-degree elbow with 2-inch NPT threaded ends for galvanized pipe connections

  • 90° elbow redirects flow efficiently in tight spaces
  • Malleable iron construction resists cracking under pressure
  • Class 150 rating supports standard residential plumbing demands
  • Galvanised coating protects threads from corrosion damage
  • Female NPT threads enable direct connection to 2" pipe

Pipe Fitting Purpose

This malleable iron elbow connects two 2 inch NPT threaded pipes at a ninety degree angle. It suits plumbing installations that require a directional change in a galvanised system. The Class 150 rating indicates its pressure class for standard water, air or gas lines. Buyers needing a different angle or a non-threaded connection cannot use this part.

Build And Mounting

The fitting is made from galvanised malleable iron for corrosion resistance in typical plumbing environments. Both ends feature female threads with eleven and a half threads per inch to match standard NPT pipe. The ninety degree bend allows a sharp turn without additional couplings. Installers must apply thread sealant or tape to ensure a leak free joint.

Deciding Specification

The critical detail is the Class 150 pressure rating combined with the 2 inch NPT thread size. This defines the maximum service pressure and the exact pipe compatibility for the installation. Systems operating above this class or using a different thread standard require a different fitting.

Highlights

  • 90° elbow redirects flow efficiently in tight spaces
  • Malleable iron construction resists cracking under pressure
  • Class 150 rating supports standard residential plumbing demands
  • Galvanised coating protects threads from corrosion damage
  • Female NPT threads enable direct connection to 2" pipe

Specifications

BrandZORO SELECT

Questions about this item

What does the 2" NPT thread standard mean for sealing this elbow?

The 2-inch National Pipe Taper threads create a mechanical seal when tightened; applying PTFE tape or pipe dope on the male threads ensures a leak-free joint.

What clearance is needed to fit this 90-degree elbow in a pipe run?

The centre-to-face dimension is approximately 2-1/2 inches, so allow at least that radius plus the length of the adjoining pipes for a proper fit.

How should the galvanized malleable iron elbow be installed to avoid damaging the coating?

Tighten by hand then finish with a wrench on the hex flats — usually one to two turns past hand-tight — and never clamp the curved body in a vice.
