Value Brand 3/4" 316 SS Tee FNPT Class 3000

3/4" 316 SS Tee FNPT Class 3000

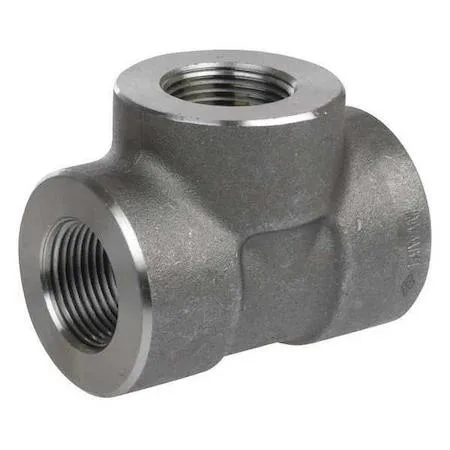

The Zoro Select 2UA34 is a 3/4-inch stainless steel tee pipe fitting made from 316 stainless steel. It provides three female FNPT connections for splitting or combining fluid or gas flow through a 90-degree branch. The fitting carries a maximum operating pressure of 3000 psi at 100°F and a steam pressure rating of 2500 psi at 350°F. It conforms to ASTM A182, ANSI/ASME B1.20.1, and ASME B16.11 standards.

Installers needing 3000 psi at 100°F

This tee suits installers who require a Class 3000 pressure rating with 316 stainless steel corrosion resistance for 3/4-inch pipe runs. It is not for systems that demand a different nominal pipe size or a lower pressure class than Class 3000. Buyers who need a fitting with male threads, a socket-weld connection, or a pressure rating above 3000 psi at 100°F should look elsewhere.

14 threads per inch thread pitch

The single specification that decides fit is the 14 threads per inch thread pitch on all three female NPT ports. This pitch must match the mating pipe threads exactly to achieve a sealed joint at the rated pressure. Confirm the existing pipe uses the same thread pitch before ordering.
