Value Brand 24C343 One-Hole Compression Lug 2 AWG 1/4 in Stud Short

One-Hole Compression Lug 2 AWG

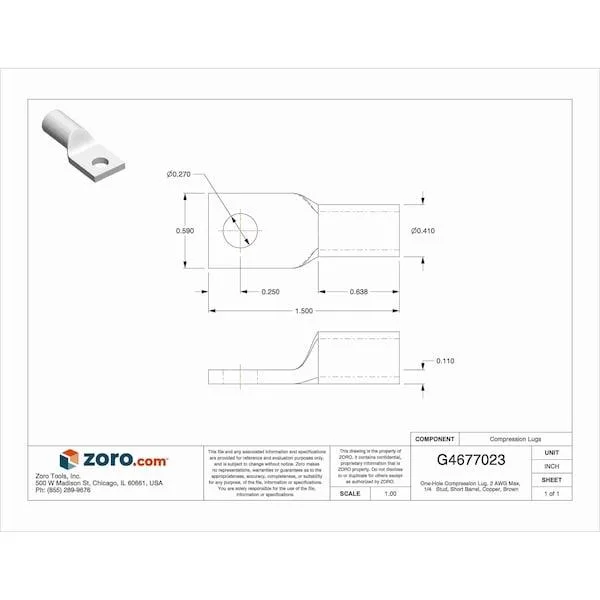

This copper lug accepts a single 2 AWG stranded copper conductor and terminates on a 1/4 inch stud. The short barrel design carries a brown colour code and die code 33 for correct crimp tool selection. It is UL listed and CSA certified for up to 600 V AC and 300 degrees F. An inspection hole allows visual confirmation of full conductor insertion.

For 2 AWG copper power connections

Installers terminating 2 AWG stranded copper wire to a 1/4 inch stud will find this lug matches the conductor and stud size exactly. The seamless barrel and single-hole tongue suit straight, compact terminations in panels or equipment. Buyers needing a larger conductor range, a different stud size, or a two-hole mounting pattern should look at other lugs in the range.

Capacity limited to 2 AWG and 600 V

The lug handles 2 AWG copper at the full 600 V AC rating with a 300 degree F temperature ceiling. The short barrel and 0.59 inch tongue width keep the footprint small for tight enclosures. It cannot accept conductors larger than 2 AWG, smaller than 2 AWG, or aluminium wire, and the single hole prevents use where dual-hole mounting is required.
