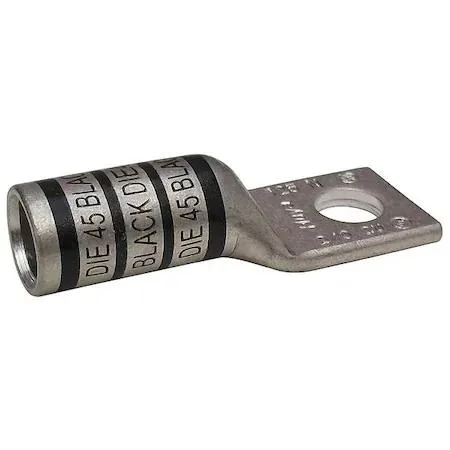

Copper compression lug, long barrel, one hole, black finish

Value Brand

Value Brand 24C329 One-Hole Compression Lug 2/0 AWG 1/2 in Stud Long

SKU CH-KYEK-TGVK3

Connects 2/0 AWG copper wire to a 1/2 in stud with a seamless crimp barrel rated to 35 kV and 257 °F

  • TypeElectrical Connectors
  • Seamless copper barrel ensures reliable conductivity
  • Long barrel design accommodates 2/0 AWG copper wire
  • 1/2 inch stud size fits standard terminal connections
  • UL Listed and CSA Certified for code compliance
  • Rated for 35 kV maximum voltage applications

2/0 AWG copper compression lug for 1/2 in stud

This seamless copper lug accepts a single 2/0 AWG stranded copper conductor and terminates on a 1/2 in stud. The straight tongue measures .83 in wide and carries a black colour code with die code 45. It is UL listed and CSA certified for use up to 35 kV and a maximum operating temperature of 257 Degrees F.

Crimp termination that frees installer from solder

The crimp style termination removes the need for soldering equipment or open flame during installation. A seamless barrel eliminates a potential leak path and provides uniform compression around the conductor. No inspection hole is present, so visual verification of wire insertion must be done before the crimp is made.

Rated for sustained 35 kV service at 257 Degrees F

The lug maintains its electrical and mechanical integrity under continuous operation at the full 35 kV rating and the maximum listed temperature of 257 Degrees F. Copper construction resists creep during long-term thermal cycling. The product contains chemicals identified under California Proposition 65 as causing cancer and reproductive harm.

Highlights

  • Seamless copper barrel ensures reliable conductivity
  • Long barrel design accommodates 2/0 AWG copper wire
  • 1/2 inch stud size fits standard terminal connections
  • UL Listed and CSA Certified for code compliance
  • Rated for 35 kV maximum voltage applications

Specifications

BrandZORO SELECT
TypeElectrical Connectors

Questions about this item

Will the 35 kV rating hold up under continuous high-current use?

The lug is UL Listed and CSA Certified for a maximum of 35 kV, so the voltage rating remains valid during sustained operation.

Does the copper barrel run hot when crimped to 2/0 AWG wire all day?

Maximum operating temperature is 257 Degrees F; proper crimping with die code 45 keeps resistance low and heat within that limit.

What crimping tool and die do I need to install this lug correctly?

Use a compression crimper matched to die code 45 for 2/0 AWG copper wire; the seamless barrel and straight tongue require that specific die.
