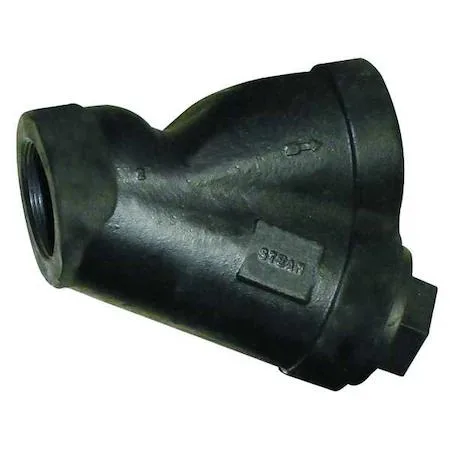

Cast iron Y strainer with stainless steel screen, female NPT ends

Value Brand

Value Brand 20H628 Y Strainer 2in FNPT Cast Iron Stainless

SKU CH-YQ8H-PNC3R

A 2-inch FNPT Y-strainer with cast-iron housing and stainless steel screen rated for 400 psi at 150°F

  • 2 in FNPT connections fit standard pipework directly
  • Cast iron body withstands 400 psi at 150 °F
  • Stainless steel 0.0625 in perforated screen traps debris
  • 1 in blow-off port allows quick cleaning without disassembly
  • Compact 7 in length suits tight installation spaces

2in FNPT Cast Iron Y Strainer

This 2in FNPT cast iron Y strainer removes debris from fluid lines in plumbing and industrial systems. It suits installers who need a compact strainer with female NPT threads on both ports. The perforated stainless steel screen filters particles down to 0.0625in without a mesh rating. The unit handles pressures up to 400 psi at 100 deg F.

1in blow-off port and stainless screen

A 1in blow-off port lets operators flush trapped solids without removing the strainer from the line. The stainless steel screen resists corrosion better than plain steel in water or chemical service. The cast iron body provides structural strength for the rated pressure. No gaskets or additional hardware are included in the package.

400 psi pressure limit at 100 deg F

The 400 psi rating applies at 100 deg F and drops at higher temperatures, so hotter fluids reduce the safe working pressure. The 7in face-to-face length and 4 3/4in height set the space needed in the piping layout. Female NPT threads require male NPT fittings or adapters for connection. The strainer is not rated for steam service beyond the stated temperature limit.

Highlights

  • 2 in FNPT connections fit standard pipework directly
  • Cast iron body withstands 400 psi at 150 °F
  • Stainless steel 0.0625 in perforated screen traps debris
  • 1 in blow-off port allows quick cleaning without disassembly
  • Compact 7 in length suits tight installation spaces

Specifications

BrandZoro Select

Questions about this item

How often will the 0.0625 in perforated stainless screen need cleaning or replacement?

Cleaning frequency depends on the debris load in your system; the stainless steel screen is corrosion resistant and can be removed through the 1 in blow-off port for routine flushing without replacing the strainer body.

What is the first pressure or temperature limit reached during continuous operation?

The housing is rated for 400 psi maximum at 100 °F, and the same 400 psi rating applies at 150 °F, so the pressure ceiling is the limiting factor before the temperature derating changes.

How much heat does the cast iron body radiate when fluid runs all day at 150 °F?

Cast iron conducts heat efficiently, so the exterior will approach the 150 °F fluid temperature during sustained flow; plan for insulation or guarding if personnel contact is possible.
