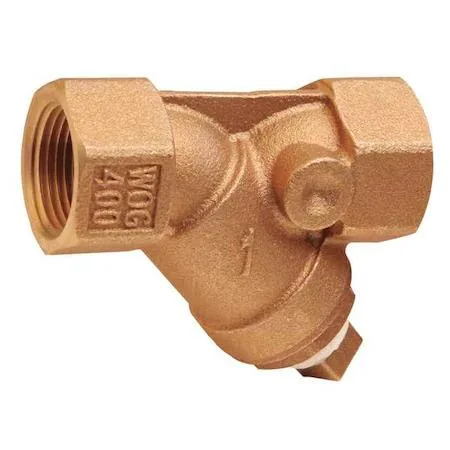

Bronze Y-strainer with female NPT ends, 2-inch size

Value Brand

Value Brand 2" Bronze Y Strainer FNPT x FNPT

SKU CH-WXWF-KX55Y

Bronze Y strainer with 20-mesh 304 stainless screen, 2-inch FNPT ports, rated 400 psi at 100 °F and 125 psi at 353 °F

  • Size2"
  • TypeOther
  • Handles 400 psi at 100 °F for high-pressure lines
  • 20-mesh 304 stainless screen traps fine debris reliably
  • Bronze Class 300 body resists corrosion in tough service
  • Female NPT x Female NPT ports simplify threaded installation
  • Rated 125 psi at 353 °F for elevated-temperature duty

Bronze Y Strainer 2" FNPT

The Value Brand 2" Bronze Y Strainer connects two female NPT threads in plumbing and hydronic systems. It is intended for installers who need inline debris protection on 2-inch pipework.

Replaces clogged or undersized strainers

Swap this unit when an existing basket or screen has corroded or when the mesh no longer matches the system's particle load. The step up is justified if the application requires Class 300 pressure rating and a 20 mesh 304 stainless screen.

Threads onto standard NPT fittings

Installation uses common pipe sealant on the female NPT ends and a wrench on the bronze housing. The 2-inch blow-off port allows cleaning without removing the body, though restricted access can make screen service difficult.

Highlights

  • Handles 400 psi at 100 °F for high-pressure lines
  • 20-mesh 304 stainless screen traps fine debris reliably
  • Bronze Class 300 body resists corrosion in tough service
  • Female NPT x Female NPT ports simplify threaded installation
  • Rated 125 psi at 353 °F for elevated-temperature duty

Specifications

BrandZORO SELECT
Size2"
TypeOther

Questions about this item

What pipe size and thread type does the 2" bronze Y strainer need for installation?

The strainer uses 2-inch female NPT threads on both ports, so it threads directly onto matching male NPT pipe ends.

Which way should the strainer body be oriented during installation, and what is the common mistake?

Install with the Y branch pointing downward so debris collects in the screen; the frequent error is mounting it horizontally or upside-down, which prevents proper blow-off.

When and how should the 304 stainless steel 20-mesh screen be cleaned or replaced?

Shut off flow, remove the blow-off cap, and flush or brush the screen; replace it if mesh is torn or corrosion appears on the 304 stainless material.
