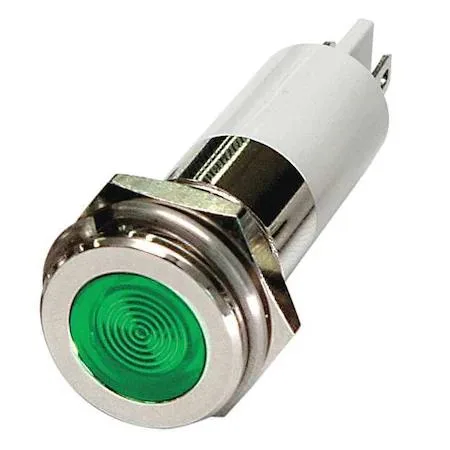

Small round green LED indicator light with chrome bezel 12mm mount

Value Brand

Value Brand 12mm Green 12VDC Indicator Light

SKU CH-89A2-PDN3P

12 mm panel-mount LED indicator with green light, 12 V DC supply and IP40 rating

  • Engine BrandZORO SELECT
  • Engine Size12mm Mounting dia
  • Green LED indicator for clear status signalling
  • 12 VDC operation suits low-voltage panels
  • 12 mm mounting diameter fits standard cut-outs
  • IP40 rating protects against solid particles
  • 100 000 hour average life reduces replacement frequency

12 mm green 12 V DC indicator light

This 12 mm panel-mounted indicator light operates at 12 V DC and draws 20 mA. It provides a green LED signal for industrial control panels and automotive electrical systems. The brass-plated chrome bezel and ABS housing suit flush mounting in panels up to 0.160 in thick. A 0.11 in male quick-disconnect terminal simplifies wiring.

Installation and common issues

The 12 mm mounting diameter fits a standard panel cut-out and secures with a threaded body. The quick-disconnect terminal accepts a matching female crimp connector for tool-free connection. IP40 rating protects against solid objects but not water ingress, so outdoor or wash-down environments require additional sealing. Average life is rated at 100 000 hours under normal conditions.

Practical limits of 12 V DC LED indicators

The 12 V DC supply must be regulated; voltage spikes can reduce the 100 000 hour lifespan. IP40 offers no protection against moisture, limiting use to dry indoor cabinets. Current draw of 20 mA per light adds up in large arrays, so total circuit load must be calculated. The product carries a California Proposition 65 warning for cancer and reproductive-harm chemicals.

Highlights

  • Green LED indicator for clear status signalling
  • 12 VDC operation suits low-voltage panels
  • 12 mm mounting diameter fits standard cut-outs
  • IP40 rating protects against solid particles
  • 100 000 hour average life reduces replacement frequency

Specifications

Engine BrandZORO SELECT
Engine Size12mm Mounting dia

Questions about this item

How do I confirm the 12 V DC indicator is working once installed?

Apply 12 V DC power and verify the green LED illuminates; the unit draws 20 mA and is rated for 100 000 hours average life.

What comes with the indicator light and what must I source separately?

The package includes the flush-mount LED with brass-plated chrome bezel and 0.11 male quick-disconnect terminals; you supply the 12 V DC power source and mating connectors.

Which specification should I match when choosing this model for my panel?

Select this unit when you need a 12 mm mounting diameter, IP40 rating, cRUus and RoHS compliance, and a maximum panel thickness of 0.160 in.
